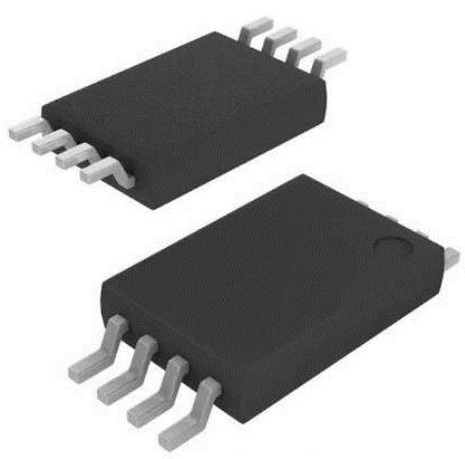

RS622AXQ

RS622A 7MHz, Rail-to-Rail I/O CMOS Operational Amplifier FEATURES DESCRIPTION • HIGH GAIN BANDWIDTH:7MHz • RAIL-TO-RAIL INPUT AND OUTPUT 0.7mV Typical Vos • INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V • SUPPLY RANGE: +2.5V to +5.5V • SPECIFIED UP TO +125°C The RS622A families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (7MHz) and slew rate of 3.7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS622A families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V. APPLICATIONS • SENSORS • PHOTODIODE AMPLIFICATION • ACTIVE FILTERS • TEST EQUIPMENT • DRIVING A/D CONVERTERS PIN CONFIGURATIONS RS622A OUT A 1 -IN A 2 +IN A 3 V- A B 4 8 V+ 7 OUT B 6 -IN B 5 +IN B TSSOP-8 REV B.1 1 www.run-ic.com RS622A ABSOLUTE MAXIMUM RATINGS (1) Supply Voltage, V+ to V-...............................................7.0V Input Terminals, Voltage (2) …………... – 0.5 to (V+) + 0.5V Current (2)…………………....….....±10mA Storage Temperature ……….…………… −65°C to +150°C Operating Temperature ……….………… −40°C to +125°C Junction Temperature................................................150°C Package Thermal Resistance @ TA = +25°C TSSOP-8……….………………………………….... 150°C/W Lead Temperature (Soldering, 10s) ……………........260°C ESD Susceptibility HBM …......................................................................5000V MM ……………………….........………………...……….400V ESD SENSITIVITY CAUTION ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be current-limited to 10mA or less. PACKAGE/ORDERING INFORMATION PRODUCT ORDERING NUMBER RS622A RS622AXQ TEMPERATURE PACKAGE LEAD RANGE -40℃~125℃ TSSOP-8 2 PACKAGE MARKING RS622A PACKAGE OPTION Tape and Reel,3000 www.run-ic.com RS622A ELECTRICAL CHARACTERISTICS (At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, and VOUT = VS/2, unless otherwise noted.) PARAMETER CONDITIONS TJ RS622A MIN TYP MAX UNIT 5.5 V 750 93 1100 uA 0.7 3 POWER SUPPLY Vs Operating Voltage Range IQ Quiescent Current/Amplifier PSRR Power-Supply Rejection Ratio 25C 25C 25C -40C to 125C Vs=2.5V to 5.5V, Vcm=(V-)+0.5V 2.5 78 72 dB INPUT Vos IB Input Offset Voltage Input Offset Voltage Average Drift Input Bias Current Ios Input Offset Current Vos TC Vcm CMRR Common-Mode Voltage Range 25C 2 -40C to 125C 1 10 pA 25C 1 10 pA 5.6 V 25C -0.1 Vs= 5.5V, Vcm =-0.1V to 4V 25C 74 -40C to 125C 25C Vs= 5.5V, Vcm =-0.1V to 5.6V uV/C 25C Vs= 5.5V Common-Mode Rejection Ratio mV 92 68 62 -40C to 125C 60 25C -40C to 125C 25C -40C to 125C 90 75 92 78 83 dB OUTPUT AOL Open-Loop Voltage Gain Output Swing From Rail Iout RL=2KΩ, Vo= 0.15V to 4.85V RL=10KΩ, Vo= 0.05V to 4.95V RL=2KΩ RL=10KΩ Output Short-Circuit Current 102 106 dB 25C 40 7 mV 25C 180 mA FREQUENCY RESPONSE SR GBP PM ts Slew Rate 25C 3.7 V/us Gain-Bandwidth Product 25C 7 MHz Phase Margin 25C 64 ° 0.5 us 0.5 us Setting Time,0.1% Overload Recovery Time VIN·Gain≥VS NOISE en Input Voltage Noise Density f = 1KHz 25C 11 nV/√Hz f = 10KHz 25C 7.5 nV/√Hz 3 www.run-ic.com RS622A TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. COMMON−MODE REJECTION RATIO vs FREQUENCY OPEN−LOOP GAIN AND PHASE vs FREQUENCY Phase 100 140 120 80 100 60 80 40 60 20 40 0 20 -20 10 1K 100K 120 100 CMRR(dB) 120 Open-Loop Gain(dB) 160 Gain Phase Margin (°) 140 80 60 40 0 10M 20 1 10 Frequency(Hz) Voltage Noise (nV/√Hz) 10K POWER−SUPPLY REJECTION RATIO vs FREQUENCY 120 100 | PSRR(dB) 100 10 80 60 40 20 1 10 100 1K 10K 1 100K 10 1.1 100 1K 10K Frequency(KHz) Vs=5V Frequency(Hz) QUIESCENT CURRENT vs TEMPERATURE 1.1 1 Quiescent Current(mA) Quiescent Current(mA) 1K Frequency(KHz) Vs=5V INPUT VOLTAGE NOISE SPECTRAL DENSITY vs FREQUENCY 1000 100 0.9 0.8 0.7 0.6 0.5 QUIESCENT CURRENT vs TEMPERATURE 1 0.9 0.8 0.7 0.6 0.5 -40 -20 0 20 40 60 80 100 120 140 -40 -20 Temperature(℃) Vs=2.5V 0 20 40 60 80 100 120 140 Temperature(℃) Vs=5V 4 www.run-ic.com RS622A TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. SINK CURRENT vs TEMPERATURE 210 220 Source Current(mA) 200 Sink Current(mA) SOURCE CURRENT vs TEMPERATURE 230 190 180 170 160 210 200 190 180 170 160 150 150 -40 -20 10K 0 20 40 60 80 100 120 140 -40 -20 0 20 40 60 80 100 120 140 Temperature(℃) Temperature(℃) INPUT BIAS CURRENT vs TEMPERATURE SMALL−SIGNAL STEP RESPONSE 50mV/div 100 10 1 0.1 -40 -20 0 20 40 60 200ns/div 80 100 120 140 Temperature(℃) POSITIVE OVERLOAD RECOVERY CL=100PF 200mV/div LARGE−SIGNAL STEP RESPONSE 0V VIN 1V/div VS=±2.5V G=-100 VOUT 0V 400ns/div 1V/div Input Bias Current(pA) CL=100PF 1K 500ns/div 5 www.run-ic.com RS622A TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. OFFSET VOLTAGE PRODUCTION DISTRIBUTION NEGATIVE OVERLOAD RECOVERY VIN 0V 1V/div 0V Percentage of Amplifiers (%) 200mV/div 25 VS=±2.5V G=-100 VOUT 20 15300 Samples 1 Production Lot VS = ±2.5V 15 10 5 0 500ns/div -4 -3 -2 -1 0 1 2 3 Offset Voltage (mV) 6 www.run-ic.com RS622A APPLICATION NOTES The RS622A are high precision, rail-to-rail operational amplifiers that can be run from a single-supply voltage 2.5V to 5.5V (±1.25V to ±2.75V). Supply voltages higher than 7V (absolute maximum) can permanently damage the amplifier. Rail-to-rail input and output swing significantly increases dynamic range, especially in low-supply applications. INSTRUMENTATION AMPLIFIER In the three-op amp, instrumentation amplifier configuration shown in Figure2, V1 RS622A Good layout practice mandates use of a 0.1uF capacitor place closely across the supply pins. RS622A LAYOUT GUIDELINS VOUT RS622A Attention to good layout practices is always recommended. Keep traces short. When possible, use a PCB ground plane with surface-mount components placed as close to the device pins as possible. Place a 0.1uF capacitor closely across the supply pins. These guidelines should be applied throughout the analog circuit to improve performance and provide benefits such as reducing the EMI susceptibility. V2 Figure2. Amplifier instrumentation amplifier +Vs 10uF 0.1uF Vin Vip Vout RS622A 10uF 0.1uF -Vs Figure1. Amplifier with Bypass Capacitors 7 www.run-ic.com RS622A PACKAGE OUTLINE DIMENSIONS TSSOP-8 e b 5.6 E1 E 1.78 D 0.65 0.42 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 Symbol H C A θ L Dimensions In Millimeters Min Max A Dimensions In Inches Min Max 1.200 0.047 A1 0.050 0.150 0.002 0.006 A2 0.800 1.050 0.031 0.041 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 D 2.900 3.100 0.114 0.122 E 4.300 4.500 0.169 0.177 E1 6.250 6.550 0.246 0.258 e L 0.650(BSC) 0.500 H θ 0.026(BSC) 0.700 0.020 0.25(TYP) 1° 0.028 0.01(TYP) 7° 8 1° 7° www.run-ic.com
