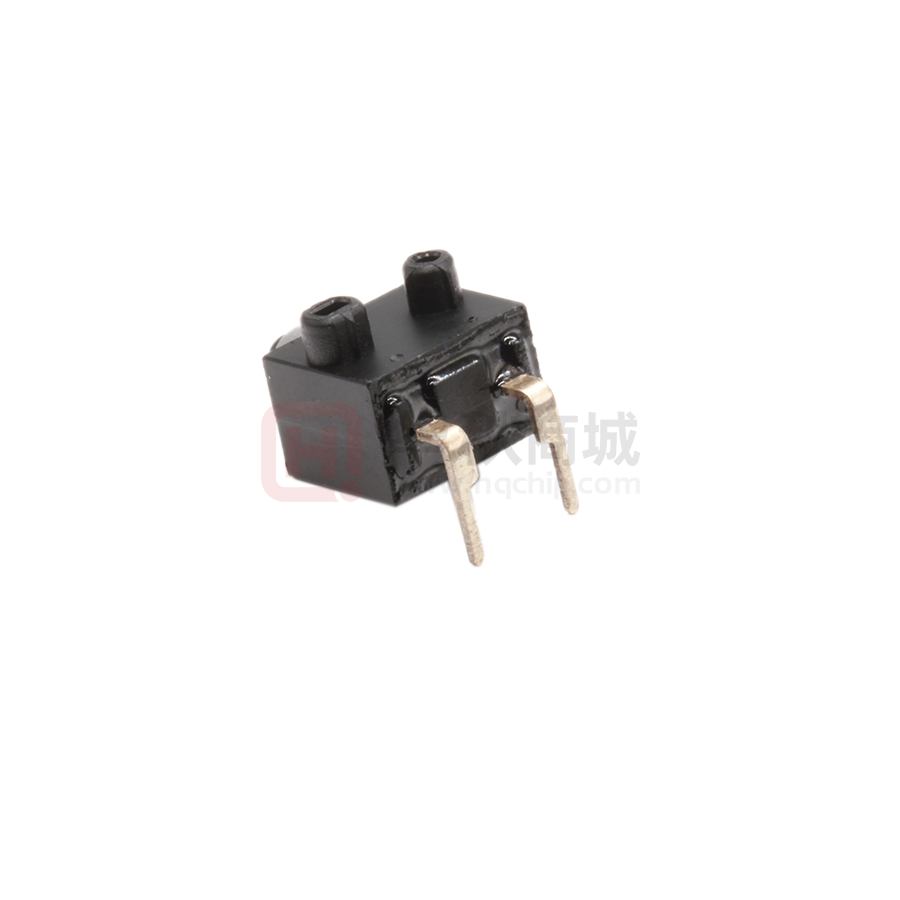

TP330113000

A B D E Ø2.20[0.086]±0.10 2-2.00[0.079]±0.10 Ø2 .20 2-0.40[0.020]±0.02 5.00[0.197]±0.10 TTP 3-2.6[0.102]±0.05 [0. 08 7 2-1.20[0.050]±0.10 5.70[0.220] ] 2.20[0.086] 2-2.40[0.090]±0.10 6.50[0.256]±0.10 2 3.00[0.118] 06 ] FP [0. 1 2-1.9[0.07] .70 OP Ø2 R1 . 1 20 [0 . PT 05 0] ±0 .1 0 C 2-90° 2.60[0.102] Circuit diagram 3 8.25[0.320]±0.10 5.08[0.200]±0.10 2-0.60[0.020] 5.25[0.200]±0.10 C 4 1 Rubber shell PA66 2 Seal ring Silica gel 3 Base Brass+PA66 4 According to sincerity Pom 5 Contact moving plate Phosphor bronze 6 Strut SUS UNIT A4 COMMON DRAWN BY FUYUAN 台普 A2 A1 REV MM ROCPU DATE REVISION DESCRIPTION A ISSUE B X.XX ± 0.10 X.X ± 0.15 X ± 0.25 ANGULAR C DATE 2019 G Technical Parameters 技术参数 1.Electrical Rating:0.1A 125/250VAC 3A/12VDC;0.1A/48VDC 1.电气额定值:0.1A 125/250VAC 3A/12VDC;0.1A/48VDC 2.Electrical lifetime:100,000 cycles 2.电气寿命：100,000 cycles 3.Mechanical lifetime:100,000 cycles 3.机械寿命：100,00 cycles 4.Contact Resistance：≤50mΩ 4.接触电阻：≤50兆欧 5.Operating force:1.5N MAX 5.操作力:1.5N MAX 6.working temperature：-25~﹢105℃ 6.工作温度：-25~﹢105℃ 7.FP:7.6mm MAX 7.自有位置：7.6mm MAX 8.OP:7.1±0.5mm 8.动作位置：7.1±0.5mm 9.TTP：5.1mm Min 9.总行程行程：5.1mm Min 10.Withstand Voltage:Feet and Feet 500V/5S/5mA Feet and Shell 1500/5S/5mA 10.耐压：脚与脚 500/5s/5mA 脚与壳 1500/5S/5mA 11.Insulation Resistance:≥100MΩ 11.绝缘电阻：≥100MΩ 12.Proof Tracking Index(PTI):175V 12.漏电起痕指数（PTI）：175V 13.Ambient temperature:125° 13.环境温度：125° 14.Waterproof grade: IP67 14.防水等级：IP67 PROJCTED CHECKED BY COCO APPROVAL B ALEN MODEL NO:TP330113000 Https: www.rocpu.tw ROCPU TECHNOLONGY CO.,LTD Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission D E 1 2 3 4 PRODUCT NAME: TOLERANCE A3 5 NO F F G 5
