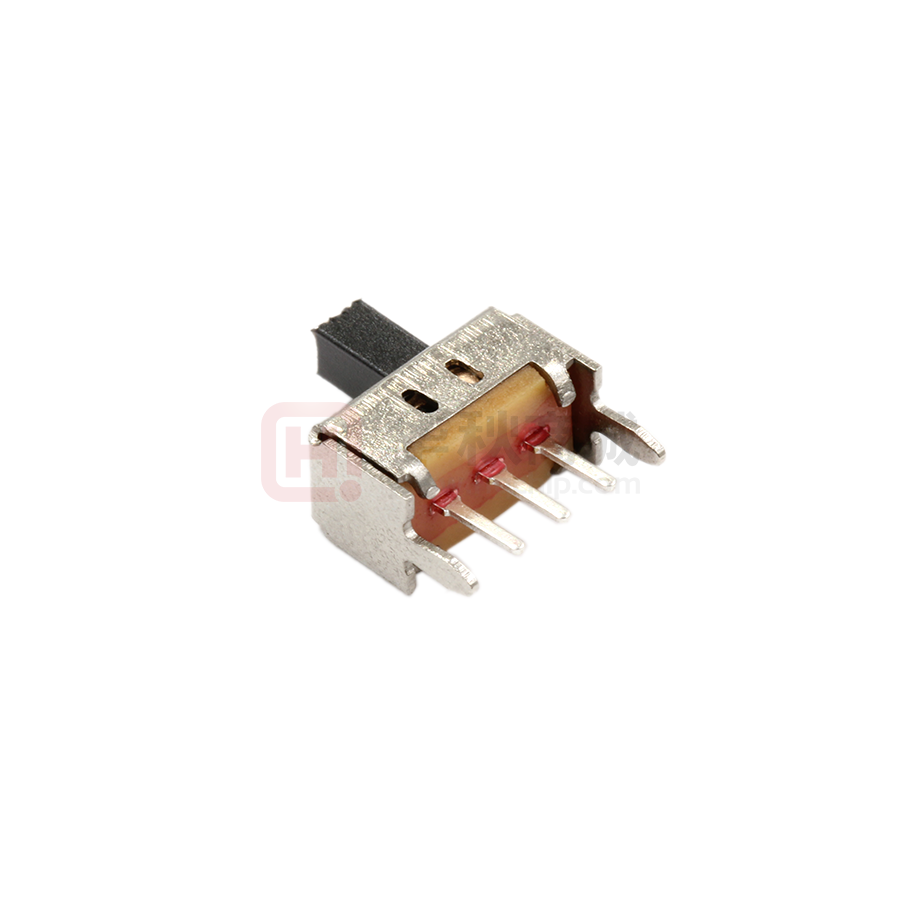

SS-12D07-4

A B D C E F G 8.6 [0.339] 1 4.5 [0.177] 1 4[0.157] SCHEMATIC (NON-SHORTING) 2.0 [0.079] 4.00[0.157] 2.0 [0.079] 2 TRAVEL 1 7.4 [0.291] 3 4 P.C.B LAYOUT BOTTOM VIEW 0.3 [0.012] 0.4 THK 0.5 [0.020] 3 2 10.7 [0.420] 4.7 [0.185] 2 2.6 [0.102] 7.5 [0.295] 2 3 4[0.157] 1.2 [0.047] 8.2 [0.323] 4 3 2 1 ITEM 4 3 1 1 1 Terminal Base Cover Keystake PAPT NAME TER‚NO QTY Brass（0.30t） ag Plated Phenolic Resin Sus Natural Pa66 Black MATERIAL FINISHING UNIT A4 COMMON DRAWN BY FUYUAN A2 X.XX ± 0.10 A1 X.X ± 0.15 X ± 0.25 REV MM DATE REVISION DESCRIPTION A ISSUE B ANGULAR C 0.3A 50V DC CIRCUIT 1P2T CONTACT RESISTANCE 100mΩ MAX TRAVEL 2mm OPERATING FORCE 250±100gf OPERATING LIFE(CYCLES) 10,000 PROJCTED DATE 2019 4 PRODUCT NAME: TOLERANCE A3 5 REMARK RATING CHECKED BY COCO MODEL NO: SS-12D07-4 APPROVAL B ALEN Https: www.rocpu.tw ROCPU TECHNOLONGY CO.,LTD Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission D E F G 5
