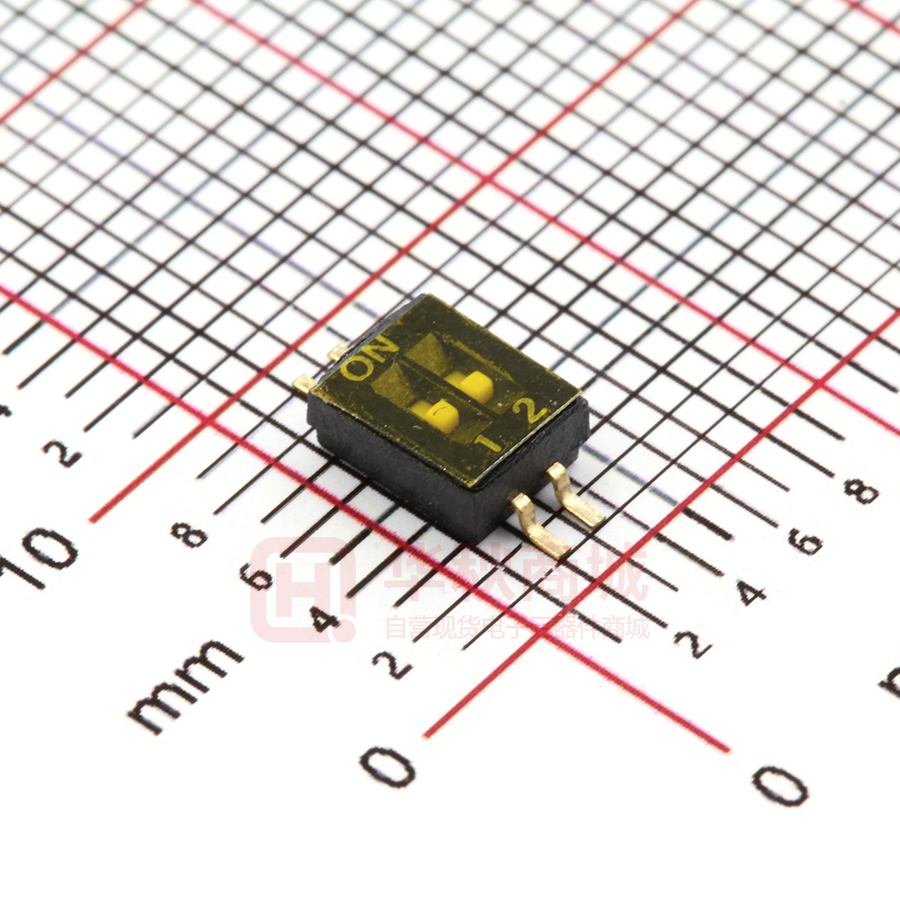

THS102

A B A 3 A 4 5 6 7 8 9 0.15[0.006] 2.30 [0.091] 0.9[0.035] Terminal Contact Actuator Cover 0.60 [0.024] Tape 0.40 [0.016] 0.40[0.016] 2x0.81[0.032] A-A 8.35[0.836] 0.05 [0.002] Terminal Base 2 A 11.43 [0.450]±0.2 1.27 [0.050] 8.89 [0.350] 10.00 [0.394] 0.51 [0.020] SCHEMATIC 0.76 [0.030] PCB LAYOUT UNIT A4 COMMON DRAWN BY FUYUAN 台普 A2 A1 REV ROCPU DATE REVISION DESCRIPTION A ISSUE B X.XX ± 0.10 X.X ± 0.15 X ± 0.25 ANGULAR C PROJCTED DATE 2019 A Dimension(mm) 1 2 3 4 2.87 4.12 5.41 6.66 7.93 9.2 11.74 14.28 CHECKED BY APPROVAL B 3 Part Name Material Finished Base PPS UL94 V0 Black Cover PPS UL94 V0 Black Actuator nYlon UL94 V0 White Movadle Berylium 3U"Gold Terminal Contact Brass 3U"Gold Terminal Brass 3U"Gold Tapa Polyimide Amber COCO ALEN MODEL NO: THS102 Https: www.rocpu.tw ROCPU TECHNOLONGY CO.,LTD Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission D E 4 PRODUCT NAME: TOLERANCE A3 5 MM Poles(N) 5 6 8 10 6.35 [0.250] 3 4 G Switching:25mA at 24VDC 1 Non-Switching:100mA at 50VDC Initial:50m Ω Max After life:100mΩ Max Insulation Resistance:100mΩ Min,60 sec at 500VDC Dielectyic Strength:300VAC for 60seconds Swith Capacitance:5pF Max at 1MHZ Operation Temperature:-30℃to﹢85℃ Storage Temperature:-40℃to﹢85℃ Operation Force:500gf Max Mechanicai Life:3000 cycles opertions Resistance to Soldering:260±5℃ for 3-5 seconds 10 2 2.30 [0.091] F 1.27 [0.050] 5.40 [0.213] NO 2 E 1.27 [0.050] 1 1 D C F G 5
