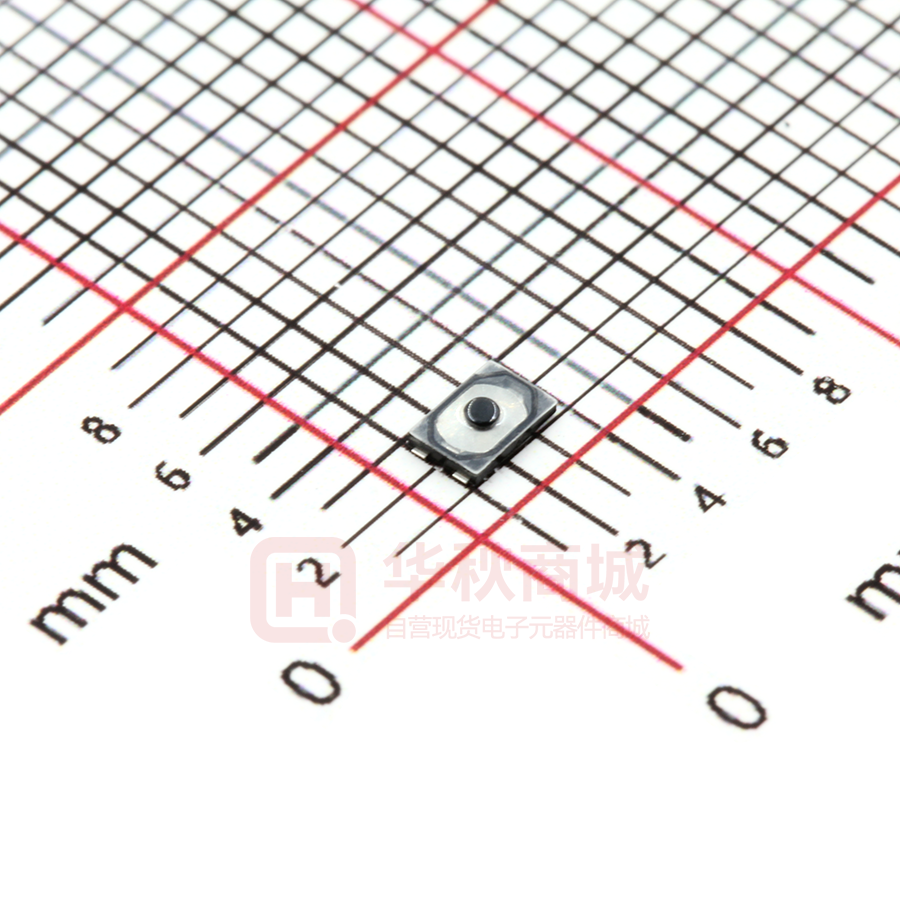

TPT-3B1

B 0.75 [0.030] 3.00 [0.118] 2.80 [0.110]±0.10 1 2 E 3 F G Main Specifications Climate grade:-30℃~﹢85℃ Rated values：Max50 mA12V DC Min10 uA1V DC Contact resistance:≤500mΩ Dielectric strength：100V,AC,1Min Insulation resistance:≥100MΩ Operating force：160±50g Travel：0.15±0.05mm Life：100,000 times 0.65[0.026]±0.05 1.90 [0.075] 1 D C 1.55 [0.061] A 4 1 2 2 0.04 [0.001] Circuit Diagram 1 2 3 4 3 3 3.10[0.122] 3 2 A4 5 COMMON A3 TOLERANCE A2 X.XX ± 0.10 A1 X.X ± 0.15 X ± 0.25 REV DATE REVISION DESCRIPTION A ISSUE B terminal polyimide 1 Black 4 Key Phosphor copper 1 Silver 3 Yellow membrane polyimide 1 white 2 Shrapnel SUS301-Ag0.5 2 Silver 1 base PA6T 1 Black ITEM Name Materials NUM COLOR 0.59 [0.023] 4 1 1.73 [0.068] 5 4 5 2.00 [0.079] ANGULAR C UNIT MM DRAWN BY FUYUAN DATE 2019 PROJCTED PRODUCT NAME: CHECKED BY COCO MODEL NO: TPT-3B1 APPROVAL B ALEN Https: www.rocpu.tw ROCPU TECHNOLONGY CO.,LTD Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission D E 4 F G 5
