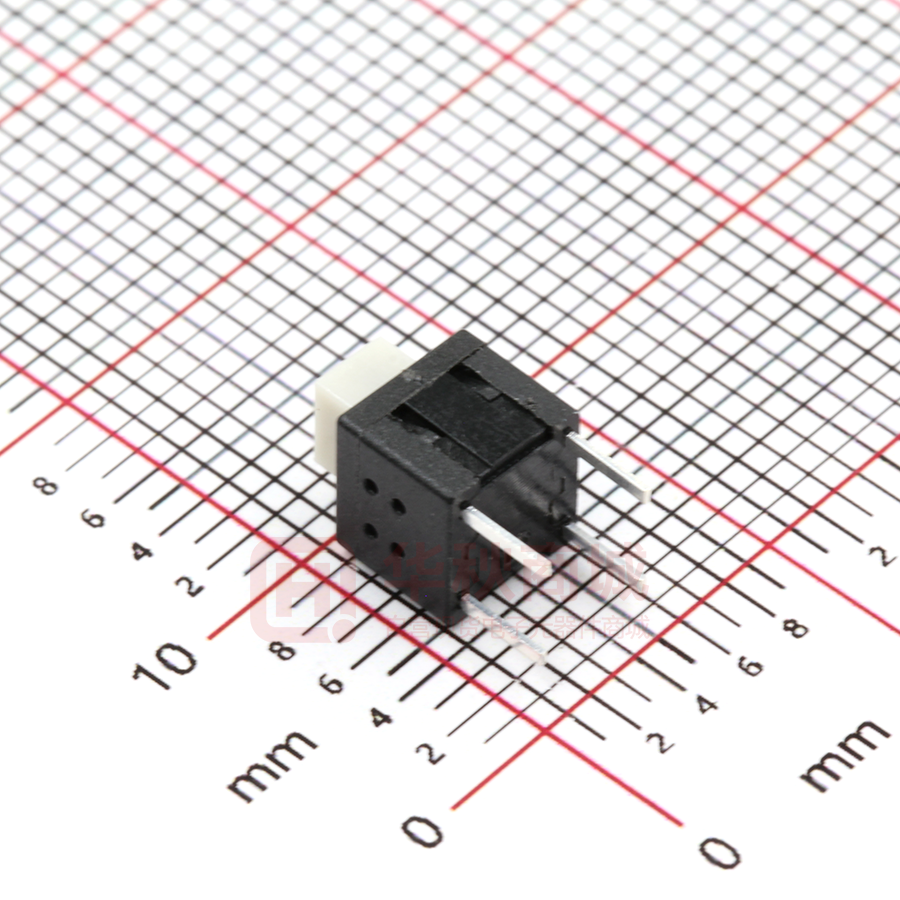

BTSA-N-P-1

A B D C E 4.00 [0.157] 5.80 [0.228]±0.10 ④ ② ③ ① 向视图 3 6.80[0.268]±（OFF） 8.00[0.315]±0.20（ON） 5.00[0.197]±0.10 2.50[0.098]±0.10 3.00[0.118] ① ③ ② ④ 3.50[0.138]±0.20 4.00 [0.157]±0.20 ① 5 COMMON 台普 A2 A1 REV DATE REVISION DESCRIPTION A ③ ISSUE B 1 4 2 0.5-2.0 3 1 4 2 1-2 on 3-4 on 1-2导通 3-4导通 4. Maximum stroke: 2.0± 0.2mm 4.最大行程：2.3±0.2mm 5. Insulation resistance: ≥ 100m Ω 5.绝缘电阻：≥100MΩ 6. Service life: 10000 times 6.寿命：10000次 7. Switch similar: No lock 7.开关类似：无锁 2 7 ④ TOLERANCE X.XX ± 0.10 X.X ± 0.15 X ± 0.25 ANGULAR C UNIT MM DRAWN BY FUYUAN DATE 2019 6 Spring 弹簧 SUS 不锈钢丝 1 Natural color 本色 5 reed 簧片 Composite silver 复合银 1 Natural color 本色 PA66 1 PA66 1 black 黑色 white 白色 3 Upper cover 上盖 handle 按柄 2 terminal 端子 Brass 黄铜 1 Natural color/silver 本色/镀银 1 Pedestal 基座 PA66 1 black 黑色 ITEM Name Materials NUM COLOR 4 Normal: all disconnected 常态：全部断开 Press: 1-2 on 3-4 on 按下：1-2导通 3-4导通 A3 1 3 all disconnected 全部断开 Technical parameter 技术参数 1. Rated current: 100mA 30V DC 1.额定电流：100mA 30V DC 2. Contact resistance: ≤ 200m Ω 2.接触电阻：≤200mΩ 3. Operating force: 260gf ± 50gf 3.操作力：260gf±50gf 电路简图 Circuit diagram 4.50[0.177]±0.20 A4 0-0.5 ⑥ 通电状态 3 ② 4 行程状态（mm） ② 4.50 [0.177] 2 3.60 [0.142] G 行程与通电状态对照 ③ ④ ⑤ ① 5.80 [0.228]±0.10 1 F PROJCTED PRODUCT NAME: CHECKED BY COCO MODEL NO: APPROVAL B ALEN Https: BTSA-N-P-1 www.rocpu.tw ROCPU TECHNOLONGY CO.,LTD Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission D E 4 F G 5
