To:
Customer P/N:
UDE P/N: S22-ZZ-0019

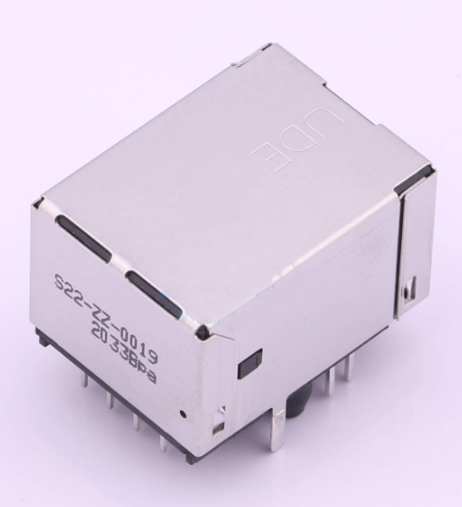

Description: RJ45 1X1 Tab Up
Through Hole
10/100 Base-T
Contact Area : Gold Flash
LED:L-Green; R-Yellow
Spec No.
S2218018-00
Approved
Checked
Update Date
2018/3/27
Revision
A
Prepared
Revision History
Issue Date
2018/3/27
Revision
A
Initial Release .
Comments
Operator
Bluce
UD-P09-R03E
S2218018-00
S22-ZZ-0019
1. MECHANICAL DIMENSION
Product Dimension
U. D. Electronic Corp.
Unit:mm
1/9
General Tolerance :
X.X : ± 0.38
X.XX : ± 0.20
UD-P09-R60A
S2218018-00
S22-ZZ-0019
Recommended PCB Layout. Component side of board
All dimension units are "mm".
All dimension tolerances are ±0.05mm unless otherwise specified.
Table1
Layout
Trace
component
Grounding
Test
Point
Component side
X
X
O
X
X
X
O
Inner layer
O
NA
O
NA
O
X
O
Bottom side
O
O
O
O
O
X
O
Layer
Via Hole PTH
NPTH
X--Forbid; O--OK; NA--Not Applicable.
U. D. Electronic Corp.
2/9
UD-P09-R60A
S2218018-00
S22-ZZ-0019
Recommended Panel cutout
2. Packing Information
60 pcs finished goods per tray
7 trays(420 pcs finished goods) per inner box
4 Inner boxes(1680 pcs finished goods) per master carton
U. D. Electronic Corp.
3/9
UD-P09-R60A
S2218018-00
S22-ZZ-0019
3. Standard RJ45 Plug Specification
- All dimensions follow :
FCC subpart F, 68,500, Figure (C)(2)(i) & (C)(2)(ii) & (C)(3)(i)
IEC 60603-7
- All plugs must be meeting the requirements of plug Go & No-Go gauge.
Gauge follow : FCC subpart F, 68,500, Figure (C)(4)(i) & (C)(5)(i)
- There must be no damage to Housing and Locking Latch.
- There must be no nicks and cuts in cable.
- Durability : 750 cycles generally
U. D. Electronic Corp.
4/9
UD-P09-R60A
S2218018-00
S22-ZZ-0019
4. REQUIREMENTS
Design and Construction
Product shall be of design, construction and physical
dimensions specified on applicable.
Material
Terminal Parts (Underplating : 50μ"min Nickel overall)
RJ Terminal :Phosphor Bronze , Thickness=0.30mm
Finish : Contact Area : Gold Flash
Input Terminal : Brass, Thickness=0.35mm
Finish : 100μ" min. Matte Tin
Plastic Parts
Housing : PA6T, Black
Case : PA6T, Black
LED Cover : PA6T, Black
Shield Parts
Shield Parts : Stainless steel, Thickness=0.20mm, Pre-soldering
U. D. Electronic Corp.
5/9
UD-P09-R60A
S2218018-00
S22-ZZ-0019
5. Operating and Storage Temperature
Operating Temperature :
-40°C to +85°C
Storage Temperature :
-40°C to +85°C
6. RJ45 specifications
Insulation Resistance :
500MΩ min.
Insertion force with the latch depressed : 20N max.
Removal force with the latch depressed : 20N max.
Locking Force of Plug Latch :
Durability :
50N min. @ 60+/-5 sec.
750 cycles
7. Performance and Test Description
Product is designed to meet electrical, mechanical and environmental
performance requirements specified in below table.
All tests are performed at ambient environmental conditions per MIL-STD-1344A
and EIA-364 unless otherwise specified.
8. Packaging and Packing
All parts shall be packaged and packed to protect against physical damage, corrosion
and deterioration during shipment and storage.
U. D. Electronic Corp.
6/9
UD-P09-R60A
S2218018-00
S22-ZZ-0019
9. ELECTRICAL CHARACTERISTCS @ 25℃
PHY Side
(INPUT)
Cable Side
(RJ45 OUTPUT)
1:1
TD+ R1
C1 TX+
TD- R2
C2 TX75Ω
75Ω
TCT R4
C4
RCT R5
C5
1:1
RD+ R3
C3 RX+
C6 RX-
RD- R6
75Ω
75Ω
C7
NC R7
2KV 1000pF
GND R8
C8
Emitting Color
λp (nm)
Vf @If=20mA
Ir @Vr=5V
Green
570
1.7 ~2.6 V
10μA max.
Yellow
588
1.7 ~2.6 V
10μA max.
U. D. Electronic Corp.
7/9
UD-P09-R60A
S2218018-00
S22-ZZ-0019
Transmitter filter & Receiver filter
Type : Balance low pass 100Ω impedance
Insertion loss : 1 MHz
Return loss :
-1.0dB max.
100 MHz
-1.4dB max.
1~30MHz
-16dB min.
load 100Ω
30~60MHz
-14dB min.
load 100Ω
60~80MHz
-10dB min.
load 100Ω
Common Mode Rejection
@1~100 MHz
-30dB min.
Cross Talk
@ 1~100MHz
-30dB min.
Inductance @ 100KHz, 0.1V
Input(TD+,TD-); (RD+,RD-) :
350 μH Typ.
HiPot Test
PHY Side(input)
U. D. Electronic Corp.
To
Cable Side(output) :
8/9
1500Vac 60s or 2250Vdc 60s
UD-P09-R60A
S2218018-00
S22-ZZ-0019
10. WAVE SOLDERING TEMPERATURE PROFILE
Note:
The measuring point for the specified temperature shall
be on the soldered part of the lead.
U. D. Electronic Corp.
9/9
UD-P09-R60A
