JW5352/JW5352M
18V/2A
Sync. Step-Down Converter
Preliminary Specifications Subject to Change without Notice
DESCRIPTION
FEATURES
The JW ®5352 and JW ®5352M are monolithic
buck switching regulator based on I2 architecture
for fast transient response. Operating with an
input range of 4.5V~18V, JW5352 and JW5352M
deliver 2A of continuous output current with two
integrated N-Channel MOSFETs. The internal
synchronous power switches provide high
efficiency without the use of an external Schottky
diode. At light loads, JW5352 and JW5352M
operate in low frequency to maintain high
efficiency.
4.5V to 18V operating input range
2A output current
Up to 95% efficiency
PFM at light load
600kHz switching frequency
Internal soft-start
Input under-voltage lockout
Current run-away protection
Output short protection
Thermal protection

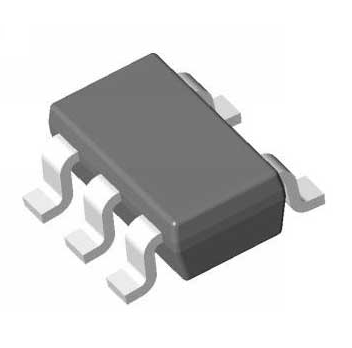

Available in SOT23-6 package
APPLICATIONS
JW5352 and JW5352M guarantee robustness
with output short protection, thermal protection,
current run-away protection and input under
voltage lockout.
JW5352 and JW5352M are available in SOT23-6
package, which provides a compact solution with
minimal external components.
Distributed Power Systems
Networking Systems
FPGA, DSP, ASIC Power Supplies
Green Electronics/ Appliances
Notebook Computers
Company’s Logo is Protected, “JW” and “JOULWATT” are Registered
Trademarks of JoulWatt technology Inc.
TYPICAL APPLICATION
C2
VIN
VIN
BST
SW
L
C5
R1
C1
VOUT
EN
R2
JW5352
&JW5352M
FB
R3
R4
C3 C4
GND
JW5352/JW5352M Rev.0.22
JoulWatt® Proprietary Information. Patent Protected.
2022/06/22
Unauthorized Photocopy and Duplication Prohibited.
1
JW5352/JW5352M
JoulWatt
ORDER INFORMATION
DEVICE1)
PACKAGE
JW5352SOTB#TR
SOT23-6
TOP MARKING2)
ENVIRONMENTAL3)
JWN5□
Green
YW□□□
JWN8□
JW5352MSOTB#TR
SOT23-6
Green
YW□□□
Notes:
JW
# TR
1)
JW
2) Line1:
Tape and Reel (If TR is not shown, it means Tube)
Package Code
Part No.
YW
Lot number
Lot number
Line2:
Product code
Week code
Joulwatt LOGO
Year code
3) All Joulwatt products are packaged with Pb-free and Halogen-free materials and compliant to RoHS standards.
DEVICE INFORMATION
DEVICE
Operation Mode at light load
Function
Package
MSL
JW5352SOTB#TR
PFM
-
SOT23-6
MSL1
JW5352MSOTB#TR
PFM
-
SOT23-6
MSL3
PIN CONFIGURATION
TOP VIEW
BST
1
6
SW
GND
2
5
VIN
FB
3
4
EN
SOT23-6
JW5352/JW5352M Rev.0.22
JoulWatt® Proprietary Information. Patent Protected.
2022/06/22
Unauthorized Photocopy and Duplication Prohibited.
2
JW5352/JW5352M
JoulWatt
ABSOLUTE MAXIMUM RATING1)
VIN, EN Pin………................................................................................................................ -0.3V to 20V
SW Pin…………………………..………………………………….-0.3V(-5V for 10ns) to 20V(22V for 10ns)
BST Pin...................................................................................................................... SW-0.3V to SW+4V
All other Pins ........................................................................................................................... -0.3V to 4V
Junction Temperature2) ..................................................................................................................150ºC
Lead Temperature ............................................................................................................................260ºC
Storage Temperature .......................................................................................................-65ºC to +150ºC
RECOMMENDED OPERATING CONDITIONS
Input Voltage VIN .....................................................................................................................4.5V to 18V
Output Voltage VOUT .........................................................................................................0.6V to VIN*Dmax
Operation Junction Temperature Tj .................................................................................. -40°C to 125°C
THERMAL PERFORMANCE
θJA
θJc
SOT23-63)..........................................................................................................................220....130ºC/W
SOT23-64)............................................................................................................................100....25ºC/W
Notes:
1)
2)
3)
4)
Exceeding these ratings may damage the device. These stress ratings do not imply function operation of the device
at any other conditions beyond those indicated under RECOMMENDED OPERATING CONDITIONS.
The JW5352 and JW5352M include thermal protection that is intended to protect the device in overload conditions.
Continuous operation over the specified absolute maximum operating junction temperature may damage the device.
Measured on JESD51-7, 4-layer PCB.
Measured on a 2OZ two-layer JW5352/JW5352M Evaluation Board at TA=25℃.
JW5352/JW5352M Rev.0.22
JoulWatt® Proprietary Information. Patent Protected.
2022/06/22
Unauthorized Photocopy and Duplication Prohibited.
3
JW5352/JW5352M
JoulWatt
ELECTRICAL CHARACTERISTICS
VIN=12V, TA=25℃,Unless otherwise stated。
Item
Symbol
Conditions
VIN rising
Min.
Typ.
Max.
Unit
3.85
4.2
4.45
V
VIN Under Voltage Lockout Threshold
VIN_MIN
VIN Under voltage Lockout Hysteresis
VIN_MIN_HYST
Shutdown Supply Current
ISD
VEN=0V
0.1
1
μA
Supply Current
IQ
VEN=5V, VFB=1V
140
200
μA
Feedback Voltage
VFB
4.5V
