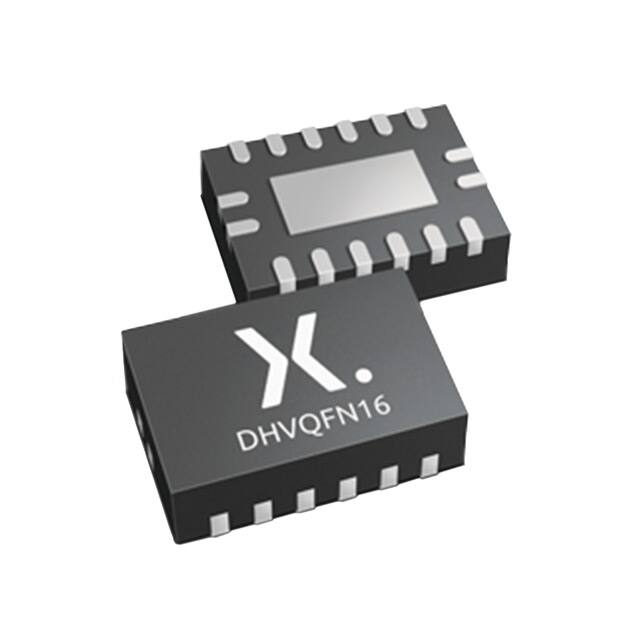

74LV4053BQ-Q100X

74LV4053-Q100 Triple single-pole double-throw analog switch Rev. 1 — 25 March 2014 Product data sheet 1. General description The 74LV4053-Q100 is a triple single-pole double-throw (SPDT) analog switch, suitable for use as an analog or digital multiplexer/demultiplexer. It is a low-voltage Si-gate CMOS device and is pin and function compatible with the 74HC4053-Q100 and 74HCT4053-Q100. Each switch has a digital select input (Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). All three switches share an enable input (E). A HIGH on E causes all switches into the high-impedance OFF-state, independent of Sn. VCC and GND are the supply voltage connections for the digital control inputs (Sn and E). The VCC to GND range is 1 V to 6 V. The analog inputs/outputs (nY0, nY1 and nZ) can swing between VCC as a positive limit and VEE as a negative limit. VCC  VEE may not exceed 6 V. For operation as a digital multiplexer/demultiplexer, VEE is connected to GND (typically ground). VEE and VSS are the supply voltage connections for the switches. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2. Features and benefits  Automotive product qualification in accordance with AEC-Q100 (Grade 1)  Specified from 40 C to +85 C and from 40 C to +125 C  Optimized for low-voltage applications: 1.0 V to 3.6 V  Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V  Low ON resistance:  180  (typical) at VCC  VEE = 2.0 V  100  (typical) at VCC  VEE = 3.0 V  75  (typical) at VCC  VEE = 4.5 V  Logic level translation:  To enable 3 V logic to communicate with 3 V analog signals  Typical ‘break before make’ built in  ESD protection:  MIL-STD-883, method 3015 exceeds 2000 V  HBM JESD22-A114F exceeds 2000 V  MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 )  Multiple package options 74LV4053-Q100 Nexperia Triple single-pole double-throw analog switch 3. Ordering information Table 1. Ordering information Type number 74LV4053D-Q100 Package Temperature range Name Description Version 40 C to +125 C SO16 plastic small outline package; 16 leads; body width 3.9 mm SOT109-1 TSSOP16 plastic thin shrink small outline package; 16 leads; SOT403-1 body width 4.4 mm DHVQFN16 plastic dual-in line compatible thermal enhanced very thin quad flat package; no leads; 16 terminals; body 2.5  3.5  0.85 mm 74LV4053PW-Q100 40 C to +125 C 74LV4053BQ-Q100 40 C to +125 C SOT763-1 4. Functional diagram E 6 VCC 16 13 1Y1 S1 11 LOGIC LEVEL CONVERSION 12 1Y0 DECODER 14 1Z 1 2Y1 S2 10 LOGIC LEVEL CONVERSION 2 2Y0 15 2Z 3 3Y1 S3 9 LOGIC LEVEL CONVERSION 5 3Y0 4 3Z 8 GND Fig 1. 7 VEE 001aak341 Functional diagram 74LV4053_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 25 March 2014 © Nexperia B.V. 2017. All rights reserved 2 of 25 74LV4053-Q100 Nexperia Triple single-pole double-throw analog switch 6 11 S1 1Y0 12 10 S2 1Y1 13 11 9 S3 1Z EN # 14 14 2Y0 2 2Y1 1 10 15 15 2Z 3Y0 5 3Y1 3 3Z 4 9 MUX/DMUX 0 × 0 1 0/1 12 13 1 # 2 1 5 # 3 4 6 E 001aae125 Fig 2. Logic symbol 001aae126 Fig 3. IEC logic symbol Y VCC VEE VCC VCC VCC VEE from logic VEE Z 001aad544 Fig 4. Schematic diagram (one switch) 74LV4053_Q100 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 25 March 2014 © Nexperia B.V. 2017. All rights reserved 3 of 25 74LV4053-Q100 Nexperia Triple single-pole double-throw analog switch 5. Pinning information 5.1 Pinning /94
