PTVSHC1TF24VBH

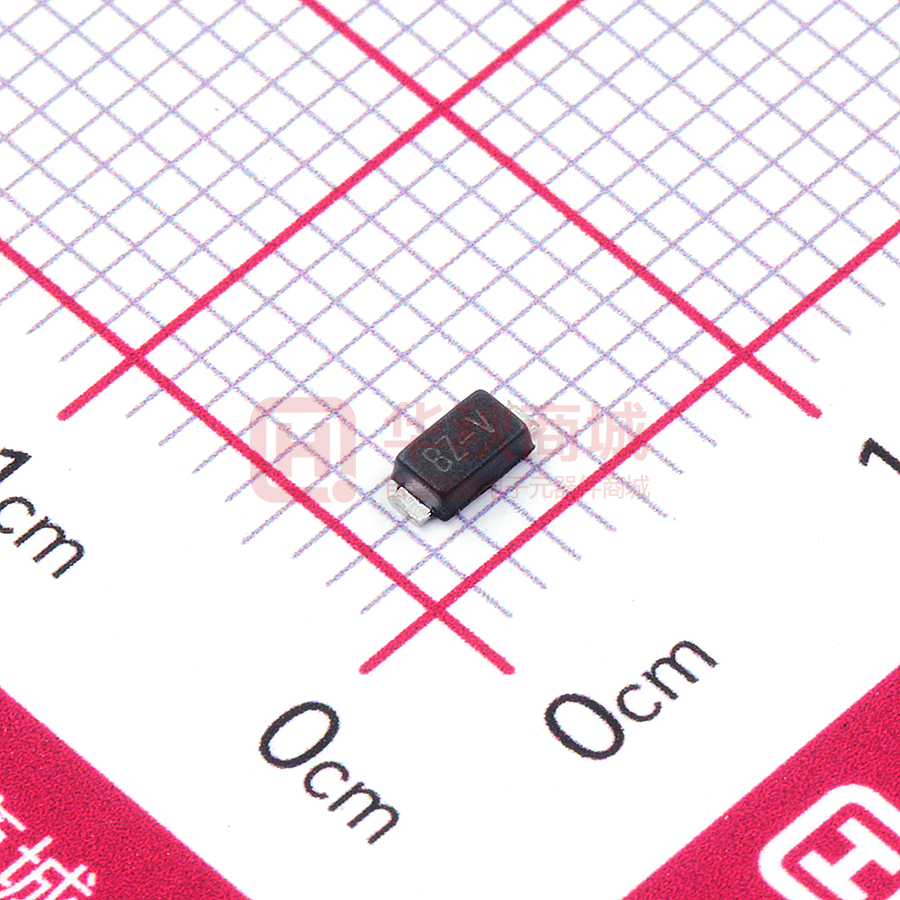

PTVSHC1TF24VBH Bi-directional 24V High Capacitance TVS Protector Description The PTVSHC1TF24VBH transient voltage suppressor is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDA’s. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, lower operating voltage, lower clamping voltage and no device degradation when compared to MLVs. The PTVSHC1TF24VBH protects sensitive semiconductor components from damage or upset due to electrostatic SOD-123FL (Top View) discharge (ESD) and other voltage induced transient events. The PTVSHC1TF24VBH is available in a SOD-123FL package with working voltages of 24 volt. Feature  6500W Peak pulse power per line (tP = 8/20μs)  SOD-123FL package  Response time is typically < 1 ns  Protect one I/O or power line  Low clamping Voltage  RoHS compliant  Transient protection for data lines to IEC 61000-4-2(ESD) Pin 2 Pin 1 Circuit Diagram ±30KV(air), ±30KV(contact); IEC 61000-4-4 (EFT) 40A (5/50ns) Applications  Cell phone handsets and accessories  Personal digital assistants (PDA’s)  Notebooks, desktops, and servers  Portable instrumentation  Cordless phones  Digital cameras  Peripherals  MP3 players BZ-V Marking (Top View) Mechanical Characteristics  Lead finish:100% matte Sn(Tin)  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 1 requirements  Pure tin plating: 7 ~ 17 um  Pin flatness:≤3mil Rev.06.1 1 www.prisemi.com Transient Voltage Suppressor PTVSHC1TF24VBH Electronics Parameter Symbol VRWM IR VBR Parameter I IPP Peak Reverse Working Voltage Reverse Leakage Current @ VRWM Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IT IR VC VBR VRWM V IR IT VRWM VBR VC IPP Electrical characteristics per line@25℃( unless otherwise specified) Parameter Symbol Peak Reverse Working Voltage VRWM Breakdown Voltage Conditions Min. Typ. 26 Max. Units 24 V 30 V 1 μA VBR It =1mA Reverse Leakage Current IR VRWM =24V Clamping Voltage VC IPP=140A tP = 8/20μs 33 34 V Clamping Voltage VC IPP=185A tP = 8/20μs 35 38 V Junction Capacitance Cj VR=0V f = 1MHz 315 pF Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power ( tP = 8/20μS ) Ppp 6500 W Peak pulse current(tp=8/20us) IPP 185 A Lead Soldering Temperature TL 260 (10 sec) ℃ Operating Temperature TJ -55 to 150 ℃ TSTG -55 to 150 ℃ Storage Temperature Rev.06.1 2 www.prisemi.com Transient Voltage Suppressor PTVSHC1TF24VBH Typical Characteristics tf=8μs IPP – Peak Pulse Current - % of IPP 100 100 60 % Of Rated Power 80 tP =20μs(IPP /2) 40 80 60 40 20 20 0 0 5 10 15 t - Time -μs 20 25 0 30 0 25 Fig 1.Pulse Waveform 125 150 20 24 Fig 2.Power Derating Curve 40 350 Pulse waveform: tp=8/20us f=1MHz 35 300 30 C-Junction capacitance (pF) VC-Clamping Voltage (V) 50 75 100 TL – Lead Temperature - ℃ 25 20 15 10 250 200 150 100 50 5 0 0 0 50 100 150 IPP-Peak pulse current (A) 200 250 0 4 Fig 3. Clamping voltage vs. Peak pulse current 8 12 16 VR-Reverse voltage (V) Fig 4. Capacitance vs. Reveres voltage 100000 600 10000 IR(nA) Peak Pulse Power (W) 450 300 1000 150 100 1 0 10 100 Pulse Duration(us) 0 1000 Fig 5. Non Repetitive Peak Pulse Power vs. Pulse time Rev.06.1 25 50 75 100 Temperature (ºC) 125 150 Fig 6.Typical Leakage Current vs. Temperature 3 www.prisemi.com Transient Voltage Suppressor PTVSHC1TF24VBH Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 240 210 270 300 330 360 390 420 450 480 Time (sec) PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.1 4 www.prisemi.com Transient Voltage Suppressor PTVSHC1TF24VBH Product dimension (SOD-123FL) D e E A C g HE Dim Inches Millimeters MIN Typ MAX MIN Typ MAX A 0.037 0.038 0.039 0.95 0.97 1.00 C 0.002 0.006 0.010 0.05 0.15 0.25 HE 0.146 0.154 0.161 3.70 3.90 4.10 E 0.063 0.071 0.079 1.60 1.80 2.00 D 0.106 0.114 0.122 2.70 2.90 3.10 g 0.022 0.030 0.037 0.55 0.75 0.95 e 0.031 0.039 0.047 0.80 1.00 1.20 1.2 2.0 1.2 1.4 Unit:mm Suggested PCB Layout Ordering information Device Package Reel Shipping PTVSHC1TF24VBH SOD-123FL (Pb-Free) 7" 3000 / Tape & Reel Rev.06.1 5 www.prisemi.com Transient Voltage Suppressor PTVSHC1TF24VBH Load with information USER DIRECTION OF FEED 2.00 ± 0.05 4.00 ± 0.10 4.00 ± 0.10 Φ1.55 ± 0.05 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.10 Φ1.10 ± 0.10 Rev.06.1 6 Unit：mm www.prisemi.com Transient Voltage Suppressor PTVSHC1TF24VBH IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.1 7 www.prisemi.com
