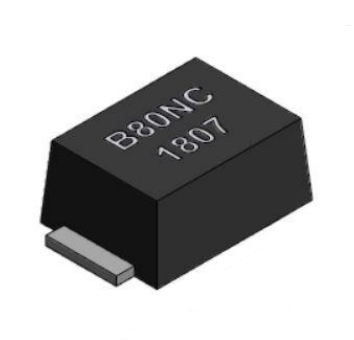

BS8000N-C-F

BS8000N-C-F

  • 厂商:

    BENCENT(槟城)

  • 封装:

    SMBF

  • 描述:

    晶闸管浪涌抑制器

  • 详情介绍
  • 数据手册
  • 价格&库存
BS8000N-C-F 数据手册
BS8000N-C-F Order Code: BS8000N-C-F Version: A2 2018/9/4 Thyristor Surge Suppresser Exterior Features Excellent capability of absorbing transient surge Quick response to surge voltage (nS Level) Eliminates overvoltage caused by fast rising transients Moisture sensitivity level: level 1 Non degenerative Bi-directional SMB-F Application Information rmation Package (Top View) Ethernet Specification` 1 Agency Approvals 2 Schematic Symbol Icon Description Compliance with 2011/65/EU Compliance withIEC61249-2-21:2003 1 2 Part Number and Electrical Parameter IDRM@VDRM① Part Number µA V MAX BS8000N-C-F 5 VS②@ IS V mA MAX 750 1000 VT@ IT V A MAX 800 4 2.2 IH C O③ mA pF MAX MAX 50 50 Absolute maximum ratings measured at TA= 25ºC RH = 45%-75% (unless otherwise noted). ① Hi-pot:AC500V ② Vs is measured at 100KV/S. ③ Off-state Capacitance is measured at VDC=2V, VRMS=1V, f=1MHz. 1/5 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS8000N-C-F Order Code: BS8000N-C-F Version: A2 2018/9/4 Thyristor Surge Suppresser Part Numbering System Mark BS 8000 N C F (1) (2) (3) (4) (5) (1) Bencent Semiconductor Surge Arrester (2) Off-state Voltage (3) Package: SMB (4) Rating Surge Voltage: 6KV (10/700μs) B80NC: Part Number (5) Flat feet 1807: July, 2018 V-I Curve Parameters Definition VDRM Peak Off-state Voltage IDRM Off-state Current VS Switching Voltage IS Switching Current IH Holding Current VT On-state Voltage IT On-state Current CO Off-state Capacitance +I IT IS IH IDRM -V +V VT VDR M VS ` -I Surge Ratings Current Waveform 8/20μs 8/20μs 5/320μs* 10/1000μs Voltage Waveform 1.2/50μs 1.2/50μs 10/700μs* 10/1000μs Ipp 400A 6KV@12Ω±25T 150A 100A -Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product; -Bencent only makes the test for 5/320μs@150A* (10/700μs@6KV), but for other IPP value derived from experience is just for reference only. Bencent will not take any obligation for these parameters, so before applying our parts, please make sure to verify the parameters listed in the above table. Thermal Considerations symbol TJ TS 2/5 Parameter Operating Junction Temperature Range Storage Temperature Range www.bencent.com.cn Physical Characteristics Characteristics Value Unit -40 to +150 ℃ Body Material -60 to +150 ℃ Terminal Finish Lead Material Copper Alloy UL recognized epoxy meeting flammability classification 94V-0 100% Matte-Tin Plated Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS8000N-C-F Order Code: BS8000N-C-F Thyristor Surge Suppresser Version: A2 2018/9/4 Typical Characteristics 3/5 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS8000N-C-F Order Code: BS8000N-C-F Version: A2 2018/9/4 Thyristor Surge Suppresser Environmental Characteristics Testing Items Technical Standards High Temperature Reverse Bias Test Temperature: 150±3℃, Bias=80%VDRM Time: 168H High Temperature Life Test Temperature: 150℃ Time: 168H High-low Temperature Cycle Test Temperature: From -40℃ to125℃ Dwell time: 30min, 10-100 cycles High Temperature &High Humidity Test Temperature: 85℃, Humidity: 85% Test time: 168H Pressure Cooker Test Temperature: 121℃, 2atm. Humidity: 100% Test time: 24H to 168H Resistance of Soldering Heat Temperature: 260±5℃ Time of dip soldering: 10s, 3times Note: The above testing items can be specified by customers by contacting Bencent service Product Dimensions REF mm inch A 5.4±0.3 0.213±0.012 B 4.4±0.2 0.173±0.008 C 2.0±0.1 0.079±0.004 D 3.3±0.3 0.130±0.012 E 0.8±0.3 0.031±0.012 F 0.25±0.05 0.010±0.002 G 2±0.3 0.079±0.012 Recommended Soldering Pad 4/5 www.bencent.com.cn REF mm inch A 5.9 0.232 B 3.4 0.134 C 2.5 0.098 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS8000N-C-F Order Code: BS8000N-C-F Version: A2 2018/9/4 Thyristor Surge Suppresser Reflow Profile Pre Heat Pb-Free assembly Temperature Min 150°C Temperature Max 200°C Time (min to max) 60 – 180 seconds Average ramp up rate (Liquid)Tamp (TL) to peal TS (max) to TL - Ramp-up Rate - Temperature (TL) Reflow (Liquid) - Temperature (TL) Peak Temperature (TP) TP TP 3°C/second max 3°C/second max 217°C 60 – 150 seconds Temperature (TP) TL TS(max) Ramp-down Preheat TS(min) 260 +0/-5 °C Time within 5°C of actual peak Critical Zone TL to TP Ramp-up TL Temperature Reflow Condition TS TL 8-15 seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max. Do not exceed 260°C Package Reel Information 5/5 REF mm inch A 3.9±0.2 0.154±0.008 B 5.8±0.2 0.228±0.008 d 1.5±0.1 0.059±0.004 D 330.0 13.0 D1 100±3 3.937±0.118 D2 13±0.3 0.512±0.012 E 1.75±0.2 0.069±0.008 F 5.5±0.25 0.217±0.010 P 8.0±0.2 0.315±0.008 P0 4.0±0.2 0.157±0.008 P1 2.0±0.2 0.079±0.008 W 12.0±0.2 0.472±0.008 W1 16.8±2.0 0.661±0.079 OUTLINE REEL (PCS) PER CARTON (PCS) REEL DIAMETERS (mm) L W H TAPING 3,000 48,000 330 360 360 385 www.bencent.com.cn CARTON SIZE(mm) Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
BS8000N-C-F
物料型号为 BS8000N-C-F,是一款双向可控硅浪涌保护器。

器件简介表明其具有吸收瞬态浪涌的优良能力,响应速度极快(纳秒级),能够消除快速上升瞬态引起的过电压。

引脚分配为2脚封装,且具有双向特性。

参数特性包括最大持续电压750V、最大浪涌电压1000V、最大浪涌电流800A、最大导通电压4V、最大导通电流2.2A、最大关断电流50mA、最大偏置电容50pF。

功能详解指出其具有双向保护功能,适用于以太网等应用。

封装信息为SMB-F,尺寸信息和回流焊建议也在文档中给出。

该器件符合RoHS标准和IEC61249-2-21:2003标准。
