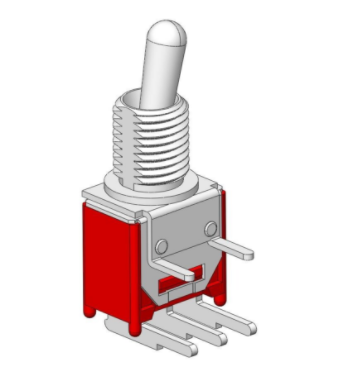

2MS1T2B2M6QES

2MS1T2B2M6QES

  • 厂商:

    DAILYWELL(德利威)

  • 封装:

    SW5_8.13X20.01MM_TM

  • 描述:

    超小型拨动开关

  • 数据手册
  • 价格&库存
2MS1T2B2M6QES 数据手册
2M Series Sub-Miniature Toggle Switches SPECIFICATIONS 2M Toggle Switches CONTACT RATING: Dependent upon contact material See Page 29. MECHANICAL LIFE: 30,000 make-and-break cycles. CONTACT RESISTANCE: 20 mȟġmax. initial @ 2-4VDC 100mA for both silver and gold plated contacts. INSULATION RESISTANCE: 1,000 Mȟġmin. DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level. OPERATING TEMPERATURE: -40°C to 85°C. MATERIALS CASE: Diallyl phthalate (DAP) (UL94v-0). ACTUATOR: Brass, chrome plated. BUSHING: Brass or zinc, nickel plated. HOUSING: Stainless Steel. SWITCH SUPPORT: Brass,tin plated. TERMINAL/CONTACT: Brass or copper alloy,with Silver or gold plated.(See Page 29 ) HOW TO ORDER MODEL NO. ACTUATOR Model NO. 2MS1 SP On-None-On 2MS2 SP On-None-Mom. 2MS3 SP On- Off -On 2MS4 SP Mom.-Off-Mom. 2MS5 SP On- Off -Mom. 2MS6 SP Off- None -On. 2MD1 DP On-None-On 2MD2 DP On-None-Mom. 2MD3 DP On- Off -On. 2MD6 DP On- On -On. Bushing B1 B2 B3 B4 B5 B6 B7 B8 B25 24 TERMINATIONS TERMINAL PLATING SEAL RoHS SOLDERING Actuator T1 T2 T3 T4 T5 TL1 9.40 high 5.33 high 7.37 high 10.41 high 5.59 high Locking lever 16.00 high TL2 Locking lever 16.26 high Terminal plating Q Silver R Gold C Gold over silver Seal E EPOXY (std) N NO EPOXY Terminations M1 Solder Lug M2 PC thru-hole M51 15.24 high, wire wrap M52 6.00 high, wire wrap M6 Right angle, PC thru-hole M6N Right angle, snap-in, PC thru-hole M7 Vertical right angle, PC thru-hole M7N Vertical right angle, snap-in, PC thru-hole VS2 V-bracket V2N Snap-in V-bracket VS3 V-bracket RoHS soldering V3N Snap-in V-bracket S RoHS & Lead Free 5.59 high,flat (thd) *2MS6 model type not applicable to 5.59 high,flat (non-thd) M6/M6N/M7/M7N terminations 5.59 high,keyway (thd) 5.59 high,keyway (non-thd) 7.87 high,flat (thd) 7.87 high,flat (non-thd) 6.60 high,keyway (thd) 6.60 high,keyway (non-thd) 8.00 high,keyway,locking lever (thd ) We have invented the rules www.dailywell.com.tw BUSHING 2M Series Sub-Miniature Toggle Switches SWITCH FUNCTION POS.1 POS.2 POS.3 Q2211 2MS1 ON NONE ON Q2212 2MS2 ON NONE MOM Q2213 2MS3 ON OFF ON Q2214 2MS4 MOM OFF MOM Q2215 2MS5 ON OFF MOM Q2216 2MS6 OFF NONE ON OPEN N/A Q2221 2MD1 ON NONE ON 2-3,5-6 N/A Q2222 2MD2 ON NONE MOM Q2223 2MD3 ON OFF ON Q2226 2MD6 ON ON ON POS.2 POS.3 2-3 N/A 2-1 2M POS.1 Toggle Switches CONNECTED TERMINALS / SCHEMATIC SWITCH FUNCTION UL/CSA MODEL NO. MODEL NO. POLES NO. SP DP 2 (COMM) 1 2 (COMM) 1 2 (COMM) OPEN 3 3 3 1 3-1 2-1,5-4 2(COMM) 5 4 OPEN 6 1 3 6 2-1,5-4 2-3,5-4 2-3,5-6 5 4 MOM=MOMENTARY Please check the availability in advance before order POLE OPTIONS .370 9.40 .220 5.59 .340 8.64 FLAT Ø.236 Ø6.00 Ø.100 Ø2.54 .320 8.13 .020 0.51 .173 4.39 10-48 UNS-2A .200 5.08 3 2 1 .200 5.08 3 2 1 .110 2.79 .060 1.52 .160 4.06 3 1 2MS6 Models : Omit 2nd terminal SPDT Part No. Shown : 2MS1T1B1M1QES .370 9.40 Ø.236 Ø6.00 Ø.100 Ø2.54 .320 8.13 .220 5.59 .340 8.64 FLAT .360 9.14 .200 5.08 6 5 4 .173 4.39 10-48 UNS-2A .160 4.06 .020 0.51 .110 2.79 6 5 4 3 2 1 .060 1.52 .160 4.06 DPDT Part No. Shown : 2MD1T1B1M1RES We have invented the rules www.dailywell.com.tw 25 2M Series Sub-Miniature Toggle Switches ACTUATOR OPTIONS T1 T2 Ø.100 Ø2.54 2M T4 T5 Ø.100 Ø2.54 Ø.100 Ø2.54 Ø.100 Ø2.54 .370 9.40 Toggle Switches T3 .290 7.37 .210 5.33 Ø.100 Ø2.54 .410 10.41 .220 5.59 .310 7.87 .220 5.59 .310 7.87 .220 5.59 .220 5.59 NONE: T1,T2,T3 Actuator shown with B1 to B4 bushing, subtract 0.09 ( 2.29 ) for B5 bushing, subtract 0.04 ( 1.02 ) for B7 bushing. T4,T5 Actuator shown with B5,B6 bushing, add 0.09 ( 2.29 ) for B1 to B3 bushing, add 0.05 ( 1.27 ) for B7 bushing. Std for M1,M2 Terminal sub .016(.040) for M6,M7,VSX TL1B25 TL2B25 .215 5.44 1. .215 5.44 2. 1. 2 Positions Lock 2. 3 Positions Lock .640 .579 16.26 14.73 UNLOCKED LOCKED .630 .567 16.00 14.40 UNLOCKED LOCKED 1/4-40 UNS-2A 1/4-40 UNS-2A .030 0.76 .337 8.56 .030 0.76 .337 8.56 BUSHING OPTIONS B5 THD B6 NON-THD B3 THD B4 NON-THD B1 THD B2 NON-THD B7 THD B8 NON-THD .030 0.76 Ø.236 Ø6.00 Ø.236 Ø6.00 .173 4.39 10-48 UNS-2A .220 5.59 .015 0.38 10-48 UNS-2A .020 0.51 .220 5.59 Ø.280 Ø7.10 Ø.280 Ø7.10 .040 1.02 .244 6.20 .225 5.72 1/4-40 UNS-2A 1/4-40 UNS-2A .310 7.87 .260 6.60 .020 0.51 .020 0.51 .028 0.71 .020 0.51 TERMINATION OPTIONS M1 Solder lug M2 PC Thru-hole .110 2.79 .110 2.79 .060 1.53 .160 4.06 EPOXY SEAL .060 1.52 .030 0.76 EPOXY SEAL .030 0.76 .060 1.52 .160 4.06 .160 4.06 EPOXY SEAL .130 3.30 .030 0.76 EPOXY SEAL .030 0.76 Double Pole .020(0.51) THK. 26 We have invented the rules www.dailywell.com.tw .130 3.30 .200 5.08 Double Pole .020(0.51) THK. 2M Series Sub-Miniature Toggle Switches M52 Wire Wrap .070 1.78 EPOXY SEAL .600 15.24 .030 0.76 .030 0.76 EPOXY SEAL .600 15.24 EPOXY SEAL .236 6.00 .030 0.76 .030 0.76 .200 5.08 .236 6.00 .200 5.08 .071 1.80 .060 1.50 Double Pole Double Pole .020(0.51) THK. 2M EPOXY SEAL .070 1.78 Toggle Switches M51 Wire Wrap .020(0.51) THK. M6 P.C. MOUNTING .220 5.59 FLAT EPOXY SEAL .194 4.93 .030 0.76 .200 5.08 .020 0.51 .320 8.13 .200 5.08 1 .158 4.01 .016 0.41 .100 2.54 .130 3.30 .030 0.76 .200 5.08 .200 5.08 3 2 1 1 2 3 .020 0.51 .100 2.54 .200 5.08 Ø.043 Ø1.09 SPDT Part No. Shown : 2MS1T2B2M6RES M6 FLAT .200 5.08 .194 4.93 .030 0.76 .020 0.51 .130 3.30 .360 9.14 1 4 .158 4.01 .016 0.41 P.C. MOUNTING .320 8.13 EPOXY SEAL .220 5.59 .200 5.08 6 5 4 3 2 1 4 5 6 .100 2.54 .030 0.76 .020 0.51 .100 2.54 .200 5.08 .100 2.54 .100 2.54 .200 5.08 .200 5.08 Ø.043 Ø1.09 DPDT Part No. Shown : 2MD1T2B2M6QES M7 FLAT .220 5.59 .194 4.93 .200 5.08 EPOXY SEAL .020 0.51 .130 3.30 .030 0.76 .173 4.39.158 4.01 .016 0.41 .200 5.08 3 .320 8.13 P.C. MOUNTING 3 2 1 3 2 1 .200 5.08 2 .100 2.54 .200 5.08 Ø.043 Ø1.09 1 .100 2.54 .030 0.76 SPDT Part No. Shown : 2MS1T2B2M7RES We have invented the rules www.dailywell.com.tw 27 2M Series Sub-Miniature Toggle Switches M7 2M Toggle Switches FLAT .020 0.51 .220 5.59 .194 4.93 P.C. MOUNTING EPOXY SEAL .020 0.51 .130 3.30 .173 4.39 .030 0.76 6 .200 5.08 6 4 .100 2.54 .200 5.08 .200 5.08 3 2 1 .320 5 8.13 3 2 1 .200 5.08 5 .158 4.01 .360 9.14 6 5 4 Ø.043 Ø1.09 4 .200 5.08 .100 2.54 .030 0.76 .100 2.54 DPDT Part No. Shown : 2MD1T2B2M7RES VS2 - VS3 .194 4.93 .355 9.02 .130 3.30 1 2 3 .030 0.76 .200 5.08 .100 2.54 .100 2.54 .220 5.59 .016 0.41 .200 5.08 P.C. MOUNTING EPOXY SEAL 3 2 1 .400 10.16 .400 10.16 Ø.043 Ø1.09 .020 0.51 .100 2.54 3 2 1 .400 10.16 Ø.043 Ø1.09 VS2 VS3 SPDT Part No. Shown : 2MS1T2B2VS2QES VS2 - VS3 .194 4.93 .360 9.14 .352 8.94 .130 3.30 .100 2.54 .220 5.59 4 5 6 .016 0.41 .200 5.08 .100 2.54 P.C. MOUNTING .100 2.54 EPOXY SEAL .020 0.51 .400 10.16 DPDT .400 10.16 3 2 1 6 5 4 .100 2.54 .400 10.16 Ø.043 Ø1.09 Ø.043 Ø1.09 VS2 28 We have invented the rules www.dailywell.com.tw V2N V3N .100 2.54 .200 5.08 VS3 SNAP-IN TERMINATION OPTIONS M7N 6 5 4 .200 5.08 Part No. Shown : 2MD1T2B2VS2QES M6N 3 2 1 2M Series Sub-Miniature Toggle Switches PANEL MOUNTING 10-48 BUSHING .179 4.55 .022 0.55 With std. locking ring Without locking ring Ø.250 Ø6.35 Ø.094 Ø 2.38 .033 0.85 .240 6.10 Ø.250 Ø6.35 .240 6.10 .234 5.95 Without locking ring 2M .010 0.25 Ø.250 Ø6.35 Ø.195 Ø4.95 With std. locking ring HARDWARE 10-48 NUT LOCKWASHER LOCKWASHER .315 8.00 Toggle Switches Ø.094 Ø2.38 Ø.195 Ø 4.95 Ø.195 Ø4.95 .023 .0.58 1/4 IN. BUSHING .047 1.19 Ø.310 Ø7.87 .276 7.00 Ø.425 Ø10.80 10-48 UNS-2A .018 THK 0.46 MNU-2M01 .018 THK 0.46 MNU-2M03 Supplied standard with B1/ B3 bushing MNU-1M03 Supplied standard with B1 / B3 bushing 1/4 NUT Supplied standard with B5 / B7 bushing LOCKING RING LOCKING RING .362 9.19 Ø.468 Ø11.89 .312 7.92 .029 0.74 Ø.468 Ø11.89 .029 0.74 1/4-40 UNS-2A .065 1.65 .062 1.57 .065 1.65 MNU-1M02 MNU-1M01A Supplied standard with B5/ B7 bushing Supplied standard with B7 bushing MNU-1M11 Supplied standard with B5 bushing CONTACT MATERIAL OPTIONS CONTACT PLATING Q C R Silver Gold over Silver Gold TERMINAL PLATING RATINGS Q = Silver 3 Amps with resistant load @ 120VAC or 28VDC C = Gold over silver 1 Amps with resistant load @ 250VAC R = Gold 0.4 Volt - Amps ( VA ) max. @ 20V max. ( AC or DC ) SOLDERING PROCESSES MANUAL SOLDERING: Use soldering iron of 30 watts, controlled at 350oC approximately 5 seconds while applying solder. WAVE SOLDERING: Recommended Soldering Temperature: 270 ± 5oC Duration of Solder Immersion: Max 5 sec. (PCB is 1.6mm in thickness) We have invented the rules www.dailywell.com.tw 29
2MS1T2B2M6QES 价格&库存

很抱歉,暂时无法提供与“2MS1T2B2M6QES”相匹配的价格&库存,您可以联系我们找货

免费人工找货
2MS1T2B2M6QES
    •  国内价格
    • 1+8.16480
    • 10+6.87960
    • 30+6.17760
    • 270+5.18400

    库存:410
