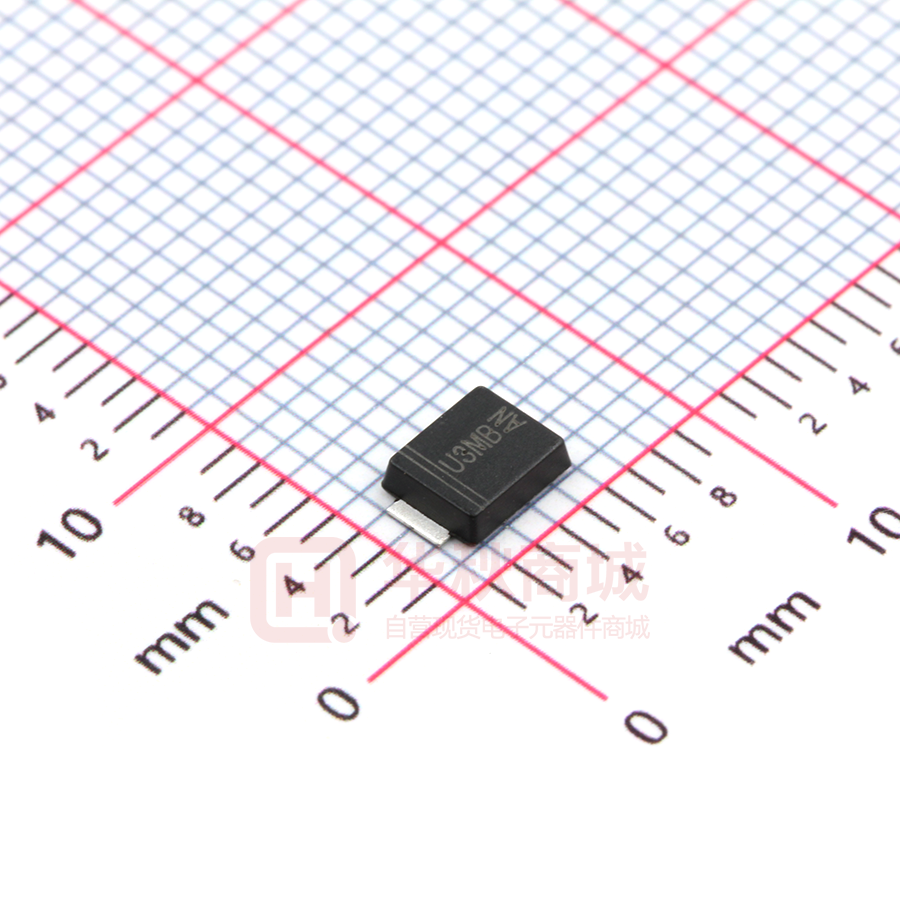

US3MBF

Surface Mount Ultrafast Recovery Rectifier FEATURES Reverse Voltage – 50V~1000 V Forward Current – 3.0 A • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Superfast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA • Case: SMBF • Terminals: Solderable per MIL-STD-750, 750, Method 2026 • Approx. Weight: 57mg / 0.002oz Maximum Ratings and Electrical characteristics char Ratings at 25℃ ambient temperature unless otherwise specified.Single phase half-wave wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. 1）Measured at 1 MHz and applied reverse voltage of 4 V D.C 2 ) Measured with IF = 0.5 A, IR = 1 A, Irr = 0.25 A 3）P.C.B. mounted with 0.5 X 0.5" (12.7 X 12.7 mm2) copper pad areas. 1 of 3 2 of 3 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SMBF 3 of 3
