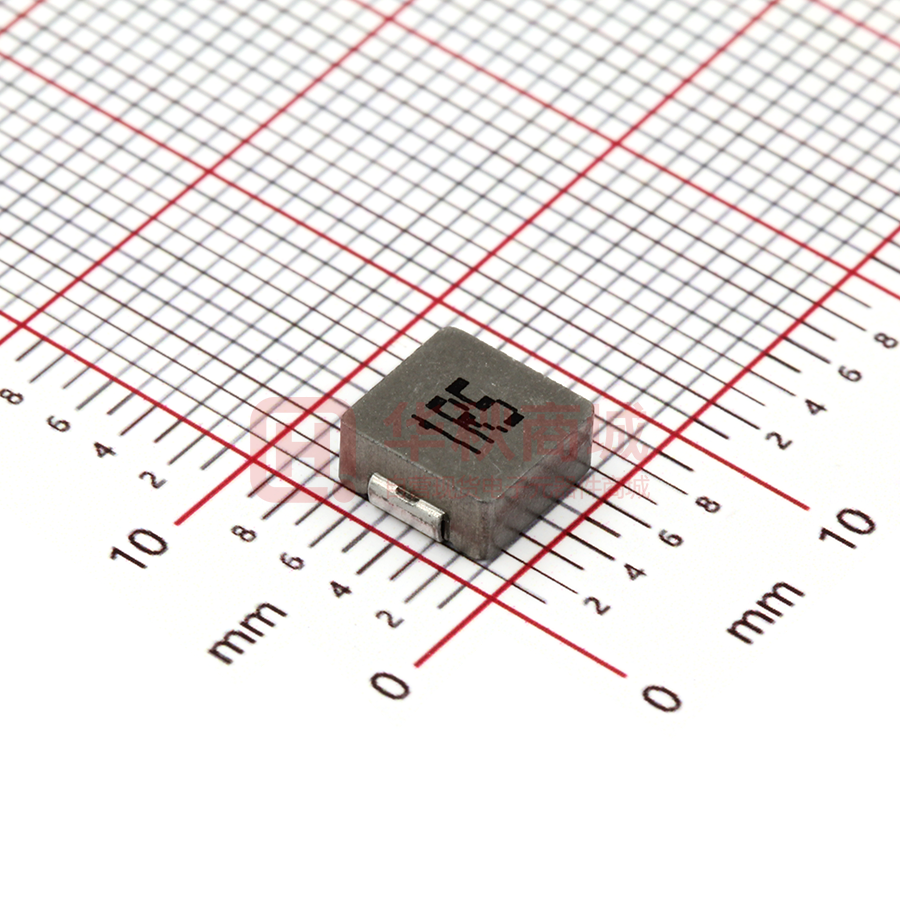

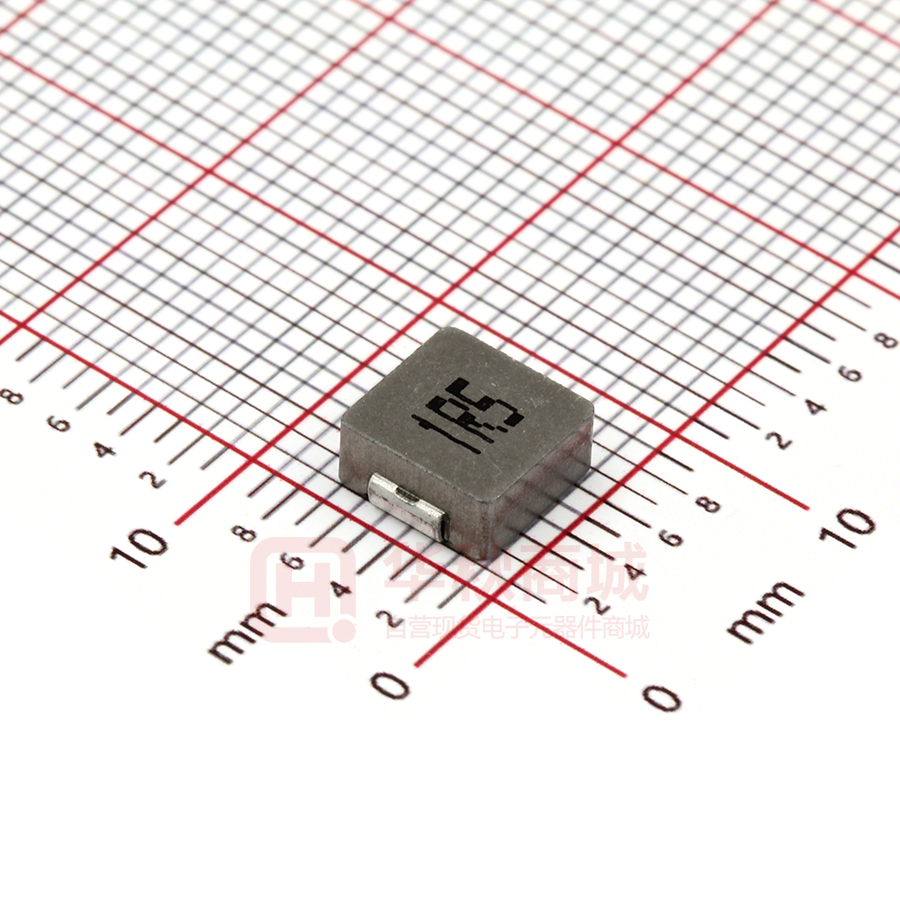

BMMI000606301R5MX1

Molding Power Inductors – BMMI Series BMMI Series BMMI Series is designed for low profile type with low RDC and ultra large current. Its molded magnetic shielded type is suitable for high-density mounting and ultra low buzz noise. Soldering conditions can be easily confirmed when mounting onto the board. This series also provides customers with embossed carrier type packaging for automatic mounting machine. Features Applications  RoHS, Halogen Free and REACH Compliance  Low resistance and high current rating  Magnetic core made by high performance magnetic powder     Laptop and desktop applications High current power supplies PMIC DC/DC converters Product Identification Shape and Dimensions Recommended Pattern Dimensions in mm Dimensions in mm TYPE A B C D E TYPE A B C BMMI00040412 4.45±0.25 4.06±0.25 1.2Max 2.0±0.3 0.76±0.3 BMMI00040412 2.5 2.2 5.2 BMMI00050515 5.49±0.25 5.18±0.22 1.5Max 2.0±0.3 1.0±0.3 BMMI00050515 2.5 2.2 5.99 BMMI00060612 6.95±0.35 6.6±0.2 1.2Max 3.0±0.3 1.6±0.3 BMMI00060612 3.5 3.7 8.4 BMMI00060630 6.95±0.35 6.6±0.2 3.0Max 3.0±0.3 1.6±0.3 BMMI00060630 3.5 3.7 8.4 BMMI00131350 13.2±0.5 12.9Max 5.0Max 3.5±0.5 2.3±0.3 BMMI00131350 5.0 8.0 14.5 BMMI00131365 13.2±0.5 12.9Max 6.5Max 3.5±0.5 2.3±0.3 BMMI00131365 5.5 8.0 14.5 Molding Power Inductors – BMMI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC(mΩ) Max(Typ.) Isat(A) Max(Typ.) Irms(A) Max(Typ.) Marking BMMI000404124R7MX1 4.7 20 100 145(124) 2.8(3.2) 2.1(2.4) 4R7 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.25V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Molding Power Inductors – BMMI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC(mΩ) Max(Typ.) Isat(A) Max(Typ.) Irms(A) Max(Typ.) Marking BMMI000505151R0MX2 1.0 20 100 23(19) 8.1(9.5) 5.8(6.5) 1R0 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.25V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Molding Power Inductors – BMMI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC(mΩ) Max(Typ.) Isat (A)Typ. Irms (A)Typ. Marking BMMI000606121R0MX1 1.0 20 100 29(25) 7.5 6.0 1R0 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.25V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Molding Power Inductors – BMMI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC(mΩ) Max(Typ.) Isat(A) Max(Typ.) Irms(A) Max(Typ.) Marking BMMI00060630R30MX1 0.22 20 100 2.4(2.0) 27(31) 25.5(28) R22 BMMI00060630R47MX1 0.47 20 100 3.3(2.9) 20(23) 20(23) R47 BMMI000606301R0MX1 1.0 20 100 6.4(5.6) 14(16) 14.4(16) 1R0 BMMI000606301R5MX1 1.5 20 100 8.9(7.7) 12.7(14.8) 11(12) 1R5 BMMI000606302R2MX1 2.2 20 100 12.8(11) 12(14) 9(10) 2R2 BMMI000606303R3MX1 3.3 20 100 21(18.5) 10(11) 7(8) 3R3 BMMI000606304R7MX1 4.7 20 100 26(23.6) 7(8) 6(6.7) 4R7 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.25V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Molding Power Inductors – BMMI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC(mΩ) Max(Typ.) Isat (A)Typ. Irms (A)Typ. Marking BMMI001313503R3MX1 3.3 20 100 9.2(7.7) 32 15 3R3 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 20% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.25V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Molding Power Inductors – BMMI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC(mΩ) Max(Typ.) Isat(A) Max(Typ.) Irms(A) Max(Typ.) Marking BMMI001313653R3MX1 3.3 20 100 4.4(3.75) 40(42) 20(22) 3R3 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.25V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Molding Power Inductors – BMMI Series Packaging Specifications Tape Dimensions Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE A B K T D E W P P0 P2 A B C D E F PCS / REEL BMMI00040412 4.5 4.9 1.7 0.35 1.5 1.75 12 8 4 2 330 100 21.5 13 12.4 17.4 2000 BMMI00050515 5.4 5.8 1.95 0.3 1.5 1.75 12 8 4 2 330 100 21.5 13 12.4 17.4 1000 BMMI00060612 6.8 7.5 1.5 0.3 1.5 1.75 16 12 4 2 330 100 21.5 13 16.4 21.4 2000 BMMI00060630 6.9 7.6 3.4 0.35 1.5 1.75 16 12 4 2 330 100 21.5 13 16.4 21.4 1000 BMMI00131350 13.4 14.0 5.0 0.4 1.5 1.75 24 16 4 2 330 100 21.5 13 24.2 29.2 250 BMMI00131365 13.4 14.1 6.8 0.4 1.5 1.75 24 16 4 2 330 100 21.5 13 24.2 29.2 250
