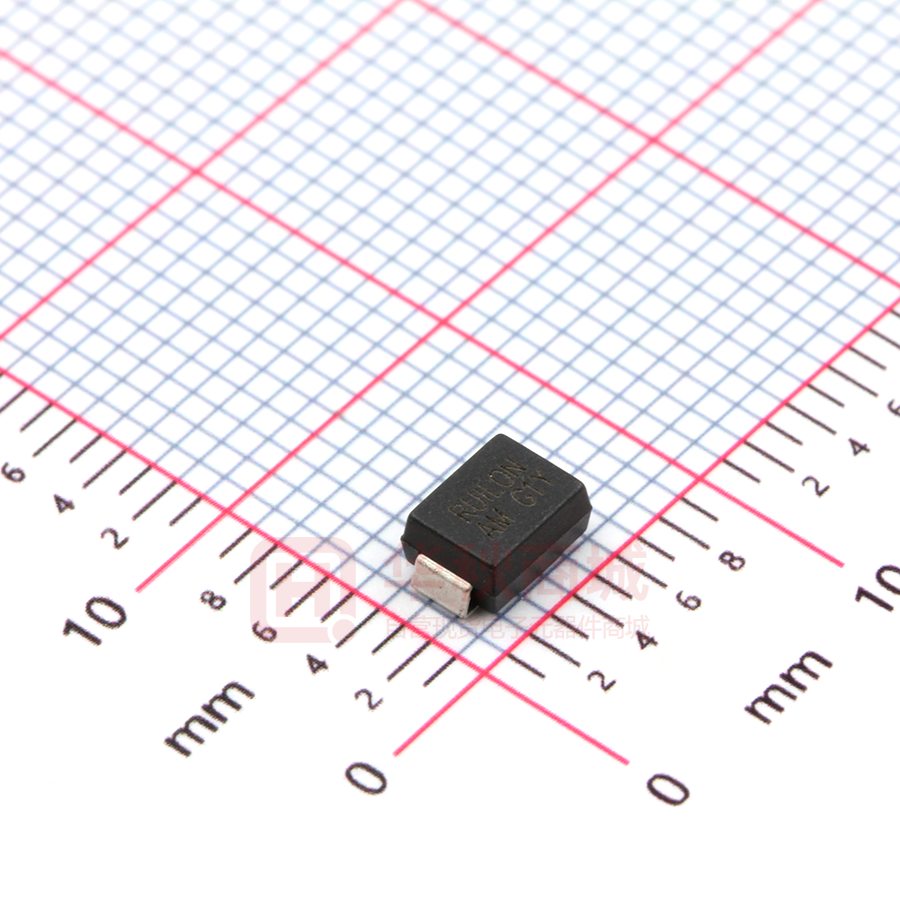

SMBJ7.0CA

Transient Voltage Suppressors (TVS) SMBJ Series Mechanical Data l Case: Molded plastic l Epoxy: UL 94V-0 rate flame retardant l Lead: Solderable per MIL-STD-750, 750, method 2026 l Polarity: Color band denotes cathode end except Bipolar l Mounting position: Any Features l Fast response time l Low incremental surge resistance l Matte tin lead–free Plated Electrical symbol l Halogen free and RoHS compliant l Typical IR less than 1μA above 10V l Compatible with industrial standard package DO DO-214AA BI l For surface mounted applications to optimize board space l 600W peak pulse power capability with at 10/1000μs Anode Cathode waveform, repetition rate (duty cycle): 0.01% l High temperature soldering:260°C/10 0 seconds at terminals UNI Part Number Code S M B J x x x C Reverse Stand-Off Voltage Series code A 5% Voltage Tolerance Blank:Uni-Directional C:Bi-Directional Mechanical Characteristics Rating Symbol Value Units Peak Pulse Power Dissipation at TA=25ºC by 10/1000μs Waveform (Fig.2)(Note 1), (Note 2) PPP 600 W Power Dissipation on Infinite Heat Sink at TL=75°C(Fig.6) PD 5.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 100 A VF 3.5/5.0 V TJ ，TSTG -55 to 150 °C (3) Maximum instantaneous forward voltage at 50 A for unidirectional only Operating Temperature Range Storage Temperature Range Notes: 1. Non-repetitive repetitive current pulse, per Fig.4 and derated above TA=25ºC per Fig. 3. 2. Mounted on 5.0x5.0mm copper pad to each terminal. 3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional device only, duty cycle=4 per minute maximum. Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2019-11-26 Page:1 Transient Voltage Suppressors (TVS) SMBJ Series Electrical Characteristics Type Number Reverse Stand-Off Voltage Marking VRWM Breakdown Voltage VBR @IT Min Max Test Current Max. Max. Clamping Peak Pulse Reverse Voltage Current Leakage 10/1000μs 10/1000μs IT VC@IPP IPP IR@VRWM UNI BI UNI BI V V V mA V A µA SMBJ5.0A SMBJ5.0CA KE AE 5.0 6.40 7.07 10 9.2 65.2 500 SMBJ6.0A SMBJ6.0CA KG AG 6.0 6.67 7.37 10 10.3 58.3 300 SMBJ6.5A SMBJ6.5CA KK AK 6.5 7.22 7.98 10 11.2 53.6 200 SMBJ7.0A SMBJ7.0CA KM AM 7.0 7.78 8.60 10 12.0 50.0 100 SMBJ7.5A SMBJ7.5CA KP AP 7.5 8.33 9.21 1 12.9 46.6 50 SMBJ8.0A SMBJ8.0CA KR AR 8.0 8.89 9.83 1 13.6 44.2 50 SMBJ8.5A SMBJ8.5CA KT AT 8.5 9.44 10.4 1 14.4 41.7 30 SMBJ9.0A SMBJ9.0CA KV AV 9.0 10.00 11.1 1 15.4 39.0 30 SMBJ10A SMBJ10CA KX AX 10.0 11.10 12.3 1 17.0 35.3 3 SMBJ11A SMBJ11CA KZ AZ 11.0 12.20 13.5 1 18.2 33.0 1 SMBJ12A SMBJ12CA LE BE 12.0 13.30 14.7 1 19.9 30.2 1 SMBJ13A SMBJ13CA LG BG 13.0 14.40 15.9 1 21.5 28.0 1 SMBJ14A SMBJ14CA LK BK 14.0 15.60 17.2 1 23.2 25.9 1 SMBJ15A SMBJ15CA LM BM 15.0 16.70 18.5 1 24.4 24.6 1 SMBJ16A SMBJ16CA LP BP 16.0 17.80 19.7 1 26.0 23.1 1 SMBJ17A SMBJ17CA LR BR 17.0 18.90 20.9 1 27.6 21.8 1 SMBJ18A SMBJ18CA LT BT 18.0 20.00 22.1 1 29.2 20.6 1 SMBJ20A SMBJ20CA LV BV 20.0 22.20 24.5 1 32.4 18.6 1 SMBJ22A SMBJ22CA LX BX 22.0 24.40 26.9 1 35.5 16.9 1 SMBJ24A SMBJ24CA LZ BZ 24.0 26.70 29.5 1 38.9 15.5 1 SMBJ26A SMBJ26CA ME CE 26.0 28.90 31.9 1 42.1 14.3 1 SMBJ28A SMBJ28CA MG CG 28.0 31.10 34.4 1 45.4 13.3 1 SMBJ30A SMBJ30CA MK CK 30.0 33.30 36.8 1 48.4 12.4 1 SMBJ33A SMBJ33CA MM CM 33.0 36.70 40.6 1 53.3 11.3 1 SMBJ36A SMBJ36CA MP CP 36.0 40.00 44.2 1 58.1 10.4 1 SMBJ40A SMBJ40CA MR CR 40.0 44.40 49.1 1 64.5 9.3 1 SMBJ43A SMBJ43CA MT CT 43.0 47.80 52.8 1 69.4 8.7 1 SMBJ45A SMBJ45CA MV CV 45.0 50.00 55.3 1 72.7 8.3 1 SMBJ48A SMBJ48CA MX CX 48.0 53.30 58.9 1 77.4 7.8 1 SMBJ51A SMBJ51CA MZ CZ 51.0 56.70 62.7 1 82.4 7.3 1 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2019-11-26 Page:2 Transient Voltage Suppressors (TVS) SMBJ Series Electrical Characteristics Type Number Reverse Stand-Off Voltage Marking VRWM Breakdown Voltage VBR @IT Min Max Test Current Max. Max. Clamping Peak Pulse Reverse Voltage Current Leakage 10/1000 10/1000μs 10/1000μs IT VC@IPP IPP IR@VRWM UNI BI UNI BI V V V mA V A µA SMBJ54A SMBJ54CA NE DE 54.0 60.00 66.3 1 87.1 6.9 1 SMBJ58A SMBJ58CA NG DG 58.0 64.40 71.2 1 93.6 6.5 1 SMBJ60A SMBJ60CA NK DK 60.0 66.70 73.7 1 96.8 6.2 1 SMBJ64A SMBJ64CA NM DM 64.0 71.10 78.6 1 103.0 5.9 1 SMBJ70A SMBJ70CA NP DP 70.0 77.80 86.0 1 113.0 5.3 1 SMBJ75A SMBJ75CA NR DR 75.0 83.30 92.1 1 121.0 5.0 1 SMBJ78A SMBJ78CA NT DT 78.0 86.70 95.8 1 126.0 4.8 1 SMBJ85A SMBJ85CA NV DV 85.0 94.40 104.0 1 137.0 4.4 1 SMBJ90A SMBJ90CA NX DX 90.0 100.0 111.0 1 146.0 4.1 1 SMBJ100A SMBJ100CA NZ DZ 100.0 111.0 123.0 1 162.0 3.7 1 SMBJ110A SMBJ110CA PE EE 110.0 122.0 135.0 1 177.0 3.4 1 SMBJ120A SMBJ120CA PG EG 120.0 133.0 147.0 1 193.0 3.1 1 SMBJ130A SMBJ130CA PK EK 130.0 144.0 159.0 1 209.0 2.9 1 SMBJ150A SMBJ150CA PM EM 150.0 167.0 185.0 1 243.0 2.5 1 SMBJ160A SMBJ160CA PP EP 160.0 178.0 197.0 1 259.0 2.3 1 SMBJ170A SMBJ170CA PR ER 170.0 189.0 209.0 1 275.0 2.2 1 SMBJ180A SMBJ180CA PT ET 180.0 201.0 222.0 1 292.0 2.1 1 SMBJ190A SMBJ190CA PV EV 190.0 209.0 243.0 1 306.0 2.0 1 SMBJ200A SMBJ200CA PX EX 200.0 224.0 247.0 1 324.0 1.9 1 SMBJ210A SMBJ210CA PZ EZ 210.0 231.0 268.0 1 340.0 1.8 1 SMBJ220A SMBJ220CA QE FE 220.0 246.0 272.0 1 356.0 1.7 1 SMBJ250A SMBJ250CA QG FG 250.0 279.0 309.0 1 405.0 1.5 1 SMBJ300A SMBJ300CA QK FK 300.0 335.0 371.0 1 486.0 1.3 1 SMBJ350A SMBJ350CA QM FM 350.0 391.0 432.0 1 567.0 1.1 1 SMBJ400A SMBJ400CA QP FP 400.0 447.0 494.0 1 648.0 0.9 1 SMBJ440A SMBJ440CA QR FR 440.0 492.0 543.0 1 713.0 0.9 1 SMBJ500A SMBJ500CA QV FV 500.0 558.0 618.0 1 762.0 0.8 1 Notes: For bidirectional type having VR of 10V and less, the IR limit is double. Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2019-11-26 Page:3 Transient Voltage Suppressors (TVS) SMBJ Series I-V Curve Characteristics Uni-directional I Bi-directional IPP VC VBR VR IR VF IT IT IR VC VBR VR V IR IT VR VBR VC V IPP IPP PPPM Peak Pulse Power Dissipation -- Max power dissipation VR Stand-off Voltage -- Maximum voltage that can be applied to the TVS without operation VBR Breakdown Voltage -- Maximum voltage that flows though the TVS at a specified test current (I T) VC Clamping Voltage -- Peak voltage measured across the TVS at a spe specified cified Ippm (peak impulse current) IR Reverse Leakage Current -- Current measured at VR VF Forward Voltage Drop for Uni-directional directional Ratings and Characteristic Curves (TA=25°C unless otherwise noted) Figure 1 - TVS Transients Clamping Waveform Figure 2 - Peak Pulse Power Rating Curve 100 PPPM-Peak Pulse Power (kW) Voltage or Current Voltage Transients Voltage Across TVS Current Through TVS TJ initial = Tamb 1 0.1 0.001 Time Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. stacked-die, 800W at 10x1000μs, 25°C 10 Revised: 2019-11-26 Single die, 600W at 10x1000μs, 25°C 0.01 0. 0.1 1 10 td-Pulse Pulse Width (ms) ( Page:4 Transient Voltage Suppressors (TVS) SMBJ Series Ratings and Characteristic Curves (TA=25°C unless otherwise noted) Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % Figure 3 - Pulse Derating Curve Figure 4 - Pulse Waveform 100 IPPM - Peak Pulse Cur rent, % IRSM 150 80 60 40 20 tr=10μsec 25 50 75 100 125 Peak Value IPPM 100 Half Value IPPM ( IPPM ) 2 50 10/1000μsec.Waveform as defined by R.E.A td 0 0 0 150 175 0 1.0 Bi-directional directional V=0V 1000 Cj (pF) Uni-directional directional V=0V Uni-directional @VR Bi-directional @VR Tj=25ºC f=1.0MHz Vsig=50mVp-p 1.0 10.0 100.0 1000.0 PM(AV), Steady State Power Dissipation (W) 10000 1 3.0 4.0 Figure 6 - Steady State Power Derating Curve Figure 5 - Typical Junction Capacitance 10 2.0 t-Time(ms) TA-Ambient temperature (ºC) C) 100 TJ =25°C Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM 5.0 4.0 3.0 2.0 60Hz Resistive or Inductive Load 1.0 0.0 VBR - Reverse Breakdown Voltage (V) 0 25 50 75 100 125 150 TL-Lead Lead Temperature(ºC) Temperature( 175 200 Figure 7 - Maximum Non-Repetitive Surge Current IFSM - Peak Forward Surve Current (A) 120 Pulse Width 8.3ms Single Half-Sine Sine-Wave (JEDEC METHOD) 100 80 60 40 20 0 1 10 100 Number of Cycles at 60 Hz Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2019-11-26 Page:5 Transient Voltage Suppressors (TVS) SMBJ Series Soldering Parameters - Reflow Soldering (Surface Mount Devices) Reflow Condition TP Critical Zone TL to TP Ramp-up TL Pre Heat Temperature TS(max) Ramp-down TS(min) Preheat Time to peak temperature (t 25℃ to peak) -Temperature Temperature Min (Ts(min)) 150°C -Temperature Max (Ts(max)) 200°C - Time (min to max) (ts) 60 -180 Seconds Average ramp up rate ( Liquids Liquid Temp TL) to peak 3°C/second max TS(max) to TL - Ramp-up Rate 3°C/second max Reflo w 25 Pb - Free assembly Time - Temperature (TL) (Liquids) 217°C - Time (min to max) (ts) 60 -150 Seconds Peak Temperature (TP) 260 +0/-5°C Time within 5°C of actual peak Temperature (tp) 20 - 40 Seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max Do not exceed 260°C Part Marking System Cathode band(for Uni-directional products only) RUILON XX XXX Date Code Product Code Marking code Dimensions Millimeters Cathode Band Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Inches DIM Revised: 2019-11-26 Min Max Min Max A 1.80 2.20 0.071 0.086 B 4.05 4.65 0.160 0.183 C 3.30 3.94 0.130 0.155 D 2.05 2.45 0.081 0.096 E 0.76 1.52 0.030 0.060 G 5.11 5.59 0.201 0.220 I 2.26 - 0.089 - J 2.16 - 0.085 - K - 2.74 - 0.107 L 2.16 - 0.085 - Page:6 Transient Voltage Suppressors (TVS) SMBJ Series Taping and Reel Specifications Symbol Millimeters Inches W 1 12±0.3 0.472±0.012 P 8±0.1 0.315±0.004 F 5 5.5±0.1 0.217±0.004 E 1.75±0.1 0.069±0.004 D 1.5+0.1/ 1.5+0.1/-0.0 0.059+0.004/-0.0 P0 4±0.1 0.157±0.004 P2 2±0.1 0.079±0.004 D0 16.7 16.7±0.15 0.657±0.006 D1 17 178±2 7.007±0.079 D2 59.6 59.6+1/-2 2.346+0.039/-0.079 W1 12.64 12.64±0.4 0.498±0.016 Direction of Unreeling Part Number Component package Quantity Packaging option Packaging specification SMBJXXXA/CA DO-214AA(SMB) 214AA(SMB) 500 Tape&Reel-12mm/7”tape EIA STD RS-481 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2019-11-26 Page:7
