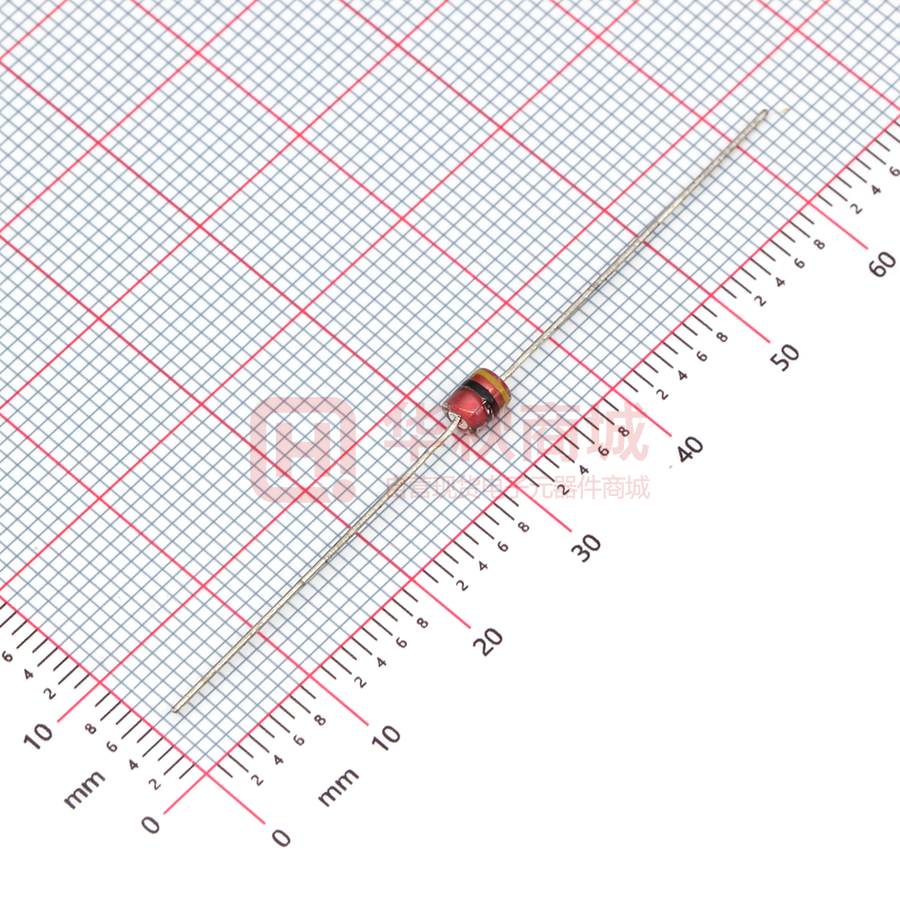

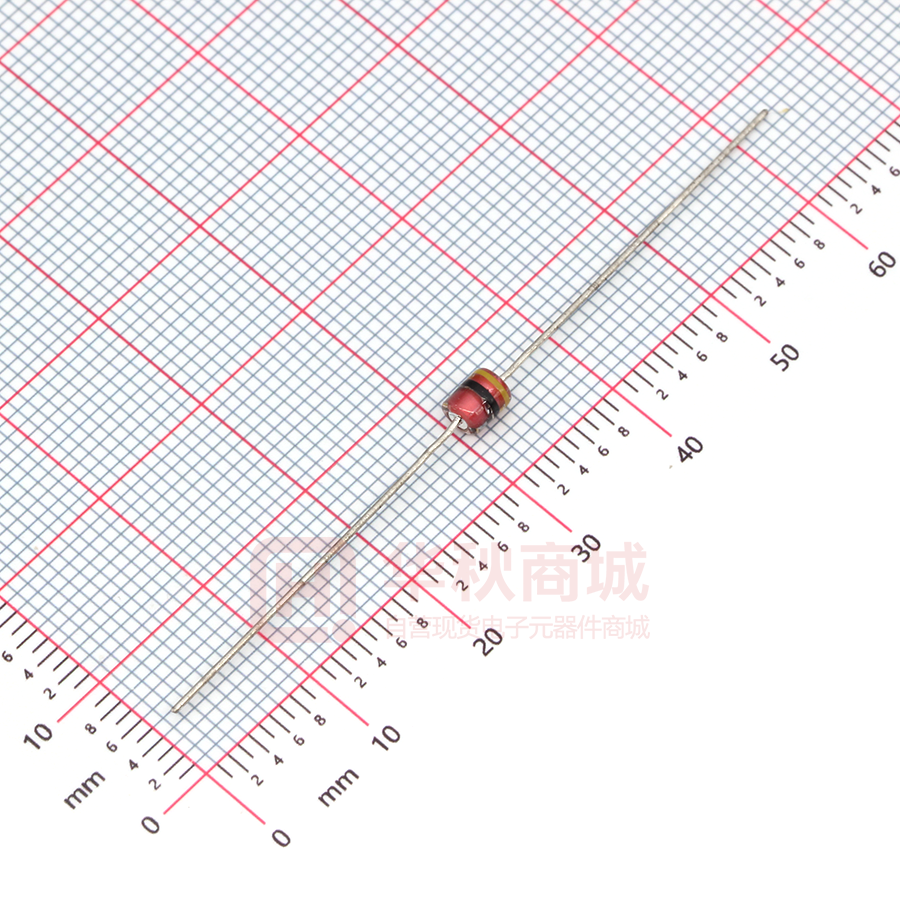

RL302-141N

ELECTRONICS Glass Gas Discharge RL302 Series Circuit Protection System Specifications are subject to change without notice. Glass Gas Discharge - RL302 Series Features • Compared with other surge absorbers having similar functions has the fast response speed ,largest withstand current and voltage but smallest size. • All electrical characteristics are very stable even after long period of charge and discharge. There is no need for inspection and exchange periodically. • Super capability to withstand repeated lightning strikes. • Stable and very Small electrostatic capacitance (100MΩ). • No pollution material. • Bilateral and symmetrical. • Completely insensitive to weather, temperature, humidity and lightness. Applications Dimensions • Power Supplies • Motor sparks eliminating • Relay switching spark absorbing • Data line pulse guarding • Electronic devices requiring UL497A and UL497B compliant • Telephone/Fax/Modem • High frequency signal transmitters/receivers • Satellite antenna • Radio amplifiers • Alarm systems • Cathode ray tubes in Monitors/TVs 4.0±0.3 28±3.0 0.5±0.05 28±3.0 3.1±0.3 Part Number Code R L M LOGO Taping form 3 0 2 - 1 4 Surge Current Capacity DC Spark-over voltage(Vs) 501:0.5KA 14*10 =140V Blank:Line 102:1KA S:Magnet-type 302:3KA 1 1 N DC Sparkover voltage tolerance N:30% M:20% M:SMD Circuit Protection System Specifications are subject to change without notice. Page:1 Glass Gas Discharge - RL302 Series ElectrIcal CharacterlstIcs Type Number DC Spark-Over Voltage Insulation Resistance IR AC Electrostatic Surge current withstanding capacity Capacitance voltage test 8/20us 1KHz-6Vmax condition UL Surge Life Test V MΩ DC V pF A A RL302-141N 140±30% >100MΩmin 50 100MΩmin 100 100MΩmin 100 100MΩmin 250 100MΩmin 250 100MΩmin 250 100MΩmin 500 100MΩmin 500 100MΩmin 500 100MΩmin 500 100MΩmin 250 100MΩmin 250 100MΩmin 500 100MΩmin 500 100MΩmin 500 100MΩmin 500
