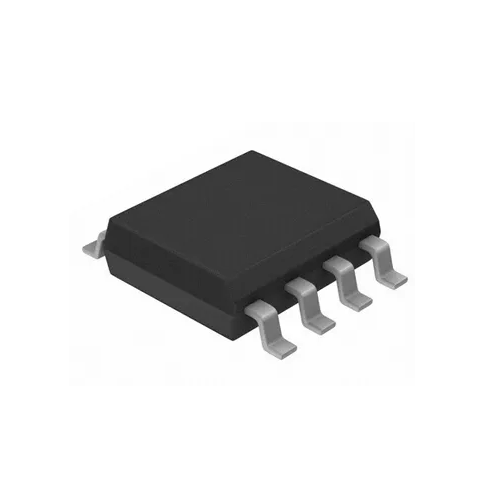

TF0227-TAH

Advance Info TF0227(1/2/3/5) Dual High Speed Low-Side Gate Driver Description Features  E  fficient, low-cost solution for driving MOSFETs and IGBTs  Wide supply voltage operating range: 4.5V to 18V  A wide range (1.5A-4A) of source/sink output current capability offerings  Fast propagation delays (35ns typical)  Fast rise and fall times  Logic input (IN) 3.3V capability  Extended temperature range: -40°C to +125°C The TF0227(x), dual, high speed, low side MOSFET and IGBT drivers are capable of driving a range of source/ sink peak capabilities. The TF0227(x) logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with MCUs. Fast and well matched propagation delays allow high speed operation, enabling a smaller, more compact power switching design using smaller associated components. The TF0227(x) is offered in an SOIC-8(N) package and it operates over an extended -40 °C to +125 °C temperature range. Applications SOIC-8(N)  Switch mode power supplies  Motor Drive  Line Drivers  DC-DC Converters Ordering Information Typical Application NC INA INB www.tfsemi.com Apr. 2018 R4 R4 PART NUMBER PACKAGE TF0227-TAU SOIC-8(N) PACK / Qty Tube / 100 TF0227-TAH T&R / 2500 SOIC-8(N) TO LOAD NC INA TF0227 MARK YYWW TF0227 Lot ID OUTA GND VCC INB OUTB VCC Rev. 1.2 1 Advance Info TF0227(1/2/3/5) Dual High Speed Low-Side Gate Driver Pin Diagrams NC 1 8 NC INA 2 7 OUTA COM 3 6 VCC INB 4 5 OUTB Top View: SOIC8 Pin Descriptions PIN NAME PIN NUMBER PIN DESCRIPTION NC 1, 8 No Connect INA 2 Logic input for A phase, in phase with OUTA. COM 3 Supply return INB 4 Logic input for B phase, in phase with OUTB. OUTB 5 Gate driver output B phase VCC 6 Supply input OUTA 7 Gate driver output A phase Functional Block Diagram TF0227 OUTA INA Vcc INB OUTB COM Apr. 2018 2 Advance Info TF0227(1/2/3/5) Dual High Speed Low-Side Gate Driver Absolute Maximum Ratings (NOTE1) VCC - Low-side fixed supply voltage...............................-0.3V to +22V VOUT - Output voltage (OUTA/OUTB)....................-0.3V to VCC +0.3V VIN - Logic input voltage (INA, INB).......................-0.3V to VCC +0.3V ESD Protection on all pins....................................................2kV (HBM) A PD - Package power dissipation at TA ≤ 25 °C SOIC8 .....................................................................................0.625W SOIC8 Thermal Resistance (NOTE2) qJA ................................................................................................200 °C/W TJ - Junction operating temperature........................................+150 °C TL - Lead Temperature (soldering, 10 seconds).......................+300 °C Tstg - Storage temerature ......................................................-55 to 150 °C NOTE1 Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. NOTE2 When mounted on a standard JEDEC 2-layer FR-4 board. Recommended Operating Conditions Symbol Parameter MIN MAX Unit VCC Supply voltage 4.5 18 V VOUT Output voltage (OUTA/OUTB) 0 VCC V VIN Logic input voltage (INA, INB) 0 5 V TA Ambient temperature -40 125 °C Apr. 2018 3 Advance Info TF0227(1/2/3/5) Dual High Speed Low-Side Gate Driver Electrical Characteristics (NOTE3) VBIAS (4.5V
