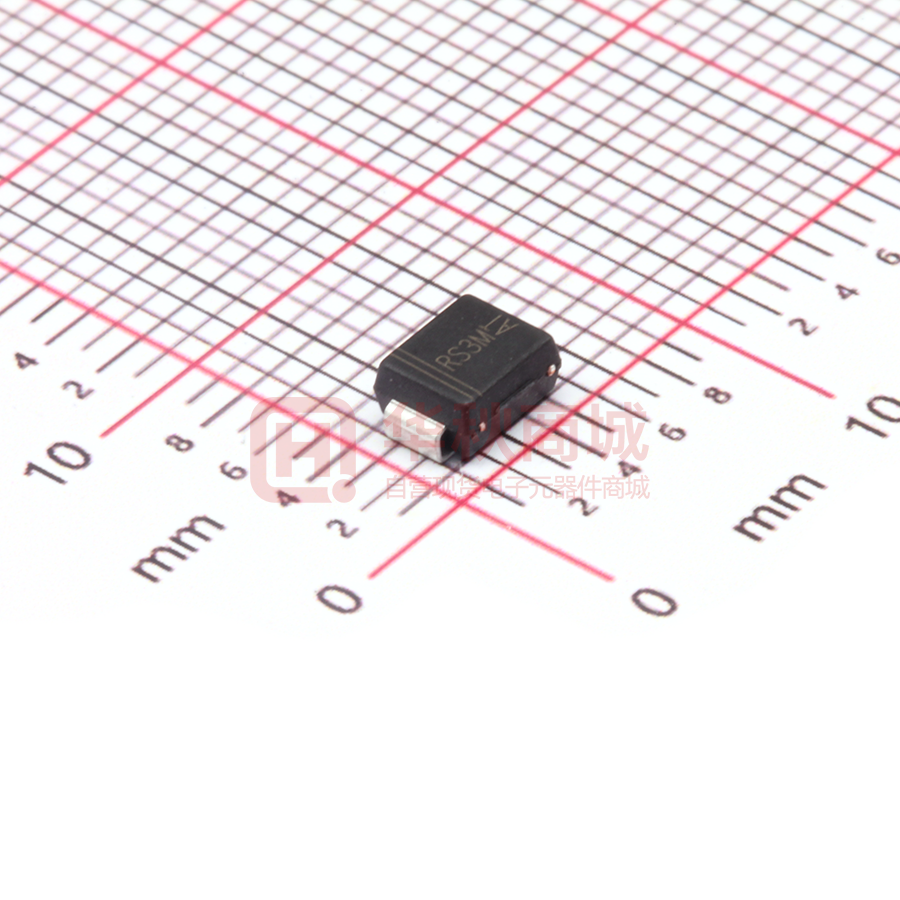

RS3MBG

RS3ABG THRU RS3MBG Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 3 A PINNING PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Fast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 2 1 MECHANICAL DATA • Case: SMB • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.055g / 0.002oz Top View Marking Code: R3A~R3M Simplified outline SMB symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols RS3AB G RS3BB G RS3DB G RS3GB G RS3JB G RS3KB G RS3MB G Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current I F(AV) 3 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 90 A Maximum Forward Voltage at 3 A VF 1.3 V IR 5 100 μA Cj 40 pF Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range t rr 500 ns RθJA RθJC 48 16 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. REV.08 250 150 1 of 3 RS3ABG THRU RS3MBG Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Maximum Average Forward Current Rating 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 1.0 1.5 2.0 2.5 Peak Forward Surage Current (A) 100 120 140 T J =25°C 10 T J=25°C f = 1.0MHz V sig = 50mV p-p 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 10 1.0 10 Reverse Voltage (V) 100 Number of Cycles REV.08 80 100 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 1 60 1 0.5 Instaneous Forward Voltage (V) 00 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) 2 of 3 100 RS3ABG THRU RS3MBG PACKAGE OUTLINE SMB Plastic surface mounted package; 2 leads L A A1 C A b D E E1 VM A SMB mechanical data UNIT mm mil A1 L C b 5.59 0.20 1.5 0.305 2.2 3.3 5.08 0.05 0.8 0.152 1.9 155 220 7.9 59 12 87 200 2.0 32 6 75 A E D max 2.44 4.70 3.94 min 2.13 4.06 max 96 185 min 84 130 160 Marking The recommended mounting pad size 2.2 (86) 2.4 (94) 2.8 (110) 2.4 (94) mm Unit ： (mil) REV.08 E1 3 of 3 Type number Marking code RS3ABG RS3A RS3BBG RS3B RS3DBG RS3D RS3GBG RS3G RS3JBG RS3J RS3KBG RS3K RS3MBG RS3M
