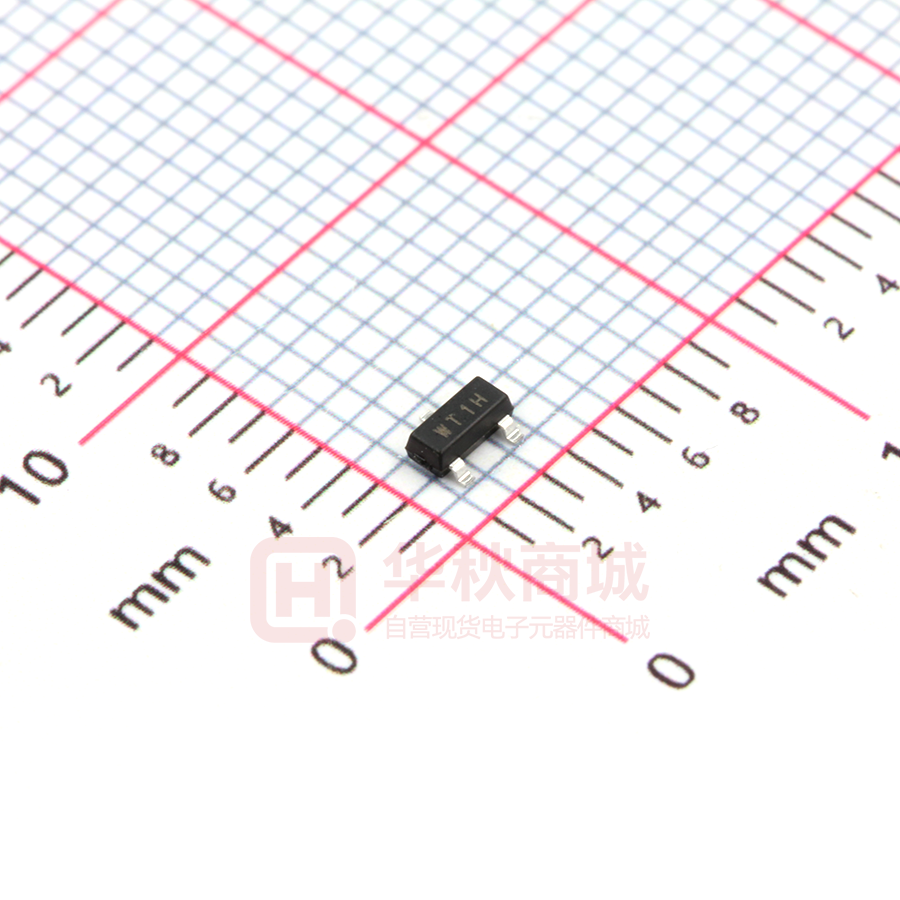

WPM2015-3/TR

WPM2015 WPM2015 Http://www.sh-willsemi.com Single P-Channel, -20V, -2.4A, Power MOSFET VDS (V) -20 Rds(on) (ȍ) 0.081@ VGS=4.5V 0.103@ VGS=2.5V Descriptions SOT-23 D 3 The WPM2015 is P-Channel enhancement MOS Field Effect Transistor. Uses advanced trench technology and design to provide excellent RDS (ON) with low gate charge. This device is suitable for use in DC-DC conversion, power switch and charging 1 2 circuit. Standard Product WPM2015 is Pb-free and G S Halogen-free. Pin configuration (Top view) Features z Trench Technology z Supper high density cell design z Excellent ON resistance for higher DC current z Extremely Low Threshold Voltage z Small package SOT-23 3 WT1* 2 1 WT1= Device Code * = Month (A~Z) Marking Applications z Driver for Relay, Solenoid, Motor, LED etc. z DC-DC converter circuit z Power Switch z Load Switch z Charging Will Semiconductor Ltd. Order information 1 Device Package Shipping WPM2015-3/TR SOT-23 3000/Reel&Tape Mar,2018 – Rev.1.2 WPM2015 Absolute Maximum ratings Parameter Symbol 10 S Steady State Drain-Source Voltage VDS -20 Gate-Source Voltage VGS f8 Continuous Drain Current a Maximum Power Dissipation a Continuous Drain Current b Maximum Power Dissipation b TA=25°C ID TA=70°C TA=25°C PD TA=70°C TA=25°C ID TA=70°C TA=25°C PD TA=70°C Unit V -2.4 -2.2 -1.9 -1.7 0.9 0.8 0.5 0.5 -2.2 -2.0 -1.7 -1.6 0.7 0.6 0.5 0.4 A W A W Pulsed Drain Current c IDM -10 A Operating Junction Temperature TJ 150 °C Lead Temperature TL 260 °C Storage Temperature Range Tstg -55 to 150 °C Thermal resistance ratings Parameter Junction-to-Ambient Thermal Resistance a Junction-to-Ambient Thermal Resistance b Junction-to-Case Thermal Resistance Symbol t ” 10 s Steady State t ” 10 s Steady State Steady State RșJA RșJA RșJC Typical Maximum 105 135 120 155 130 160 145 190 60 75 a Surface mounted on FR-4 Board using 1 square inch pad size, 1oz copper b Surface mounted on FR-4 board using minimum pad size, 1oz copper c Pulse width
