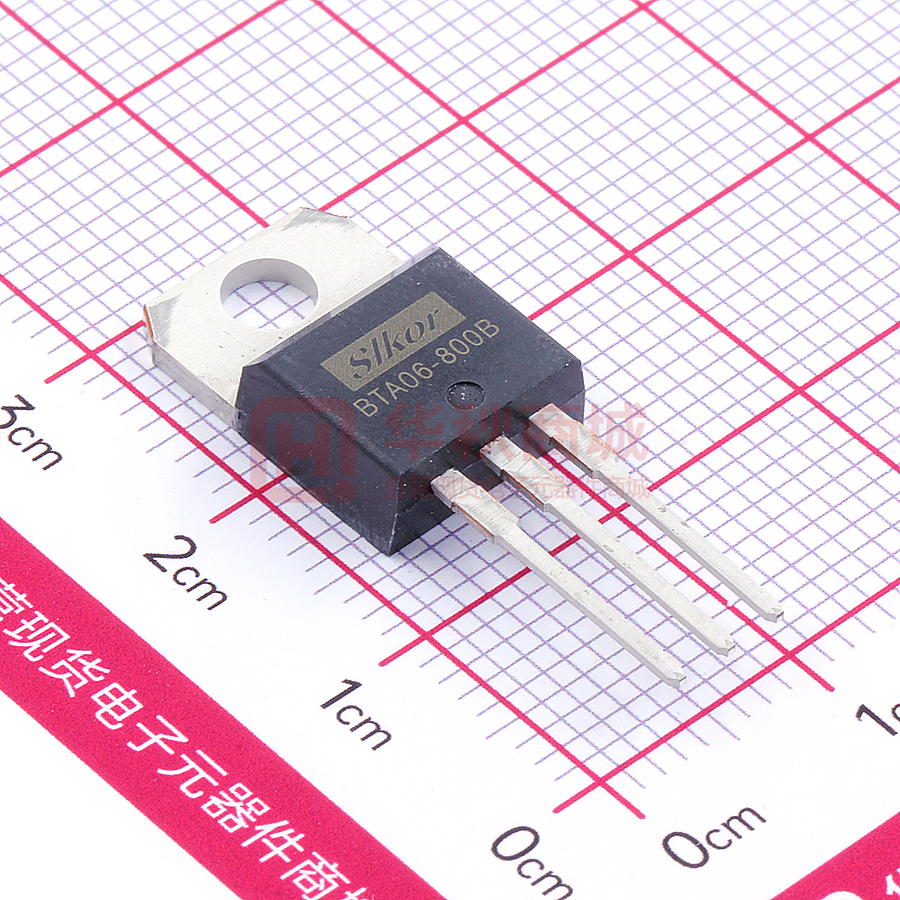

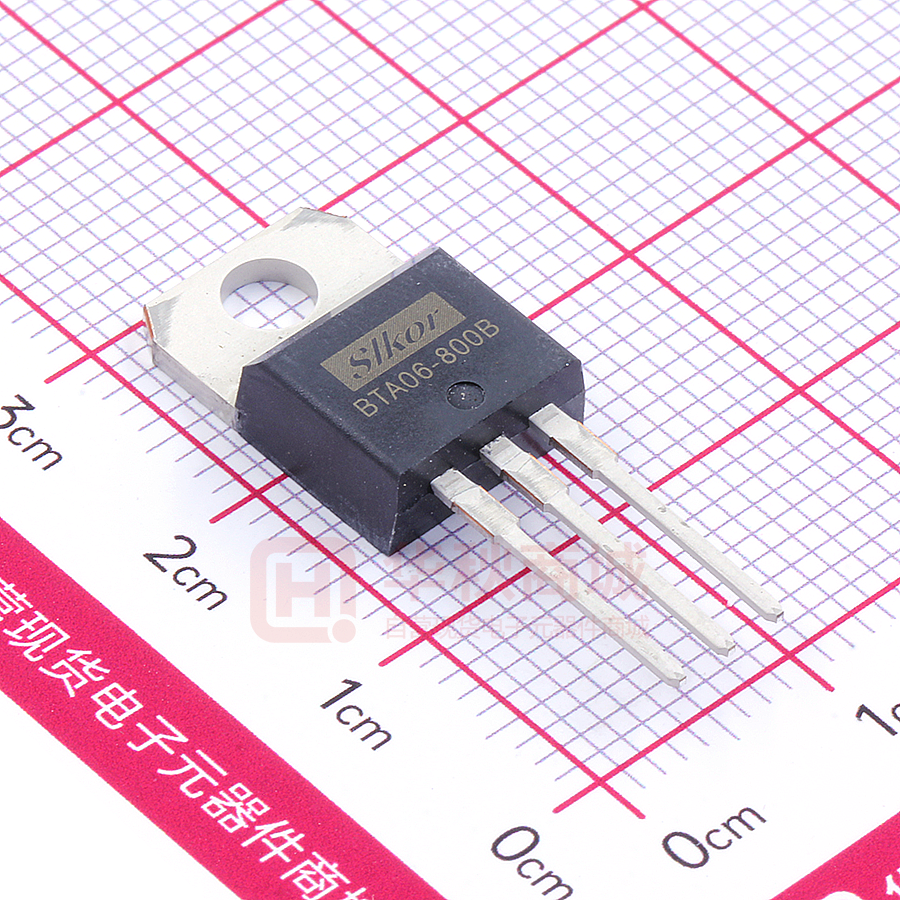

BTA06-800B

BTA06 3 Quadrants TRIAC Features ■IT(RMS): 6A ■VGT:1.3V ■VDRM VRRM: 600V and 800V Applications Washing machine,vacuums, massager,solid state relay，AC Motor speed regulation ,lighting control ,temperatureand so on. Absolute Maximum Ratings(Tc=25°C unless otherwise specifed) Symbol VDRM VRRM parameter Repetitive Peak OffState Voltage Conditions Ratings Unit BTA06 -600 600 V BTA06 -800 800 V 6 A 65/67 A IT(RMS) R.M.S On-State Current Tc=110°C ITSM Surge On-State Current f=50/60Hz I²t I²t for fusing Tp=10ms 23 A²s PG(AV) Average Gate Power Dissipation Tj=125°C 1 W IGM Peak Gate Current Tj=125°C 4 A Tj Operating Junction Temperature 一 40~125 °C TSTG Storage Temperature 一 40~150 °C www.slkormicro.com 1 tp=16.7ms/20ms BTA06 Electrical Characteristics(Tc=25°C unless otherwise specifed) Value symbol parameter Test Conditions Unit TW SW CW BW IDRM IRRM Tc=25°C ≤5 uA Tc=125°C ≤1 mA Repetitive Peak Reverse Current Tc=25°C ≤5 uA Tc=125°C ≤1 mA 1.55 V ≤1.3 V ≥50 A²/us ≥10 A²/us IT=10A tp=380us VD=12V ,RL=30Ω Forward "on" voltage VGT Gate trigger voltage di/dt Critical-rate of rise of commutation current. I,II,III IG=2XIGT,tr≤ 100ns,F=100H IV z Gate trigger current I,II,III VD=12V RL=30Ω IV IH VGD dv/dt B Repetitive Peak OffState Current VTM IGT C Holding current ≤5 / IT=0.2A ≤10 ≤25 ≤50 ≤25 ≤50 ≤50 ≤100 mA ≤10 ≤15 ≤35 ≤60 ≤25 ≤50 mA VD=VDRM Gate non-trigger ALL TJ=125°C,RL voltage =3.3KΩ TJ=125°C Critical-rate of rise of VD=2/3VDRM ≥ commutation voltage Gate open 20 circuit / / / mA ≥0.2 ≥ 50 ≥ ≥ ≥ ≥ 1000 400 200 400 V V/us Rth(j-c) Thermal resistance Junction to case 2.7 °C/W Rth(j-a) Thermal resistance Junction to ambient 60 °C/W www.slkormicro.com 2 BTA06 █characteristic curve FIG.1:Gate characteristics FIG.2: On-state characteristics(max) Gate Current(mA) On-State Voltage(V) FIG.3:Gate trigger voltage vs junction temperature FIG.4:on-state current vs max power Dissipation RMS On-State Current(A) Juntion Temperature(ºC) FIG.5:RMS On-state vs Allowable Case Temperature FIG.6:Gate trigger current vs junction temperature Juntion Temperature(ºC) RMS On-State Current(A) www.slkormicro.com 3 BTA06 PACKAGE MECHANICAL DATA TO-220 Package Dimension www.slkormicro.com 4
