ESD5451L
Transient Voltage Suppressors
ESD Protection Diode
Absolute Maximum Ratings
Symbol
PD
TL
TA = 25°C unless otherwise noted
Parameter
Total Power Dissipation on FR-5 Broad
Max Lead Solder Temperature range
(10 Second Duration)
Value
Units
150
mW
260
°C
Tstg
Storage Temperature Range
-55 to +150
°C
TOPR
Max operation Temperature Range
+125
°C
IEC61000-4-2
±20
±25
KV
ESD
Air Discharge
Contact Discharge
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
§
§
§
§
§
§
§
Capacitance Typ. 15pF
Small Body Outline Dimensions
Low Leakage Current
ESD Rating of Class 3 (>16kV) per Human Body Model
RoHS Compliant
Green EMC
Matte Tin(Sn) Lead Finish
www.slkormicro.com
1

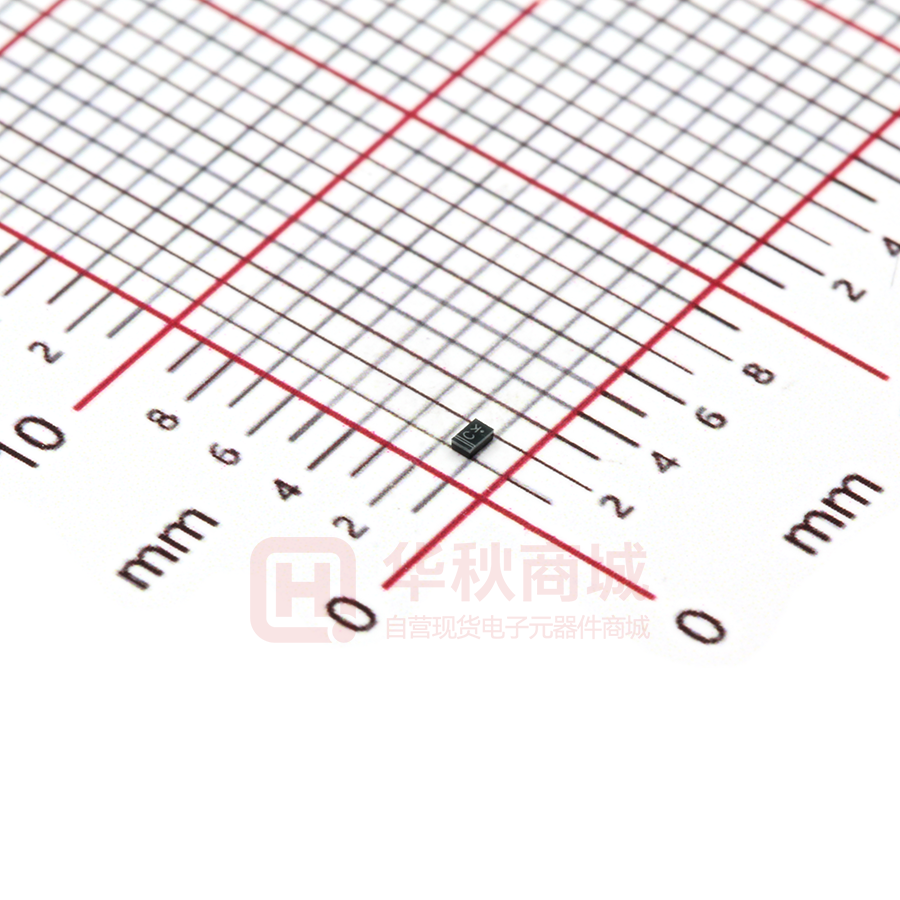

DFN1006-2L Package
ESD5451L
Electrical Characteristics (TA = 25°C unless otherwise noted)
Device
Type
ESD5451L
VBR @ IT
VRWM
IR @ VRWM
(Volts)
(µA)
Max
Max
Min
Max
5.0
0.5
5.6
---
(Note 1)
IT
(mA)
(Volts)
IPP+
VC @ Max IPP+
(A)
(Volts)
VR = 0V, f = 1MHz
Max
Max
Max
Typ.
5
12
60
15
1.0
+ Surge current waveform per Figure 1.
Note 1: VBR is measured with a pulse test current IT at an ambient temperature of 25°C.
SURGE CURRENT WAVEFORM:
CAPACITANCE CURVE:
www.slkormicro.com
2
C@
PPK+
(W)
(pF)
ESD5451L
Package Outline
MILLIMETERS
INCHES
DIM
Typical Soldering Pattern(mm):
MIN
MAX
MIN
MAX
A
0.46
0.50
0.018
0.020
A1
---
0.03
---
0.001
b
0.45
0.55
0.018
0.022
D
0.55
0.65
0.022
0.026
E
0.95
1.05
0.037
0.041
e1
L
www.slkormicro.com
3
Typ. 0.65
0.20
0.30
Typ. 0.026
0.008
0.012
