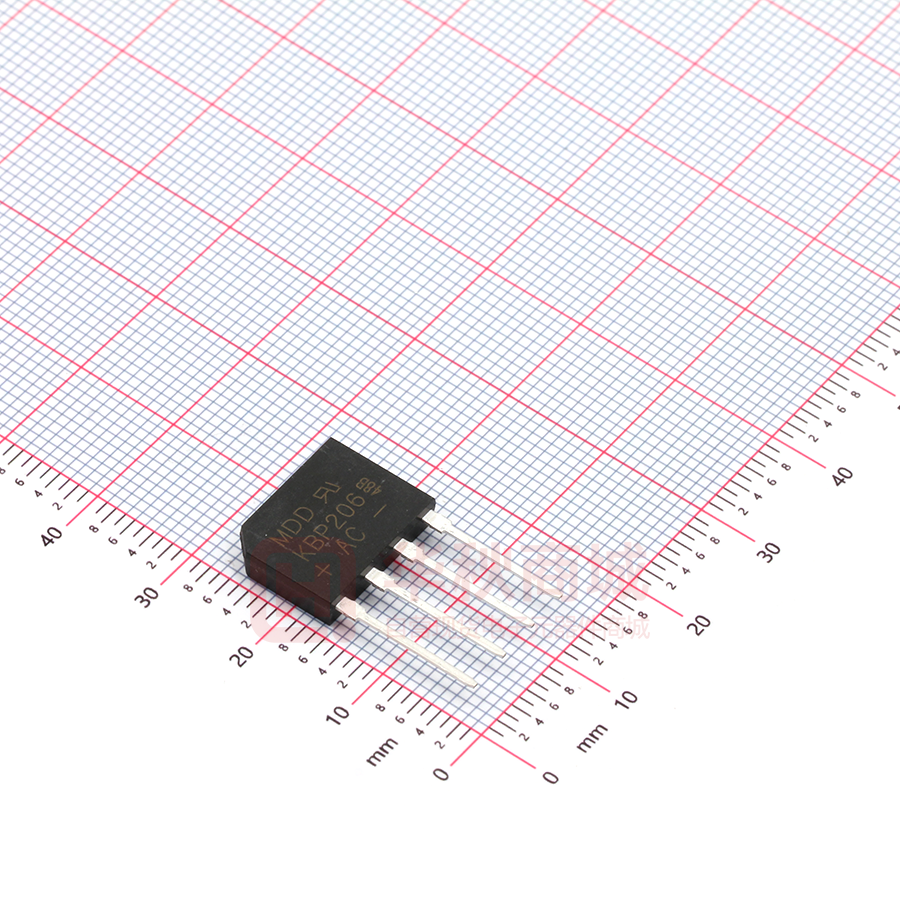

KBP206

KBP2005 THRU KBP210 Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes SINGLE BRIDGE RECTIFIERS Features KBP  Glass passivated die construction  Low forward voltage drop 0.559(14.20) 0.543(13.80)  High current capability 0.043(1.1) 0.031(0.8)  High surge current capability  Plastic material-UL flammability 94V-0 0.126(3.20) 0.118(3.00) 0.417(10.6) 0.402(10.2) ~ - +~ 0.087(2.2) 0.071(1.8) 0.056(1.42) 0.048(1.22) 0.539(13.7) 0.500(12.7) 0.022(0.55) 0.012(0.3) Mechanical Data Case : JEDEC KBP Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.0693 ounce,1.35 grams 0.16(4.06) 0.14(3.56) 0.034(0.86) 0.030(0.76) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward output rectified current at TC=50 °C(Note 1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) SYMBOLS VRRM VRMS VDC MDD MDD MDD MDD MDD MDD MDD KBP2005 KBP201 KBP202 KBP204 KBP206 KBP208 KBP210 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V I(AV) 2.0 A IFSM 35 A VF 1.1 V IR 10 1 μA mA Typical Thermal Resistance (Note 2) RθJA 25 °C/W Operating junction temperature range storage temperature range TJ TSTG -55 to +150 -55 to +150 °C °C Maximum instantaneous forward voltage drop per birdge element at 2.0A Maximum DC reverse current TA=25°C at rated DC blocking voltage TA=125°C Note:1. Mounted on glass epoxy PC board with 1.3mm 2 solder pad. 2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.. http://www.microdiode.com Rev:2024A3 Page :1 KBP2005 THRU KBP210 Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes Ratings And Characteristic Curves Fig. 2 Maximum Non-repetitive Peak Forward Surge Current Fig. 1 Derating Curve for Output Rectified Current 40 Peak Forward Surge Current, Amperes Average Forward Outp ut Current, Amperes 3.0 2.0 60Hz Resistive of Inductive Load 1.0 0 0 50 100 8.3ms Single half-sine-Wave [JEDEC Method] 30 20 10 0 10 1 100 Number of Cycles at 60HZ 150 o Fig. 4 Typical Reverse Characteristics Case Temperature, C 10 Instantaneous Reverse Current ,Amperes Fig. 3 Typical Instantaneous Forward Characteristics 100 40 10 4.0 1.0 0.1 TA=25 C .01 0 20 0.1 Tj=25 C Pulse Width=300us 2% duty cycle .01 0.6 40 60 80 100 120 140 Percent of Rated Peak Reverse Voltage, % 0.7 0.8 0.9 1.0 1.1 Fig. 5 Typical Junction Capacitance 1.2 Instantaneous Forward Voltage, Volts 400 1.3 Capacitance, pF Instantaneous Forward Current, Amperes 20 Tc=100 C 1.0 100 10 Tj=25 C f=1.0MHz Ving =50mV p.p. 1 1.5 10 2 100 Reverse Voltage, Volts http://www.microdiode.com Rev:2024A3 Page :2
