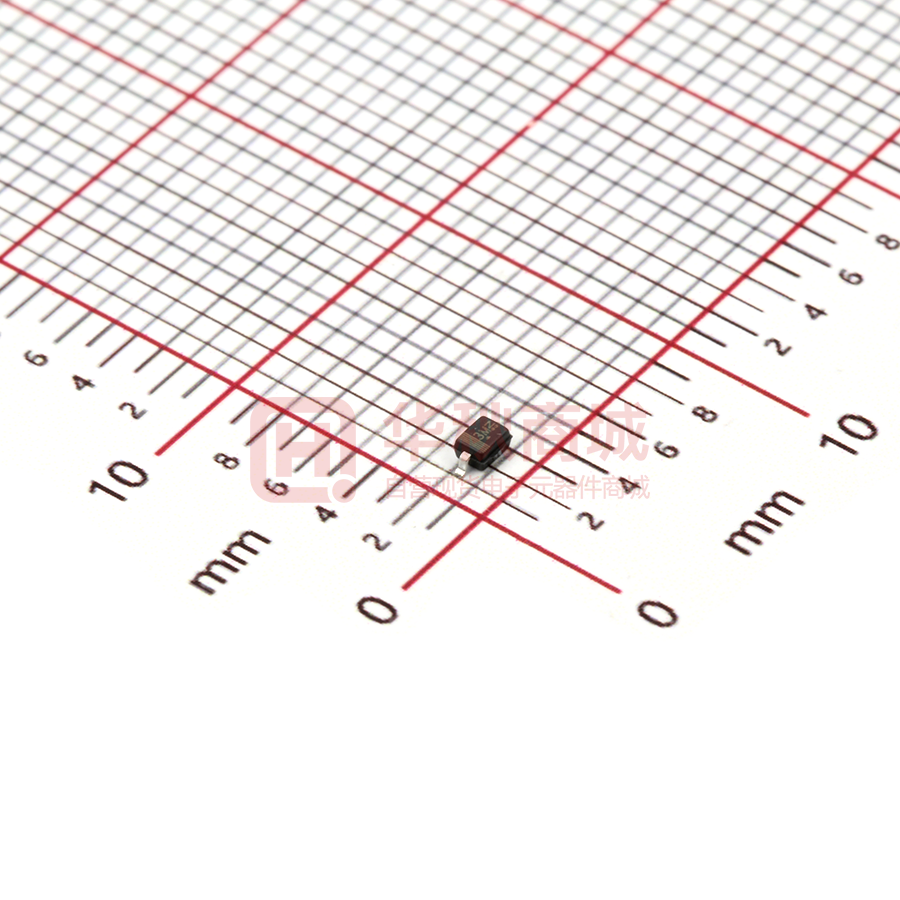

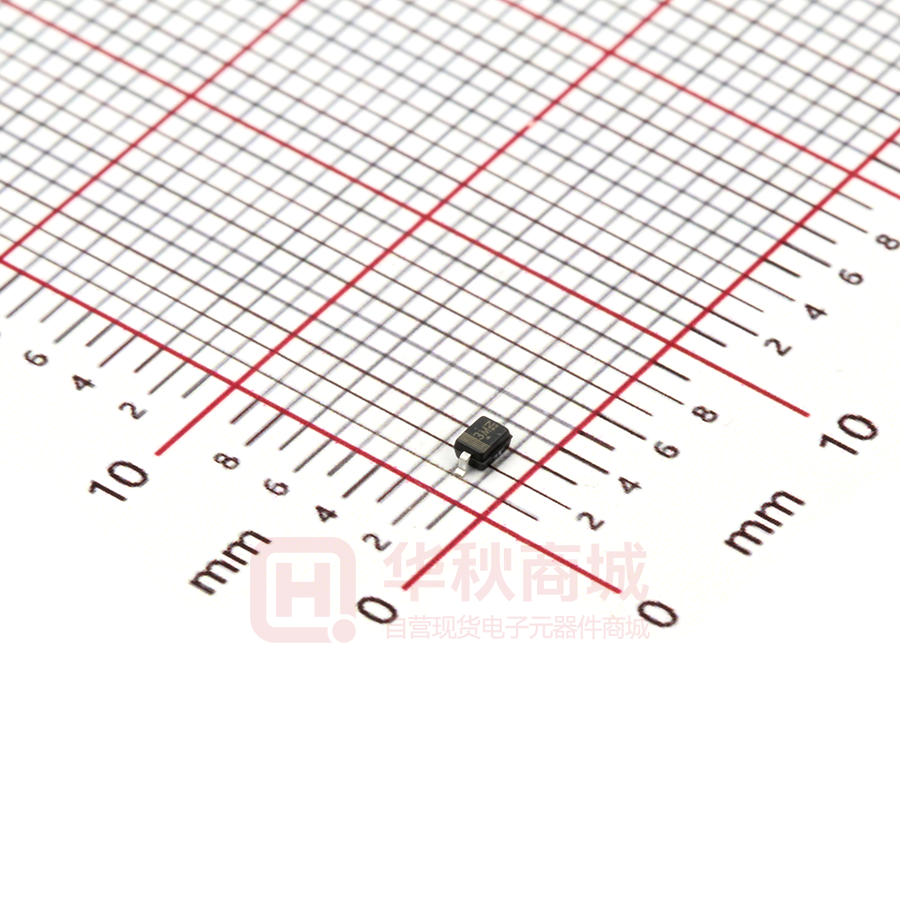

LESD3Z5.0C

LESD3Z5.0C Transient Voltage Suppressors for ESD protection DESCRIPTION SOD-323 Plastic-Encapsulate ESD Protection Diodes The LESD3Z5.0C is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients). Features         Peak power dissipation: 128W (8/20μs) IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) Protects one I/O line) Low clamping voltage Working voltages : 5V Low leakage current Meets MSL 1 Requirements Pin Configuration Circuit Diagram   Applications        High Speed Line :USB1.0/2.0, VGA, DVI, SDI, Serial and Parallel Ports Notebooks, Desktops, Servers Projection TV Cellular handsets and accessories Portable instrumentation Peripherals Mechanical Characteristics  Package: SOD-323  Flammability Rating: UL 94V-0  Terminal: Tin plated, solderable per MIL-STD-750, method 2026  High temperature soldering guaranteed: 260℃/ 10s  Packaging: Tape and Reel  Marking: 3M or AC Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Symbol VESD Value ± 30 ± 30 Unit KV Peak Pulse Power(8/20us ) PPP 128 W Operating Temperature TOPT −40 to +150 °C Storage Temperature TSTG −40 to +150 °C TL 260(10 sec.) °C Lead Solder Temperature – Maximum (10 Second Duration) The above data are for reference only. DN:T20513A0 http://www.microdiode.com Rev:2020A0 Page :1 LESD3Z5.0C Transient Voltage Suppressors for ESD protection Electrical Characteristics (TA=25°C unless otherwise specified) Max Units 5.0 V 7.8 V 1.0 uA IPP = 5A, tp = 8/20μs 11.6 V Clamping Voltage IPP = 8A, tp = 8/20μs 16 V Junction Capacitance VR = 0V, f = 1MHz 15 pF Symbol Parameter VRWM Reverse Working Voltage VBR Reverse Breakdown Voltage IR Reverse Leakage Current VC Clamping Voltage VC CJ Test Condition IT = 1mA Min Typ 5.6 VRWM = 5.0V The above data are for reference only. http://www.microdiode.com Rev:2020A0 Page :2 LESD3Z5.0C Transient Voltage Suppressors for ESD protection ELECTRICAL CHARACTERISTICS CURVE The curve above is for reference only. http://www.microdiode.com Rev:2020A0 Page :3 LESD3Z5.0C Transient Voltage Suppressors for ESD protection Outlitne Drawing SOD-323 Package Outline Dimensions Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. PACKAGE SPECIFICATIONS Package Reel Size SOD-323 Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) 178 3000 183×188×80 45,000 386×265×215 180,000 7' Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev:2020A0 Page :4
