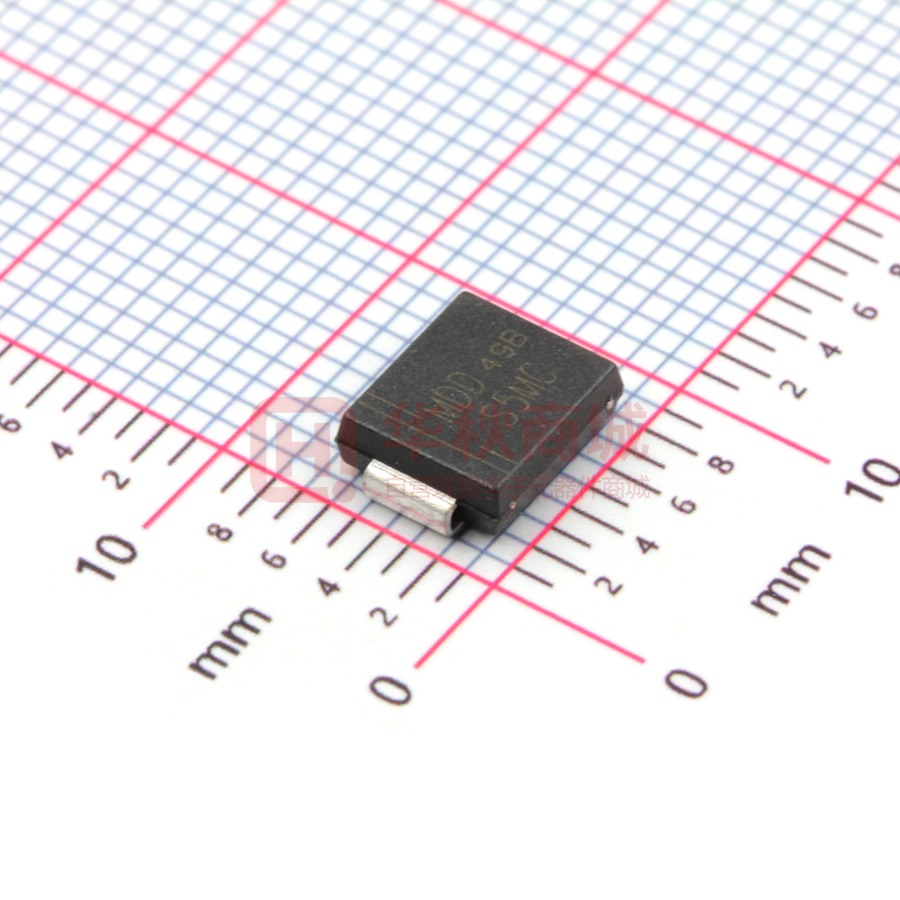

S5MC

S5AC THRU S5MC Reverse Voltage - 50 to 1000 Volts Forward Current - 5.0 Ampere SURFACE MOUNT GENERAL RECTIFIER Features DO-214AB/SMC  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90)  Low reverse leakage  Built-in strain relief,ideal for automated placement  High forward surge current capability 0.280(7.11) 0.260(6.60)  High temperature soldering guaranteed: 250 °C/10 seconds at terminals 0.012(0.305) 0.006(0.152) 0.103(2.62) 0.079(2.06) Mechanical Data 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.320(8.13) 0.305(7.75) Case: JEDEC DO-214AB/SMC molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Polarity symbol marking on body Mounting Position: Any Weight : 0.0007 ounce, 0.25 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=75℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 5.0A Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) VRRM VRMS VDC S5AC S5BC S5DC S5GC S5JC S5KC S5MC MDD S5AC MDD S5BC MDD S5DC MDD S5GC MDD S5JC MDD S5KC MDD S5MC UNITS 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V I(AV) 5.0 A IFSM 150 A VF 1.2 10.0 100.0 V μA 60.0 pF 10.0 ℃/W -50 to +150 ℃ IR CJ RJA Operating junction and storage temperature range TJ,TSTG *Pulse test: Pulse width 200 sec, Duty cycle 2% Note: 1. High Temperature Solder Exemptions Applied, see EU Directive Annex 7. DN:T20825A0 http://www.microdiode.com Rev:2020A1 Page :1 S5AC THRU S5MC Reverse Voltage - 50 to 1000 Volts Forward Current - 5.0 Ampere Typical Characterisitics AVERAGE FORWARD RECTIFIED CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 PEAK FORWARD SURGE CURRENT, AMPERES 5.0 4.0 3.0 Single Phase Half Wave 60Hz Resistive or inductive Load 2.0 1.0 0 0 25 50 75 100 125 150 80 60 40 20 175 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 0 1 10 AMBIENT TEMPERATURE, C FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS FIG. 4-TYPICAL REVERSE CHARACTERISTICS 1,000 20 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.1 0.01 0.6 0.8 1.0 1.2 1.4 1.5 INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES 100 NUMBER OF CYCLES AT 60 Hz 100 TJ=150 C 10 TJ=100 C 1 0.1 TJ=25 C 0.01 0 20 40 60 80 100 INSTANTANEOUS FORWARD VOLTAGE, VOLTS PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 400 TRANSIENT THERMAL IMPEDANCE, C/W 100 JUNCTION CAPACITANCE, pF 200 20 TJ=25 C 10 1 0.1 0.01 0.1 1 10 100 2 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2020A1 Page :2 S5AC THRU S5MC Reverse Voltage - 50 to 1000 Volts Forward Current - 5.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 E F B A W P D2 D1 T C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 BOX (pcs) 6000 CARTON SIZE (mm) 365*365*340 CARTON (pcs) 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout Symbol Unit (mm) A 4.3 0.170 B 0.160 C 4.1 7.9 0.311 D 3.8 0.150 E 12 0.472 Unit (inch) Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev: Page :3
