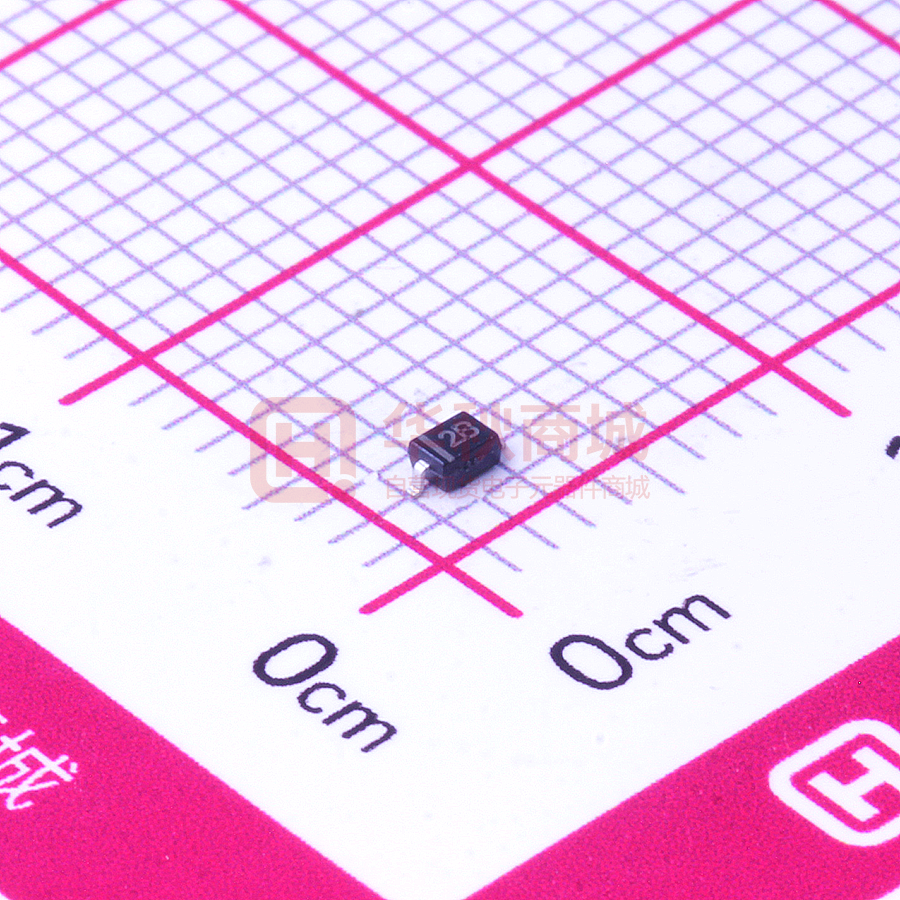

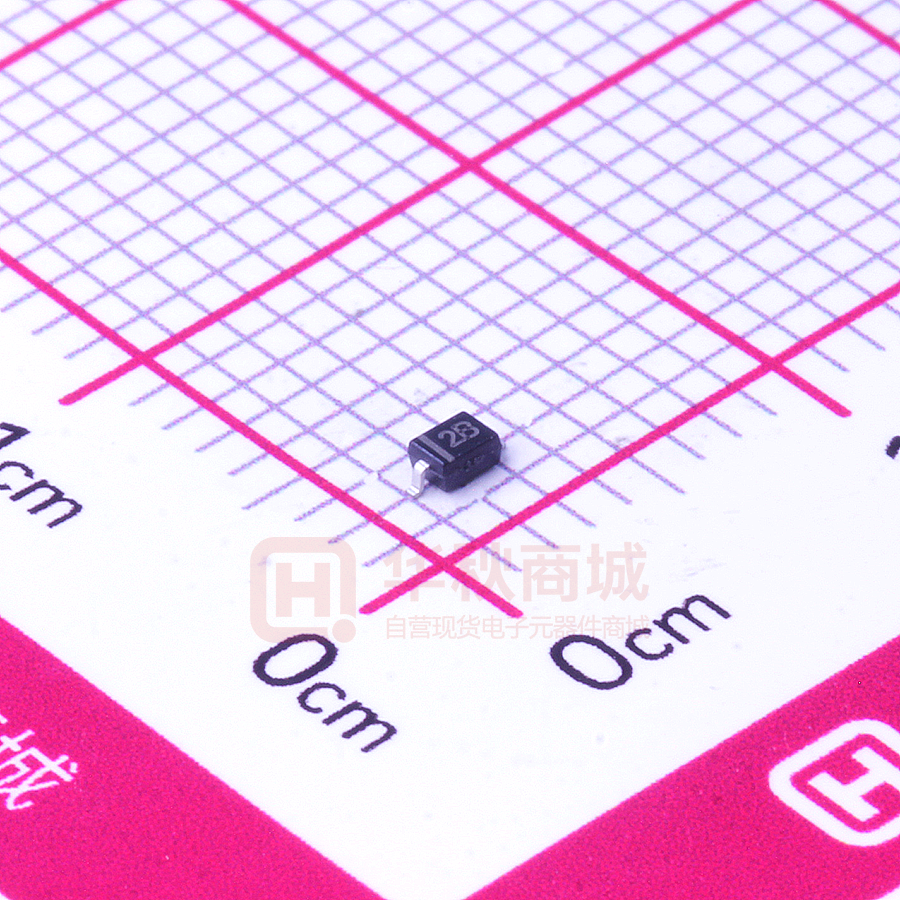

KMA729-7-F

KMA729-7-F FEATURES Pb z For super-high speed switching circuit. z For small current rectification. z Allowing to rectify under(IF(AV)=200mA) condition. z Allowing high-density mounting. Lead-free APPLICATIONS z Schottky epitaxial planar. SOD-323 ORDERING INFORMATION Type No. Marking Package Code KMA729-7-F 2B SOD-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Limits Unit DC reverse voltage VR 30 V Repetitive peak reverse voltage VRRM 30 V Peak forward Current IFM 300 mA Average forward Current IF(AV) 200 mA Non-repetitive peak forward Surge Current IFSM 1000 mA Power Dissipation Pd 200 mW Thermal resistance,junction to ambient air RθjA 635 ℃/W Junction temperature Tj 150 ℃ Storage temperature range Tstg -55-150 ℃ ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified 1/3 MA729 KMA729-7-F Parameter Symbol Conditions Min. Typ. Reverse Breakdown Voltage V(BR)R IR=10μA 30 Forward voltage VF IF=200mA 0.55 V Reverse leakage current IR VR=30V 50 μA Reverse recovery time trr IF= IR =100mA, Irr=10mA,RL=100Ω 3.0 ns Total capacitance CT VR=0V,f=1.0MHz 30 pF Unit V TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified 2/3 Max. MA729 KMA729-7-F Plastic surface mounted package SOD-323 SOD-323 K B C A D J Dim Min Max A 1.275 1.325 B 1.675 1.725 C E H 0.9 Typical D 0.25 0.35 E 0.27 0.37 H 0.02 0.1 J K 0.1 Typical 2.6 2.7 All Dimensions in mm SOLDERING FOOTPRINT Unit : mm 3/3
