MM1Z Series

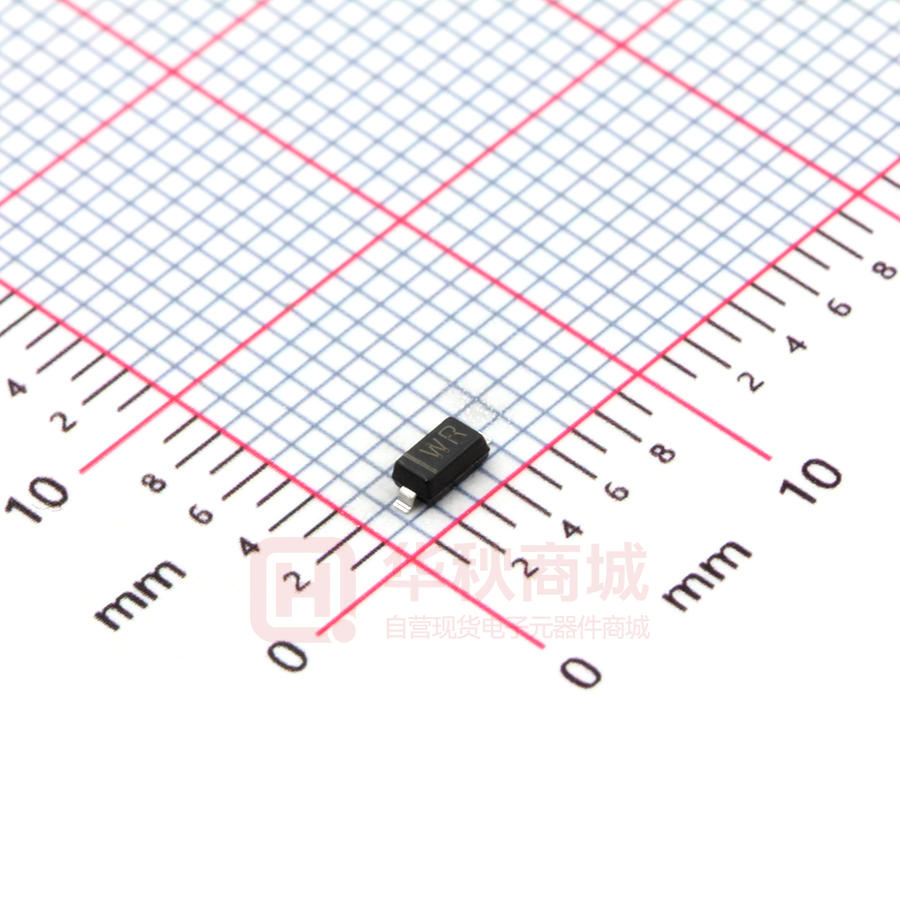

SOD-123 Plastic-Encapsulate Zener Diode
SOD-123
特征 Features
齐纳击穿阻抗低; Low Zener Impedance
最大功率耗散 500mW; Power Dissipation of 500mW
高稳定性和可靠性。High Stability and High Reliability
机械数据 Mechanical Data
封装: SOD-123 封装 SOD-123 Small Outline Plastic Package
极性: 色环端为负极 Polarity: Color band denotes cathode end
环氧树脂 UL 易燃等级 Epoxy UL: 94V-0
安装位置: 任意 Mounting Position: Any
极限值和温度特性(TA = 25℃ 除非另有规定)
Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.)
参数 Parameters
符号 Symbol
数值 Value
单位 Unit
功率消耗 Power Dissipation
Pd
500
1)
mW
正向压降 Forward Voltage @IF=10mA
Vf
0.9
2)
V
存储温度 Storage temperature range
Ts
-65-+150
℃
RthA
400
K/W
Thermal resistance junction to ambient air Warmewiderstand Sperrschicht
1)
–umgebende Luft
1)
2)
3)
Device mounted on ceramic PCB: 7.6mm x 9.4mm x 0.87mm with pad areas 25mm²
Short duration test pulse used to minimize self-heating effect
f=1KHz
电特性 (TA = 25℃ 除非另有规定)
Electrical Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified).
Zener Voltage Range
Device
Marking
Vz@Izt
Izt
Nom(V)
Min(V)
Max(V)
mA
Maximum Zener
3)
Impedance
Zzt
Zzk
Izk
@Izt
@Izk
mA
Ω
Maximum
Reverse Current
IR
VR
uA
V
Typical
Temperature
coefficent @
IZTC=mV/℃
Min
Max
Test
Current
IZTC
mA
MM1Z2V0
WY
2.0
1.80
2.15
5
150
600
1.0
100
1.0
-3.5
0
5
MM1Z2V4
WX
2.4
2.2
2.6
5
100
600
1.0
50
1.0
-3.5
0
5
MM1Z2V7
W1
2.7
2.5
2.9
5
100
600
1.0
20
1.0
-3.5
0
5
MM1Z3V0
W2
3.0
2.8
3.2
5
95
600
1.0
10
1.0
-3.5
0
5
MM1Z3V3
W3
3.3
3.1
3.5
5
95
600
1.0
5
1.0
-3.5
0
5
MM1Z3V6
W4
3.6
3.4
3.8
5
90
600
1.0
5
1.0
-3.5
0
5
MM1Z3V9
W5
3.9
3.7
4.1
5
90
600
1.0
3
1.0
-3.5
0
5
MM1Z4V3
W6
4.3
4.0
4.6
5
90
600
1.0
3
1.0
-3.5
0
5
MM1Z4V7
W7
4.7
4.4
5.0
5
80
500
1.0
3
2.0
-3.5
0.2
5
MM1Z5V1
W8
5.1
4.8
5.4
5
60
480
1.0
2
2.0
-2.7
1.2
5
MM1Z5V6
W9
5.6
5.2
6.0
5
40
400
1.0
1
2.0
-2.0
2.5
5
MM1Z6V2
WA
6.2
5.8
6.6
5
10
150
1.0
3
4.0
0.4
3.7
5
MM1Z6V8
WB
6.8
6.4
7.2
5
15
80
1.0
2
4.0
1.2
4.5
5
MM1Z7V5
WC
7.5
7.0
7.9
5
15
80
1.0
1
5.0
2.5
5.3
5
MM1Z8V2
WD
8.2
7.7
8.7
5
15
80
1.0
0.7
5.0
3.2
6.2
5
MM1Z9V1
WE
9.1
8.5
9.6
5
15
100
1.0
0.5
6.0
3.8
7.0
5
MM1Z10
WF
10
9.4
10.6
5
20
150
1.0
0.2
7.0
4.5
8.0
5
www.yongyutai.com
PAGE 1
MM1Z Series
Zener Voltage Range
Device
Marking
Vz@Izt
Izt
Nom(V)
Min(V)
Max(V)
mA
Maximum Zener
Impedance
Zzt
Zzk
Izk
@Izt
@Izk
mA
Ω
Maximum
Reverse Current
IR
VR
uA
V
Typical
Temperature
coefficent @
IZTC=mV/℃
Min
Max
Test
Current
IZTC
mA
MM1Z11
WG
11
10.4
11.6
5
20
150
1.0
0.1
8.0
5.4
9.0
5
MM1Z12
WH
12
11.4
12.7
5
25
150
1.0
0.1
8.0
6.0
10.0
5
MM1Z13
WI
13
12.4
14.1
5
30
170
1.0
0.1
8.0
7.0
11.0
5
MM1Z15
WJ
15
13.8
15.6
5
30
200
1.0
0.1
10.5
9.2
13.0
5
MM1Z16
WK
16
15.3
17.1
5
40
200
1.0
0.1
11.2
10.4
14.0
5
MM1Z18
WL
18
16.8
19.1
5
45
225
1.0
0.1
12.6
12.4
16.0
5
MM1Z20
WM
20
18.8
21.2
5
55
225
1.0
0.1
14.0
14.4
18.0
5
MM1Z22
WN
22
20.8
23.3
5
55
250
1.0
0.1
15.4
16.4
20.0
5
MM1Z24
WO
24
22.8
25.6
5
70
250
1.0
0.1
16.8
18.4
22.0
5
MM1Z27
WP
27
25.1
28.9
2
80
300
0.5
0.1
18.9
21.4
25.3
2
MM1Z30
WQ
30
28.0
32.0
2
80
300
0.5
0.1
21.0
24.4
29.4
2
MM1Z33
WR
33
31.0
35.0
2
80
325
0.5
0.1
23.1
27.4
33.4
2
MM1Z36
WS
36
34.0
38.0
2
90
350
0.5
0.1
25.2
30.4
37.4
2
MM1Z39
WT
39
37.0
41.0
2
130
350
0.5
0.1
27.3
33.4
41.2
2
MM1Z43
WU
43
40.0
46.0
2
100
700
1.0
0.1
32.0
10.0
12.0
5
MM1Z47
WV
47
44.0
50.0
2
100
750
1.0
0.1
35.0
10.0
12.0
5
MM1Z51
WW
51
48.0
54.0
2
125
750
1.0
0.1
38.0
10.0
12.0
5
MM1Z56
XW
56
52.0
60.0
2
135
700
1.0
0.1
39.0
10.0
12.0
5
MM1Z62
6E
62
58.0
66.0
2
200
1000
1.0
0.2
47.0
10.0
12.0
5
MM1Z68
6F
68
64.0
72.0
2
250
1000
1.0
0.2
52.0
10.0
12.0
5
MM1Z75
6H
75
70.0
79.0
2
300
1000
1.0
0.2
57
10.0
12.0
5
Breakdown characteristics
at Tj=constant (pulsed)
Forward characteristics
www.yongyutai.com
Admissible power dissipation versus ambient temperature
PAGE 2
MM1Z Series
Pulse thermal resistance versus pulse duration
Dynamic resistance versus Zener current
Capacitance versus Zener voltage
Dynamic resistance versus Zener current
Dynamic resistance versus Zener current
Thermal differential resistance versus Zener voltage
www.yongyutai.com
PAGE 3
MM1Z Series
Dynamic resistance versus Zener voltage
Temperature dependence of Zener voltage versus Zener voltage
Temperature dependence of Zener voltage versus Zener voltage
Change of Zener voltage versus junction temperature
Change of Zener voltage versus junction temperature
Change of Zener voltge from turn-on up to the point of thermal
equilibrium versus Zener voltage
www.yongyutai.com
PAGE 4
MM1Z Series
SOD-123 PACKAGE OUTLINE Plastic surface mounted package
θ
θ
焊盘设计参考
Precautions: PCB Design
Recommended land dimensions for SOD-123 diode. Electrode patterns for PCBs
技术要求:
3.24
1.0
中心距:
3.24
1, 塑封体尺寸: 2.70 X 1.60
脚
宽:
0.55
2: 未注公差为: ±0.05
焊盘宽:
1.00
3, 所有单位: mm
脚
长:
0.50
焊盘长:
0.80
0.8
www.yongyutai.com
PAGE 5
