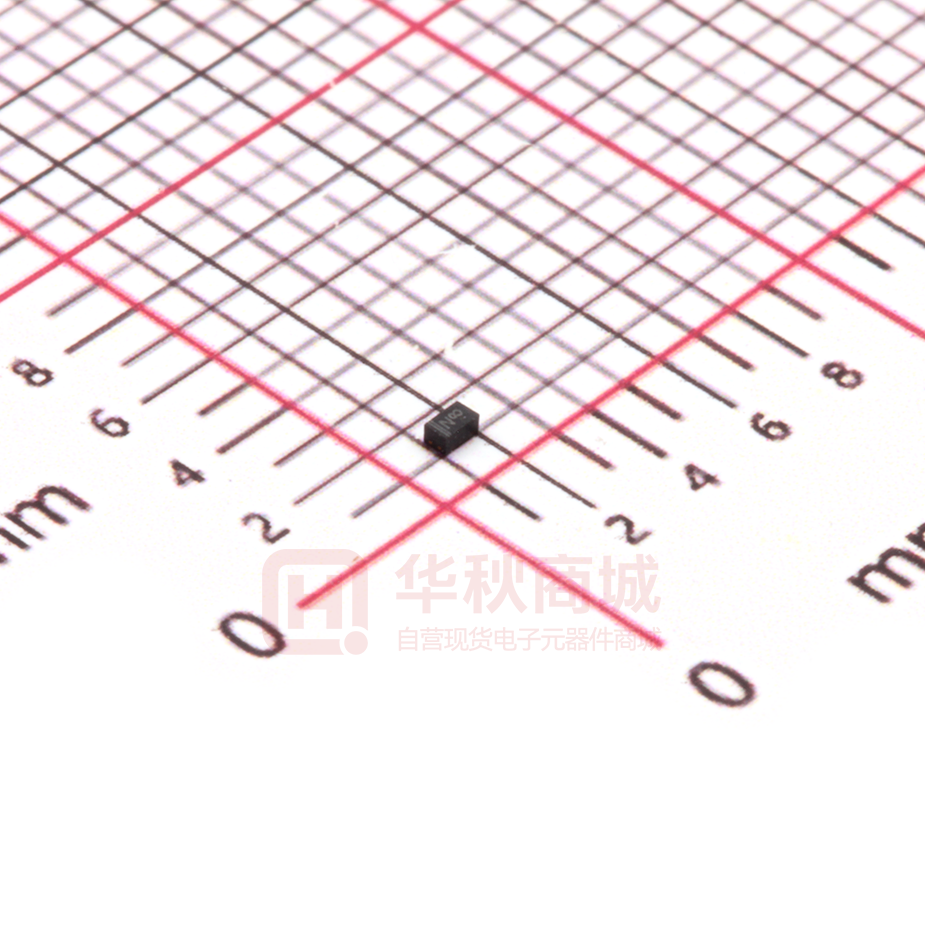

ESD0501BL

ESD0501BL Ultra Low Capacitance ESD Protection Diodes DFN1006 Plastic-Encapsulate ESD Protection Diodes DESCRIPTION ESD0501BL is a low-capacitance Transient Voltage Suppressor (TVS) designed to provid electrostatic discharge (ESD) protection For high-speed data interfaces. With typical capacitance of 0.5pF, ESD0501BL is designed to protect parasitic-sensitive systems against over-voltage and over-current transsient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transientt - EFT) (40A, 5/50 ns), very fast charged devicee model (CDM) ESD and cable discharge event (CDE), etc. ESD0501BL uses ultra-small DFN1006 package. Each ESD0501BL device can protect one high-speed data line. It offers system designers flexibility to protect single data line where space is a premium concern. The combined features of low capacitance, ultrasmall size and high ESD robustness make ESD0501BL ideal for high-speed data port and high-frequency line applications, such as cellular phoones and HD visual devices. Features          Peak Power Dissipation :100W (8/20μs) Transient protection for high speed data lines IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) Cable Discharge Event (CDE) Package optimized for hingh-speed lines Low clamping voltage Low Capacitance :0.5pF(Typical) Low leakage current Applications        Pin Configuration Serial ATA Desktops, Servers and Notebooks Cellular Phones MDDI Ports USB Data Line Protectioon Display Ports Digital Visual Interfacess (DVI) Circuit Diagram Mechanical Characteristics     Package: DFN1006 Flammability Rating: UL 94V-0 Packaging: Tape and Reel Terminals: Gold plated, solderable per MIL-STD-750, method 2026  Marking: N Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Symbol VESD Value ± 20 ± 20 Unit kV Peak Pulse Power(tp=8/20us waveform) PPP 100 W Operating Temperature TOPT −55 to +125 °C Storage Temperature Range TSTG −55 to +150 °C Lead Solder Temperature – Maximum (10 Second Duration) TL 260(10 sec.) °C The above data are for reference only. DN:T19C27A0 http://www.microdiode.com Rev:2019A0 Page :1 ESD0501BL Ultra Low Capacitance ESD Protection Diodes Electrical Characteristics (TA=25°C unless otherwise specified) Symbol bol Param Test Condition Min Typ Max Units 5.0 V VRWM Reverse Working Voltage VBR Reverse Breakdown Voltage IT = 1mA IR Reverse Leakage Current VRWM = 5V 100 nA IPP = 1A, tp = 8/20μs 13 V IPP = 4A, tp = 8/20μs 25 V VC Clamping Voltage CJ Junction Capacitance VR = 0V, f = 1MHz 6 V 0.5 pF The above data are for reference only. http://www.microdiode.com Rev:2019A0 Page :2 ESD0501BL Ultra Low Capacitance ESD Protection Diodes ELECTRICAL CHARACTERISTICS CURVE The above data are for reference only. http://www.microdiode.com Rev:2019A0 Page :3 ESD0501BL Ultra Low Capacitance ESD Protection Diodes Outlitne Drawing DFN1006 Package Outline Dimensions A DFN1006 Dim Min Max Typ A 0.50 0.45 0.55 b 0.45 0.55 0.50 D 1.05 0.95 1.00 E 0.55 0.60 0.65 e 0.40 L 0.20 0.30 0.25 R 0.07 0.17 0.12 All Dimensions in mm D R E b e L Suggested Pad Layout X1 Dimensions C G X X1 Y X Y Value (in mm) 0.90 0.40 0.50 1.10 0.50 Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. G C PACKAGE SPECIFICATIONS Package Reel Size DFN1006 Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) 178 10,000 210×210×205 100,000 445×445×230 400,000 7' Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev:2019A0 Page :4
