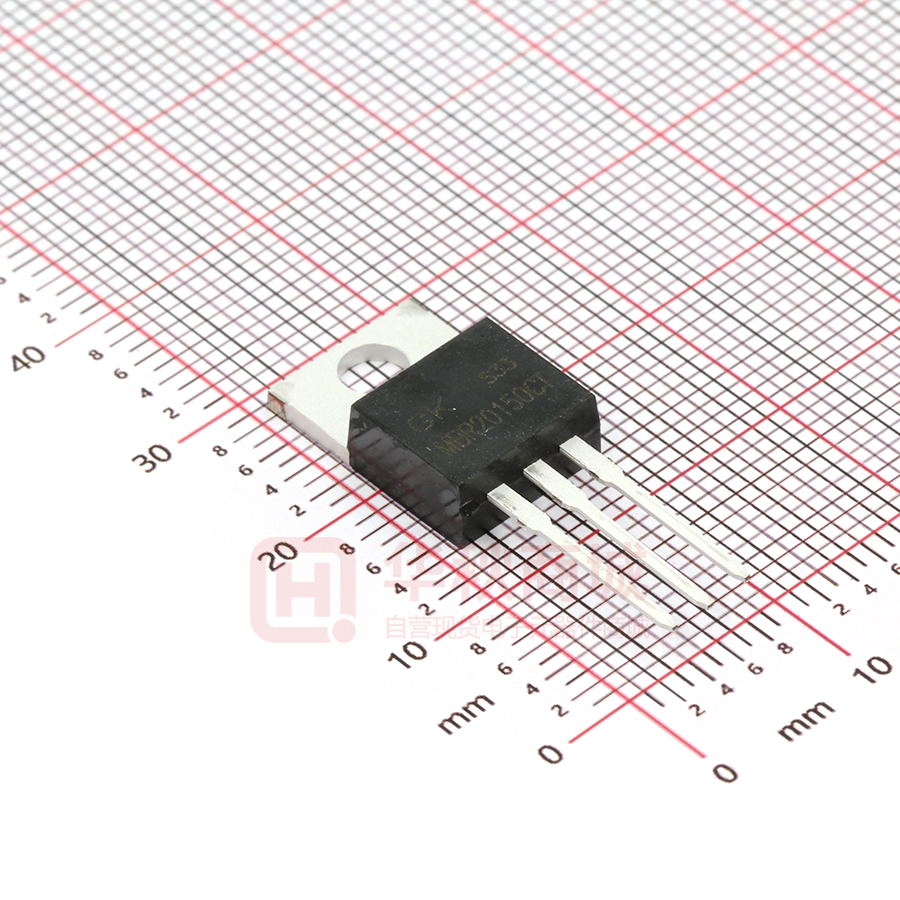

MBR20150CT

MBR201500CT THRU MBR20200CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 150 to 200 Volts FEATURES TO-220AB 0.185(4.70) 0.175(4.44) 0.154(3.91) DIA 0.148(3.74) 0.415(10.54) MAX 0.057(1.45) 0.051(1.30) 0.113(2.87) 0.103(2.62) 0.145(3.68) 0.135(3.43) 0.410(10.41) 0.390(9.91) PIN 1 2 3 0.635(16.13) 0.625(15.87) 0.560(14.2) 0.530(13.4) 0.350(8.89) 0.330(8.38) 1.148(29.16) 1.118(28.40) 0.160 (4.05) 0.140 (3.55) Forward Current - 20.0 Amperes The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C,0.25”(6.35mm) from case for 10 seconds 0.110(2.79) 0.100(2.54) 0.590(14.22) 0.530(13.46) MECHANICAL DATA 0.037(0.94) 0.027(0.68) 0.105 (2.67) 0.095 (2.41) 0.105 (2.67) 0.095 (2.41) 0.205 (5.20) 0.195 (4.95) 0.022(0.58) 0.014(0.35) PIN 1 PIN 2 PIN 3 CASE Dimensions in inches and (millimeters) Case: TO-220AB molded plastic body Terminals: Leads solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting Position: Any Weight:0.080 ounce, 2.24 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SYMBOLS MBR 20150CT MBR 20200CT UNITS Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current (see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 10.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C VRRM VRMS VDC 150 135 150 200 140 200 VOLTS VOLTS VOLTS Maximum thermal resistance(NOTE 1) Operating junction temperature range Storage temperature range RθJC TJ TSTG MDD Catalog Number Note: 1.Thermal resistance from junction to case I(AV) 20.0 Amps IFSM 150.0 Amps VF 0.95 Volts IR 0.2 50.0 mA 1.5 -55 to +150 -55 to +150 C/W C C RATINGS AND CHARACTERISTIC CURVES MBR20150CT THRU MBR20200CT FIG.1 TYPICAL FORWARD CHARACTERISTICS FIG.2 FORWARD DERATING CURVE 20 Average Forward Rectified Current, (A) Instantaneous Forward Current, (A) 100 10 1.0 16 12 8.0 4.0 0 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 0 1.5 Instantaneous Forward Voltage, ( V ) FIG.3 TYPICAL REVERSE CHARACTERISTICS 50 75 100 125 150 Case Temperature, ( °C ) FIG.4 PEAK FORWARD SURGE CURRENT 1000 150 Peak Forward Surge Current, (A) Instantaneous Reverse Leakage µ A) Current, (μ m μ 25 100 10 TA=100°C 1.0 TA=25°C 0.1 120 90 60 30 0 0.01 0 20 40 60 80 100 120 140 Percent Of Rated Peak Reverse Voltage, % 1 10 Number Of Cycles At 60Hz The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 100
