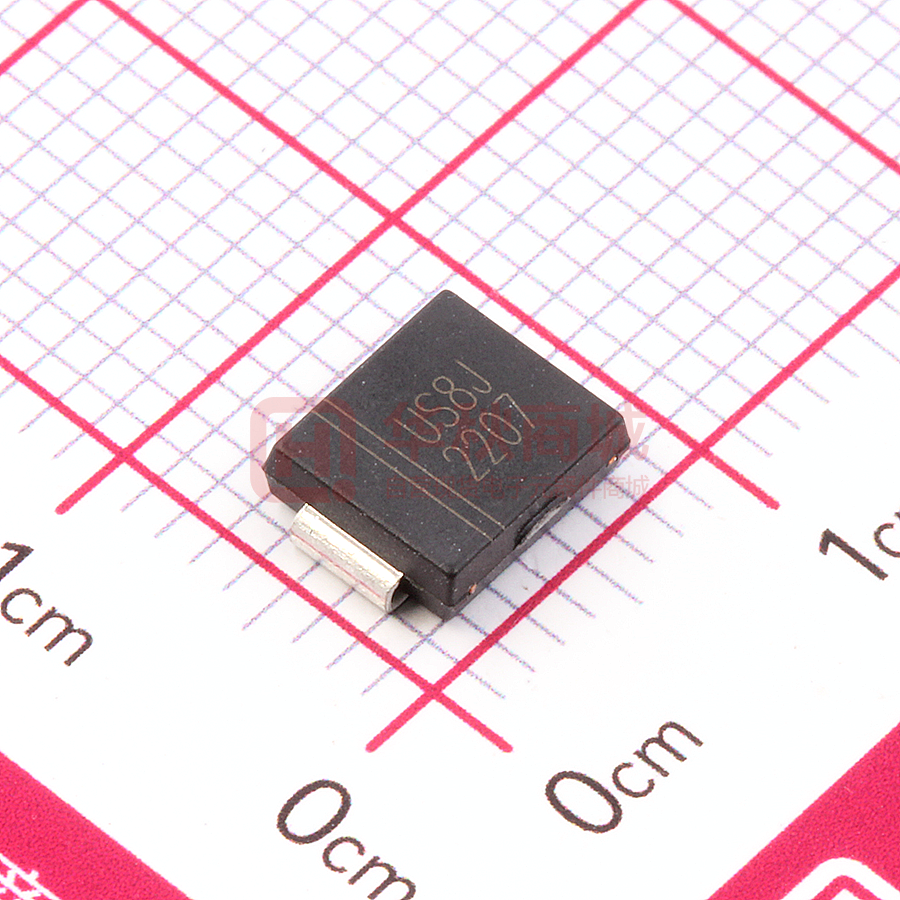

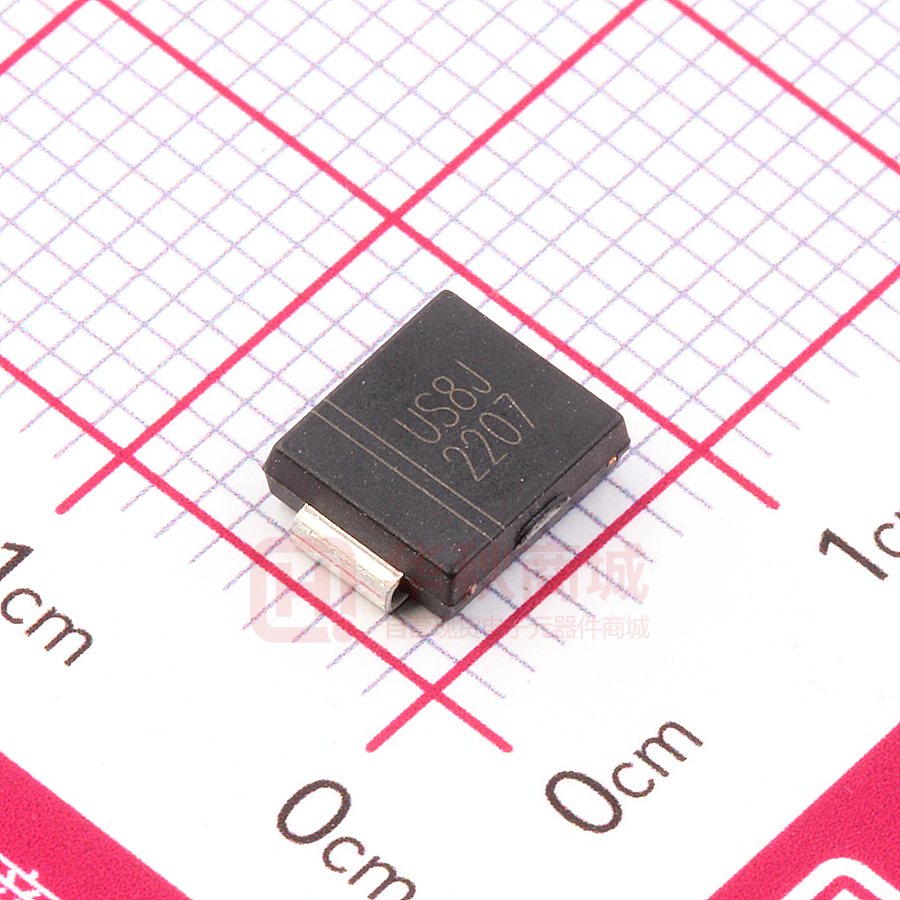

US8JC

山东晶导微电子股份有限公司 US8AC THRU US8MC Jingdao Microelectronics co.LTD Surface Mount Ultrafast Recovery Rectifier Reverse Voltage – 50~1000 V PINNING Forward Current – 8 A PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Superfast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Marking Code: US8A~US8M Simplified outline SMC symbol MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 217mg / 0.0077oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols Parameter US8AC US8BC US8DC US8GC US8JC US8KC US8MC Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at T c = 100 °C I F(AV) 8 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 150 A Maximum Instantaneous Forward Voltage @8 A VF Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range 1.0 1.3 1.7 10 100 IR V μA Cj 65 55 pF t rr 50 80 ns RθJA 35 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.04 SMC-U-US8AC~US8MC-8A1KV Page 1 of 3 山东晶导微电子股份有限公司 US8AC THRU US8MC Jingdao Microelectronics co.LTD Fig.1 Reverse Recovery Time Characteristic And Test Circuit Diagram 50 ohm Noninductive t rr 10 ohm Noninductive +0.5 D.U.T + PULSE GENERATOR Note 2 25Vdc approx 0 - -0.25 1 ohm NonInductive OSCILLOSCOPE Note 1 -1.0 Note：1.Rise Time = 7ns, max. Input Impedance = 1megohm,22pF. 2. Ries Time =10ns, max. Source Impedance = 50 ohms. 20ns/div Set time Base for 20ns/div Fig.3 Typical Reverse Characteristics 11.2 300 9.6 100 I R - Reverse Current ( μ A) Average Forward Current (A) Fig.2 Maximum Average Forward Current Rating 8.0 6.4 4.8 3.2 1.6 Single phase half-wave 60 Hz resistive or inductive load 50 75 10 T J =75°C 1.0 T J =25°C 0.1 0.0 25 T J =125°C 100 125 150 20 0 175 40 Case Temperature (°C) 10 Junction Capacitance ( pF) Instaneous Forward Current (A) 80 100 Fig.5 Typical Junction Capacitance Fig.4 Typical Forward Characteristics T J =25°C 1.0 US8AC~US8DC US8GC 0.1 60 % of PIV.VOLTS US8JC~US8MC 0.01 T J =25°C 100 10 T J=25°C f = 1.0MHz V sig = 50mV p-p US8AC~US8GC US8JC~US8MC 1 0.001 0 0.5 1.0 1.5 0.1 Instaneous Forward Voltage (V) 1.0 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.6 Maximum Non-Repetitive Peak Forward Surage Current 210 180 150 120 90 60 30 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2017.04 www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 US8AC THRU US8MC Jingdao Microelectronics co.LTD PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size 3.8 (150) 4.1 (160) 4.3 (170) 4.1 (160) Type number Marking code US8AC US8A US8BC US8B US8DC US8D US8GC US8G US8JC US8J US8KC US8K US8MC US8M mm Unit ： (mil) 2017.04 JD707081B20 Page 3 of 3
