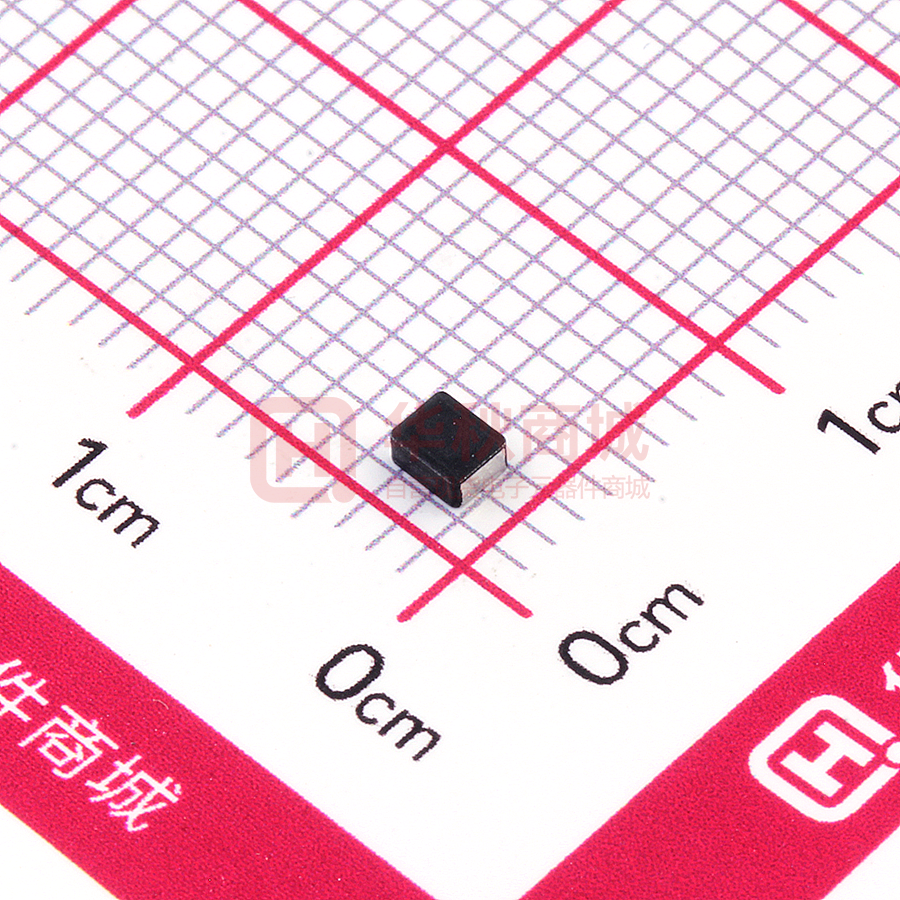

MCS25GD-2R2MHC

SPECIFICATION FOR APPROVAL ※This is a RoHS and REACH compliant product whose related documents are available on request. ※Graphic is only for dimensionally application. 1. PART NUMBERING IDENTIFICATION MCS 25GD - □□□ □ HC CONTROL NO. TOLERANCE INDUCTANCE DIMENSIONS PRODUCT SYMBOL 2. MECHANICAL DIMENSION UNIT: mm DIM. TOL. M1 2.5 ±0.2 M2 2.0 ±0.2 M3 1.2 MAX. M4 0.6 ±0.3 3. ELECTRICAL SPECIFICATION Part number Inductance (uH) ±20% DC Resistance (mΩ) Typical DC Resistance (mΩ) MAX. Irms (A) Typical Irms (A) MAX. I sat (A) Typical I sat (A) MAX. MCS25GD-R47MHC 0.47 16 22 5.8 4.9 6.8 6.2 MCS25GD-1R0MHC 1.0 36 44 3.9 3.3 4.8 4.3 MCS25GD-2R2MHC 2.2 74 89 2.5 2.2 3.5 3.2 Note: 1. Test Freq: 1MHz, 1V 2. All test referenced to 26℃ ambient. 3. Operating Temperature range: -40℃ to +125℃ 4. Storage Temperature range: -50℃ to +125℃ 5. Taping Package Storage Condition: 5-1. Storage Temperature: 5 to 40℃, Relative Humidity: < 65% RH 5-2. Storage Time: 12 months max 6. Isat means that DC current will cause a 30% inductance reduction from initial value. 7. Irms means that DC current will cause coil temp. rising to 40℃ whichever is smaller. Rev.E P1 SPECIFICATION FOR APPROVAL 4. ELECTRICAL CURVE
