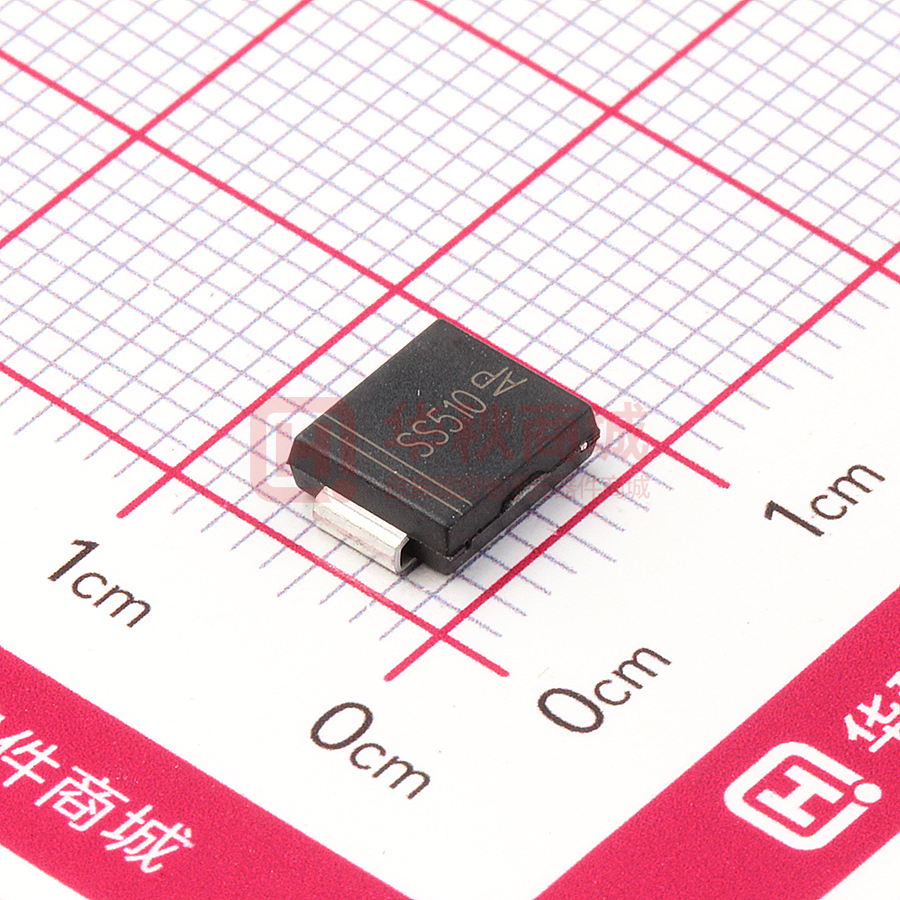

SS510CG

SS52CG THRU SS520CG Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200V Forward Current - 5.0A PINNING PIN FEATURES • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Marking Code: SS52 ~ SS520 Simplified outline SMC and symbol MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.22g / 0.0077oz Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Symbols Parameter SS52CG SS54CG SS56CG SS58CG SS510CG SS512CG SS515CG SS520CG Units Maximum Repetitive Peak Reverse Voltage V RRM 20 40 60 80 100 120 150 200 V Maximum RMS voltage V RMS 14 28 42 56 70 84 105 140 V Maximum DC Blocking Voltage V DC 20 40 60 80 100 120 150 200 V Maximum Average Forward Rectified Current I F(AV) Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM Max Instantaneous Forward Voltage at 5 A Maximum DC Reverse Current T a = 25°C at Rated DC Reverse Voltage T a =100°C Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating Junction Temperature Range Storage Temperature Range VF 175 0.55 0.45 Cj 0.70 1.0 50 IR 150 A 0.85 V mA 400 600 pF RθJA 35 °C/W Tj -55 ~ +150 °C T stg -55 ~ +150 °C （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. REV.08 A 5.0 1 of 3 SS52CG THRU SS520CG Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve Average Forward Current (A) 6.0 5.0 4.0 3.0 2.0 1.0 0.0 25 50 75 100 125 150 10 4 T J =100°C 10 3 10 1 T J =25°C 10 0 0 Case Temperature (°C) 60 80 100 Fig.4 Typical Junction Capacitance T J =25°C Junction Capacitance ( pF) 20 10 1 SS52CG SS54CG SS56CG/SS58CG SS510CG/SS520CG 0.1 0 0.5 1.0 1.5 100 SS52CG/SS54CG SS54F /SS520F SS56CG~SS520CG 20 10 0.1 1 10 100 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance SS52CG ~SS58CG 175 SS510CG ~SS520CG 150 125 100 75 50 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 500 Instaneous Forward Voltage (V) 180 25 1000 2.0 Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) Peak Forward Surage Current (A) 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic 10 100 Number of Cycles at 60Hz REV.08 T J =75°C 10 2 100 10 1 0.01 0.1 1 10 t, Pulse Duration（sec） 2 of 3 100 SS52CG THRU SS520CG PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size Type number 3.8 (150) 4.1 (160) 4.3 (170) 4.1 (160) mm Unit ： (mil) REV.08 3 of 3 Marking code SS52CG SS52 SS54CG SS54 SS56CG SS56 SS58CG SS58 SS510CG SS510 SS512CG SS512 SS515CG SS515 SS520CG SS520
