TB120FA

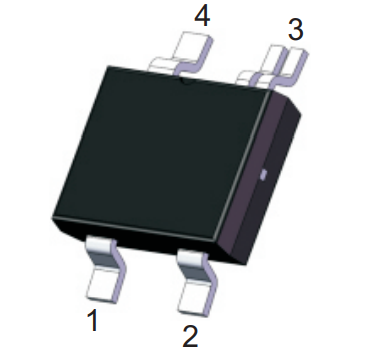

　 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SU R GE SUPPRESSOR BRIDGE SERIES PINNING FEATURES • Lead Free Finish/RoHS Compliant • Green Molding Compound (No Halogen and Antimony) • Lower clamping voltage and excellent performance on ringing waves testing. • Glass Passivated Chip Junction • High Surge Current Capability • Designed for Surface Mount Application PIN DESCRIPTION 1 Input Pin（~） 2 Input Pin（~） 3 Output Anode（+） 4 Output Cathode（-） 4 1 MECHANICAL DATA • Case: MBF-T • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 75mg / 0.0026oz 3 2 MBF-T Package Maximum Ratings and Thermal Characteristics(TA = 25°C unless otherwise specified) Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Parameter of Bridge Rectifier Symbols Average Rectified Output Current at T C = 125 °C TB110F TB110FA TB120F TB120FA TB240F TB240FA Units IO 1.0 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) I FSM 20 A Maximum Forward Voltage at 1.0 A VF 1.1 V IR 5 100 μA Cj 8 pF RθJA 130 °C/W T j , T stg -55 ~ +150 °C Maximum DC Reverse Current at Rated DC Blocking Voltage (@VR=1000V) @ T A =25 °C @ T A =125 °C Typical Junction Capacitance（f=1MHz,4V DC） Typical Thermal Resistance（Note1） Operating and Storage Temperature Range Note: 1. Mounted on glass epoxy PC board with 4×1.5"×1.5"（3.81×3.81 cm）copper pad. Parameter of TVS Symbol TB110F TB120F Maximum allowable continuous AC voltage at 50-60Hz V RMS 135 155 Breakdown voltage @ 1mA V BR Maximum allowable continuous DC voltage V DC Maximum peak current(8/20us@12Ω)(Note2) I peak Operating and Storage Temperature Range TB240F TB110FA TB120FA TB240FA 310 135 155 310 209~231 237~263 492~543 209~231 237~263 492~543 190 220 440 190 35 T j , T stg 220 40 -55 ~ +150 440 Unit V V V A °C Note: 2.The internal resistance of lightning surge generator is 2 Ω, and the series resistance of test circuit is 10 Ω. 2020.12 MBF-T-TB110F-FA~TB240F/FA Page 1 of 4 　 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SU R GE SUPPRESSOR BRIDGE SERIES Fig.2 Typical Reverse Characteristics 1.2 1.0 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 1.0 1.5 100 120 140 T J =25°C 10 2.0 0.1 20 15 10 05 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 1.0 10 100 Reverse Voltage (V) 100 Transient Thermal Impedance（ °C /W） Peak Forward Surage Current (A) 80 1 0.5 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance 1000 100 10 Number of Cycles 2020.12 60 100 Instaneous Forward Voltage (V) 1 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 4 　 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SU R GE SUPPRESSOR BRIDGE SERIES • Recommended condition of flow soldering Preliminary Heating 300 Soldering Cooling (in air) 265°C Temperature of Soldering (°C) 250 245°C 200 150 120°C 100 100°C 50 0 2 to 5 min more than 1 min less than 10s • Recommended condition of reflow soldering 300 Peak Temperature 245 to 260°C, 10s max. Temperature of Soldering (°C) 250 Reflow Heating Rate 1 to 5°C / s 200 150 100 50 Pre Heating Rate 1 to 5°C / s Preliminary Heating 130 to 170°C, 50 to 120s Soldering 230°C 20 to 30s Cooling more than 60s 0 2 times max. Recommended peak temperature is over 245 °C. If peak temperature is below 245 °C, you may adjust the following parameters; time length of peak temperature (longer), time length of soldering (longer), thickness of solder paste (thicker) • Condition of hand soldering Temperature: 370°C Time: 3s max. Times: one time • Remark: Lead free solder paste (96.5Sn/3.0Ag/0.5Cu) 2020.12 www.sdjingdao.com Page 3 of 4 　 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SU R GE SUPPRESSOR BRIDGE SERIES PACKAGE OUTLINE Plastic surface mounted package; 5 leads MBF-T ∠ALL ROUND a A C L1 L d HE E b e D e MBF-T mechanical data A C D E HE d e L L1 max 1.6 0.22 5.0 4.1 7.0 2.7 0.8 1.7 1.1 min 1.2 0.15 4.5 3.6 6.4 2.3 0.5 1.3 0.5 max 63 8.7 197 161 276 106 31 67 43 min 47 5.9 177 142 252 91 20 51 20 UNIT mm ∠ a b 0.2 0.9 7° mil 8 35 Marking Type number 6.0 236 0.9 35 1.1 43 2.4 94 2.5 100 Marking code TB110F TB110F TB120F TB120F TB240F TB240F TB110FA TB110FA TB120FA TB120FA TB240FA TB240FA mm Unit ： (mil) TBXXXFA 2020.12 JD201205 Page 4 of 4
