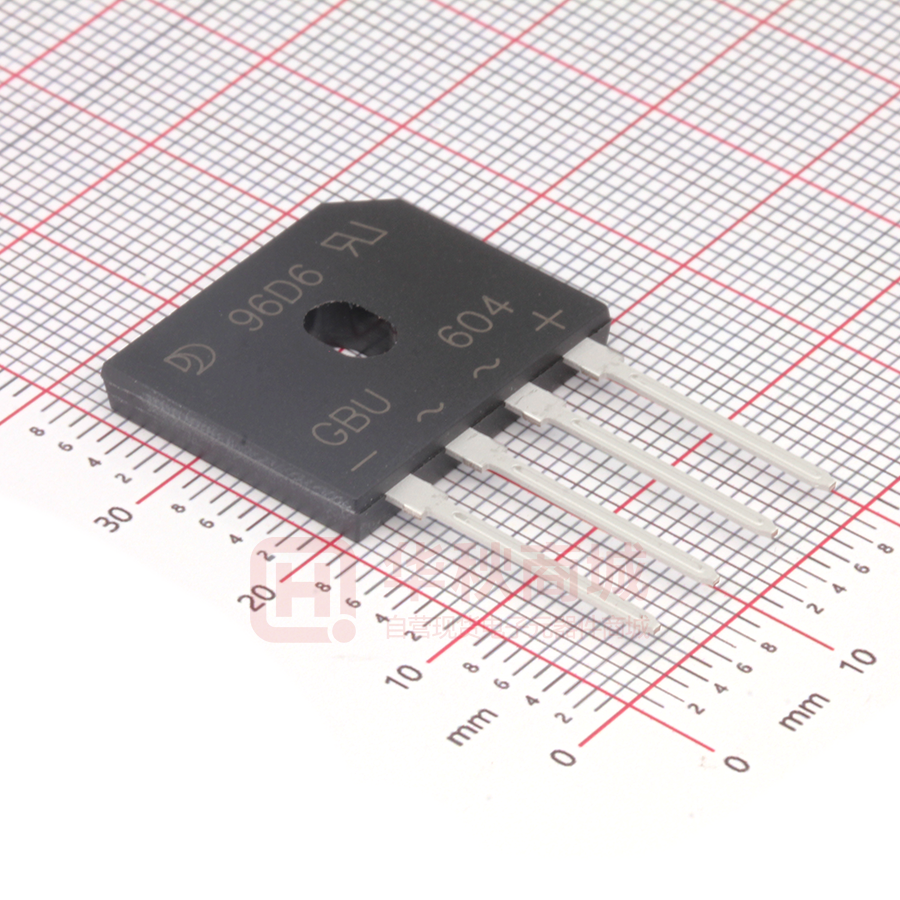

山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD GBU604 THRU GBU610-C8.0 6A Plug-in GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: • Glass Passivated Chip • Reverse Voltage - 400 to 1000 V • Forward Current - 6.0 A • Small size, simple installation • High Surge Forward Current Capability • Component in accordance to ROHS 2002/95/EC MECHANICAL DATA • Package: GBU • Epoxy meets UL 94V-0 flammability rating • Terminals: Pure tin plated leads, solderable per J-STD-002 and JESD22-B102, E3 suffix for consumer grade, meet JESD201 class 1A whisker test. • Polarity: As marked on body • Approx Weight: 3.8g ( 0.134oz) GBU-C8.0 Package Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Parameter Symbols GBU604 GBU606 GBU608 GBU610 Units Maximum Repetitive Peak Reverse Voltage V RRM 400 600 800 1000 V Maximum RMS voltage V RMS 280 420 560 700 V V DC 400 600 800 1000 V Maximum DC Blocking Voltage Average Rectified Output Current IO 6.0 3.0 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 175 A Maximum Forward Voltage at 3.0 A（Note1） VF 1.0 V IR 5 500 μA Cj 50 pF RθJA RθJC 22 5 °C/W T j , T stg -55 ~ +150 °C With heatsink T c =100°C Without heatsink T a =25°C Maximum DC Reverse Current at Rated DC Blocking Voltage T a =25 °C T a =125 °C Typical Junction Capacitance（Note2） Typical Thermal Resistance（Note3） Operating and Storage Temperature Range Note: 1. Pulse test with PW=300μs, 1%duty cycle. 2. Measured at 1MHz and applied reverse voltage of 4 V D.C. 3. Mounted on glass epoxy PC board with 4×2.54×50.8mm copper pad and With heatsink . 2020.09 www.sdjingdao.com GBU-A-GBU602~ GBU610 -6A1KV Page 1 of 2 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD GBU604 THRU GBU610-C8.0 Typical characteristic curve 7 With heatsink I FMAX-T c 6 5 4 I FMAX-T a 3 2 1 0 25 50 75 100 Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 125 150 100 T J =125°C 10 T J =25°C 1.0 0.1 175 00 Ambient/ Case Temperature (°C) 200 300 400 500 600 700 Rated Peak Reverse Voltage （V） Fig.4 Maximum Non-Repetitive Peak Forward Surage Current Fig.3 Typical Instaneous Forward Characteristics 200 10 T J=25°C Peak Forward Surage Current (A) Instaneous Forward Current (A) 100 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 0.5 1.0 1.5 150 100 50 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 2.0 10 100 Number of Cycles Instaneous Forward Voltage (V) PACKAGE OUTLINE Plastic surface mounted package; 4 leads GBU-C8.0 Package 3.8 (0.150) 3.4 (0.134) 22.3 (0.878) 21.7 (0.854) 3.0×45° top MAX 2.0 TYP 10.0 18.8 (0.740) 18.2 (0.717) TYP R1.8 1.85(0.073) 2.75(0.108) 7.5(0.295) 8.5(0.335) 1.27 (0.05) TYP 5.5 1.02 (0.04) 5.2 (0.205) 5.0 (0.197) 2020.09 TYP 2.0 0 .60 (0.024) 0 .48 (0.018) TYP 5.08 www.sdjingdao.com Unit ：mm (inches) PG200922 Page 2 of 2
