Technical Data 4116
Effective October 2015
Supersedes March 2007

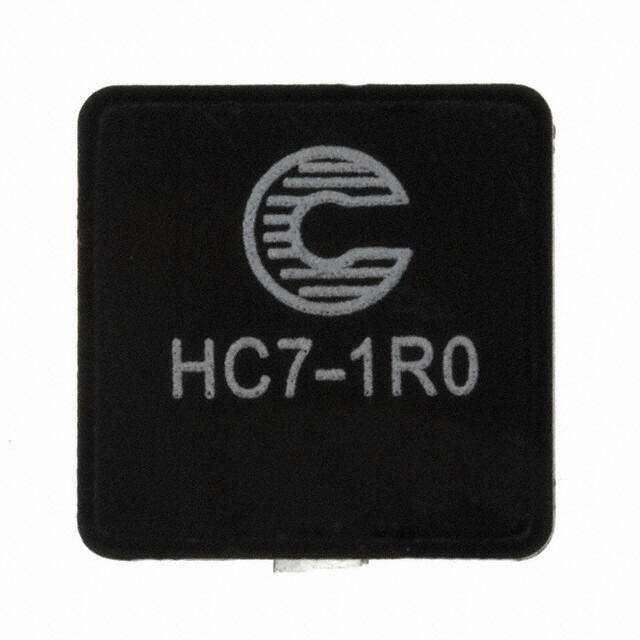

HC7
High current power inductors
Applications
Product description
•
Surface mount inductors designed for higher
speed switch mode applications requiring lower
inductance, low voltage and high current
•
Design utilizes high temperature powder iron
material with a non-organic binder to eliminate
thermal aging
•
Inductance range from 0.22 uH to 4.81 uH
•
Current range from 9.2 to 86.5 Amps
•
Frequency range 1kHz to 500kHz
•
Multi-phase regulators
•
Voltage Regulator Modules (VRMs)
•
Distributed power systems DC-DC converters
•
Desktop and server VRMs and EVRDs
•
Point-of-Load (POL) modules
•
Field Programmable Gate Array (FPGA) DC-DC
converters
•
Battery power systems
•
High current power supplies
•
Data networking and storage systems
Environmental data
•
Storage temperature range (component):
-40°C to +155°C
•
Operating temperature range: -40°C to +155°C
(ambient plus self-temperature rise)
•
Solder reflow temperature:
J-STD-020D compliant
HALOGEN
Pb HF
FREE
HC7
High current power inductors
Technical Data 4116
Effective October 2015
Product specifications
Part number6
OCL1 (μH) ±20%
lrms2 (amps)
lsat3 (amps) 15%
rolloff
lsat4 (amps) 30%
rolloff
DCR (mΩ) maximum
@ 20°C
Volt-μsec5
(V-μs)
HC7-R20-R
0.22
35.8
45.8
86.5
0.67
2.27
HC7-R47-R
0.53
23.4
27.5
51.9
1.60
3.83
HC7-1R0-R
1.05
20.3
19.6
37.1
2.10
5.36
HC7-1R5-R
1.73
14.2
15.3
28.8
4.30
6.90
HC7-2R2-R
2.58
13.0
12.5
23.6
5.20
8.40
HC7-3R9-R
3.61
10.4
10.6
20.0
7.90
10.0
HC7-4R7-R
4.81
9.8
9.2
17.3
9.00
12.6
6. Part number definition: HC7-XXX-R
HC7 = Product code and size
XXX = Inductance value in uH. R = Decimal point. If no R is present, then last character equals the
number of zeros
-R suffix indicates RoHS compliant
1. Open Circuit Inductance (OCL) Test Parameters: 100kHz, 1.0Vrms, 0.0Adc, @ +25°C
2. Irms: DC current for an approximately ΔT of 40°C without core loss. Derating is necessary for AC
currents. Pad layout, trace thickness and width, airflow, and proximity of other heat generating
components will affect the temperature rise. It is recommended that the temperature of the part not
exceed 155°C under worst case conditions verified in the end application.
3. Peak current for approximately 15% rolloff @+20°C
4. Peak current for approximately 30% rolloff @+20°C
5. Applied Volt-Time product (V-μs) across the inductor. This value represents the applied V-μs at
operating frequency necessary to generate additional core loss which contributes to the 40°C
temperature rise. De-rating of the Irms is required to prevent excessive temperature rise.
The 100% V-us rating is equivalent to a ripple current Ip-p of 20% of Isat (30% rolloff option).
Dimensions–mm
FRONT VIEW
TOP VIEW
C
HC7-XXX
wwllyy R
SIDE VIEW
L
3.0 ± 0.25
(2x)
Height
Max
Length
Max
2.60 max
5.10
±0.40
13.0
Max
RECOMMENDED PAD LAYOUT
SCHEMATIC
3.50 typ
2plcs
Part number
Height mm
Length mm
HC7-R20-R
6.0
14.25
HC7-R47-R
5.5
13.8
HC7-1R0-R
5.5
13.8
HC7-1R5-R
5.5
13.8
HC7-2R2-R
5.5
13.8
HC7-3R9-R
5.5
13.8
HC7-4R7-R
5.5
13.8
1
Part marking: HC7= (Product code and size)-xxx=(inductance value
in uH, R= decimal point. If no R is present then last character equals
number of zeros. wwlyly=date code, R=revision level
Tolerances are ±0.2 millimeters unless stated otherwise
All soldering surfaces to be coplanar within 0.15 millimeter
Do not route traces or vias underneath the inductor
3.50 typ
2plcs
2
6.50 typ
Packaging information–mm
Supplied in tape and reel packaging, 610 parts per reel, 13” diameter reel.
4.0
1.5 dia
+0.1/-0.0
2.0
1.5 dia
min
A
1
A0= 13.00 mm
A1= 4.00 mm
B0= 13.00 mm
B1= 14.10 mm
B1
K0= 5.6 mm
K1= 6.0 mm
B0
11.5
24.0
+/-0.3
HC7-XX X
wwllyy R
2
K0
K1
SECTION A-A
16.00
A1
A
A0
User direction of feed
2
www.eaton.com/elx
1.75
HC7
High current power inductors
Technical Data 4116
Effective October 2015
Core loss
Irms DERATING WITH CORE LOSS
% of Applied Volt-u-Seconds
20
30
40
50
60
70
80
90
100 110 120 130 140 150 160 170 180 190 200
10
20
(maximum)
% of Irms specified from
zero ripple application
10
0
100kHz
200kHz
300kHz
400kHz
500kHz
30
40
50
60
70
80
90
100
Inductance characteristics
Inductance vs. IDC
5
4.5
4
HC7-R20
3.5
HC7-R47
3
HC7-1R0
L
2.5
(uH)
2
HC7-1R5
HC7-2R2
HC7-3R9
1.5
HC7-4R7
1
0.5
0
0
6
12
18
24
30
36
42
48
54
60
66
72
78
84
lDC (Amps)
www.eaton.com/elx
3
HC7
High current power inductors
Technical Data 4116
Effective October 2015
Solder reflow profile
TP
TC -5°C
tP
Max. Ramp Up Rate = 3°C/s
Max. Ramp Down Rate = 6°C/s
Temperature
TL
Preheat
A
T smax
t
Table 1 - Standard SnPb Solder (Tc)
Package
Thickness
Volume
mm3
