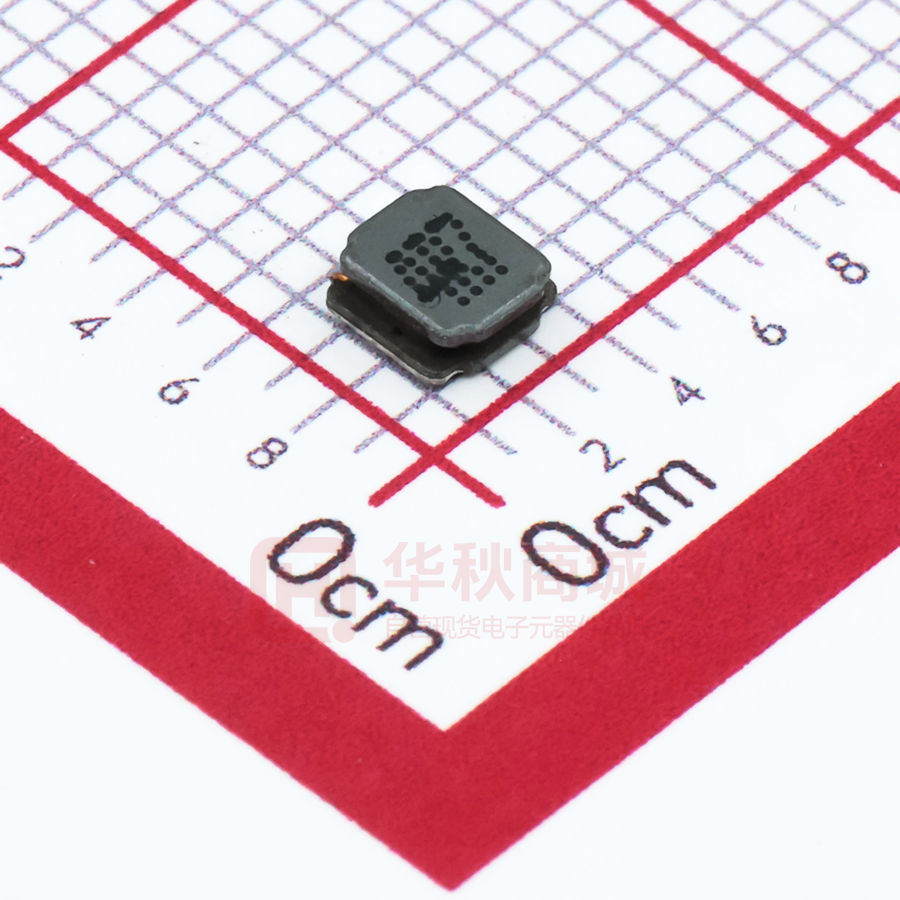

YNR3012-4R7M

SMD Power Inductors -YNR3012 Series ■ Features ● Low profile construction and miniature size. ● Magnetic shielded construction. ● High current saturation. ● Operating temperature:-40℃ ~ +125℃. ● RoHS compliant ■ Applications ● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.). ● Car navigation systems,telecom base stations. ● VR,AR,LED lighting. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. YNR3012 3.0±0.2 3.0±0.2 1.20 0.75±0.2 2.70 0.80 1.50 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YNR3012 Series ■ YNR3012 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR3012-R22□ 0.22 0.017 0.022 3.00 5.30 YNR3012-R47□ 0.47 0.020 0.024 2.95 2.95 YNR3012-1R0□ 1.00 0.040 0.052 2.20 1.87 YNR3012-1R5□ 1.50 0.045 0.059 2.01 1.62 YNR3012-1R8□ 1.80 0.063 0.082 1.65 1.30 YNR3012-2R2□ 2.20 0.075 0.098 1.55 1.20 YNR3012-2R7□ 2.70 0.085 0.110 1.48 1.14 YNR3012-3R3□ 3.30 0.100 0.130 1.36 1.05 YNR3012-3R9□ 3.90 0.145 0.189 1.24 1.00 YNR3012-4R7□ 4.70 0.120 0.156 1.24 0.90 YNR3012-5R6□ 5.60 0.174 0.226 1.13 0.80 YNR3012-6R8□ 6.80 0.190 0.247 0.98 0.75 YNR3012-100□ 10.0 0.265 0.345 0.83 0.60 YNR3012-120□ 12.0 0.345 0.449 0.73 0.48 YNR3012-150□ 15.0 0.360 0.468 0.71 0.45 YNR3012-180□ 18.0 0.545 0.709 0.58 0.43 YNR3012-220□ 22.0 0.645 0.839 0.53 0.42 YNR3012-270□ 27.0 0.870 1.131 0.47 0.35 YNR3012-330□ 33.0 0.875 1.138 0.46 0.36 YNR3012-360□ 36.0 0.950 1.235 0.44 0.34 YNR3012-390□ 39.0 1.330 1.729 0.37 0.30 YNR3012-470□ 47.0 1.450 1.885 0.35 0.27 YNR3012-560□ 56.0 1.380 1.794 0.28 0.26 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YNR3012 Series ■ YNR3012 Series Part Number Inductance DC Resistance (Ω) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YNR3012-680□ 68.0 1.670 2.171 0.33 0.24 YNR3012-820□ 82.0 2.540 3.302 0.27 0.17 YNR3012-101□ 100 2.860 3.718 0.25 0.21 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YNR3012 Series ■ Taping Dimensions(Unit:mm) TYPE Chip Thickness W A B D P K Max T Max MPQ YNR3012 1.20 8.00 3.30 3.30 3.50 4.00 1.60 0.25 2000 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YNR3012 178±2.0 8.40±1.50 4.3±0.20 5.0±0.10 3.0±0.10 58±2.0 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YNR3012 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -5-
