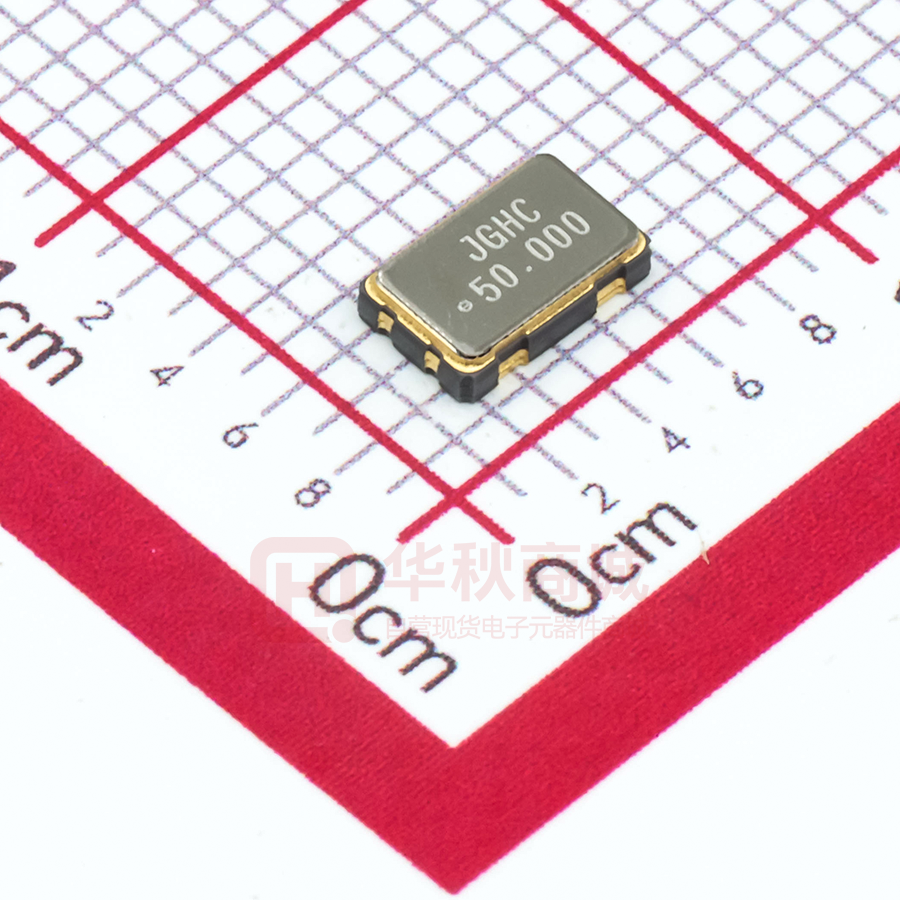

O5350000153350

www.jghcorp.com 【深圳市晶光华电子有限公司】  Small SMD seam sealed clock crystal oscillator units.  High precision characteristic covering up to wide frequency range.  Designed for automatic mounting and reflow soldering.  Tri-State function available.  Supply voltage range : 1.8 V ~ 5.0 V.  High stability, low jitter, low power consumption.  Main application : wireless communication set, PDA, and DSC. Crystals specifications ITEMS(项目) PARAMETER(规格说明) O53 Output Type(输出模式) CMOS Output Load(输出负载条件) 15 pF , 30 pF Oscillation Mode(振荡模式) Fundamental / 3rd Overtone Supply Voltage(电源电压) 1.8±10%V ；2.5±10%V ；2.8±10%V ；3.3±10%V；5±10%V； Frequency Range(输出频率范围) 1 ~ 150 MHz Frequency Stability ± 20 ppm , ± 25 ppm , ± 30 ppm , ± 50 ppm Operating Temperature Range(工作温度) - 10 ~ + 70 ℃ , - 40 ~ + 85 ℃ Storage Temperature Range(储存温度) - 55 ~ + 125 ℃ Oscillating voltage(振荡电压) Voltage Vol ( Max. ) 10 % VCC Max. Voltage Voh ( Min. ) 90 % VCC Min 8 ns Max. Rise ( Tr ) / Fall ( Tf ) Time：上升/下降时间 Current Consumption（功耗） 1-75 MHz 5 mA Max. 10 mA Max. 20 mA Max. 75-150 MHz 15 mA Max. 20 mA Max. NA Symmetry(占空比) 40 ~ 60 % Start-up Time(振荡启动时间) 5 ms Max. Phase Jitter ( 12 KHz ~ 20 MHz ) Dimensions 1 ps Max. Aging ( at 25 ℃ )频率老化 ± 3 ppm / year Max. Packing Unit(包装单位) 1,000pcs/Reel
