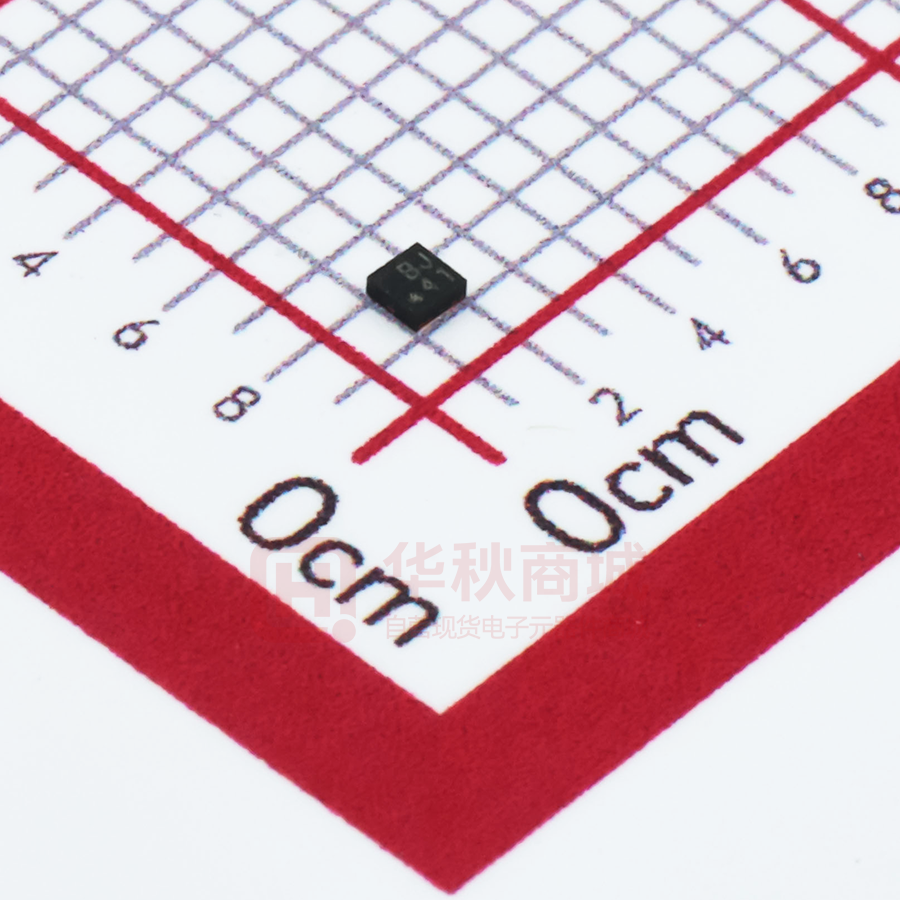

RS3236-3.3YUTDN4

RS3236 Low Power, Low Dropout, 500mA RF Linear Regulators FEATURES DESCRIPTION  Low Dropout Voltage • Cellular Telephones • Camera Modules • Modems The RS3236 series low-power, low-dropout, CMOS LDO operate from 1.7V to 7.5V input voltage that can supply up to 500 mA of output current. Designed to meet the requirements of RF and analog circuits, the RS3236 series device provides low noise, high PSRR, low quiescent current, and low line and load transient response. The device is designed to work with a 1-µF input and a 1-µF output ceramic capacitor (no separate noise bypass capacitor required). An external noise bypass capacitor connected to the device’s BP pin can further reduce the noise level. Other features include a 10nA logic-controlled shutdown mode, foldback current limit and thermal shutdown protection. The RS3236 series is available in Green UTDFN- • HiFi Audio Radio Transceivers 1x1-4, SOT23-5 ， SOT353(SC70-5) package. It • PLL/Synthesizer, Clocking • Medium-Current, Noise-Sensitive Applications operates over an ambient temperature range of 40°C to +85°C.  Thermal-Overload Protection  Output Current Limit  10nA Logic-Controlled Shutdown  20μA Low Supply Current  1.7V to 7.5V Input Voltage Range  500mA Output Current  -40°C to +85°C Operating Temperature Range  Available in Green UTDFN-1x1-4, SOT23-5， SOT353(SC70-5) Package APPLICATIONS Functional Block Diagram Current Limit IN 1.2V VREF OUT Error amp Internal Controller Thermal Shutdown EN BP GND REV A.3 1 Copyright © 2017, RUNIC Technology www.run-ic.com RS3236 Pin Configuration and Functions (Top View) (TOP VIEW) (TOP VIEW) IN 1 5 OUT GND 2 EN UTDFN-1×1-4 3 4 BP SOT23-5/SOT353(SC70-5) UTDFN-1×1-4 DESCRIPTION I/O NUMBER NAME 1 OUT O Regulator Output. 2 GND G Ground. 3 EN I Enable Input. A logic low reduces the supply current to 10nA. Connect to IN for normal operation. 4 IN I - - Thermal Pad SOT23-5 /SOT353(SC70-5) NUMBER Regulator Input. Supply voltage can range from 1.7V to 7.5V. Bypass with a 1μF capacitor to GND. Connect the thermal pad to a large-area ground plane. This pad is not an electrical connection to the device ground. DESCRIPTION I/O NAME 1 IN I Regulator Input. Supply voltage can range from 1.7V to 7.5V. Bypass with a 1μF capacitor to GND. 2 GND G Ground. 3 EN I 4 BP O 5 OUT O Enable Input. A logic low reduces the supply current to 10nA. Connect to IN for normal operation. Reference-Noise Bypass (fixed voltage version only). Bypass with a low-leakage 0.01μF ceramic capacitor for reduced noise at the output. The capacitor is recommended to be placed very close to the pin for high PSRR. Regulator Output. 2 www.run-ic.com RS3236 PACKAGE/ORDERING INFORMATION MODEL VOUT (V) PINPACKAGE ORDERING NUMBER PACKAGE MARKING PACKAGE OPTION RS3236-0.8 0.8V UTDFN-1x1-4 RS3236-0.8YUTDN4 BA Tape and Reel, 10000 RS3236-1.0 1.0V UTDFN-1x1-4 RS3236-1.0YUTDN4 BB Tape and Reel, 10000 RS3236-1.2 1.2V UTDFN-1x1-4 RS3236-1.2YUTDN4 BC Tape and Reel, 10000 RS3236-1.5 1.5V UTDFN-1x1-4 RS3236-1.5YUTDN4 BD Tape and Reel, 10000 RS3236-1.8 1.8V UTDFN-1x1-4 RS3236-1.8YUTDN4 BE Tape and Reel, 10000 RS3236-2.05 2.05V UTDFN-1x1-4 RS3236-2.0YUTDN4 BF Tape and Reel, 10000 RS3236-2.5 2.5V UTDFN-1x1-4 RS3236-2.5YUTDN4 BG Tape and Reel, 10000 RS3236-2.8 2.8V UTDFN-1x1-4 RS3236-2.8YUTDN4 BH Tape and Reel, 10000 RS3236-3.0 3.0V UTDFN-1x1-4 RS3236-3.0YUTDN4 BI Tape and Reel, 10000 RS3236-3.3 3.3V UTDFN-1x1-4 RS3236-3.3YUTDN4 BJ Tape and Reel, 10000 RS3236-3.6 3.6V UTDFN-1x1-4 RS3236-3.6YUTDN4 BK Tape and Reel, 10000 RS3236-4.0 4.0V UTDFN-1x1-4 RS3236-4.0YUTDN4 BL Tape and Reel, 10000 RS3236-5.0 5.0V UTDFN-1x1-4 RS3236-5.0YUTDN4 BM Tape and Reel, 10000 RS3236-0.8 0.8V SOT23-5 RS3236-0.8YF5 LB08 Tape and Reel, 3000 RS3236-1.0 1.0V SOT23-5 RS3236-1.0YF5 LB10 Tape and Reel, 3000 RS3236-1.2 1.2V SOT23-5 RS3236-1.2YF5 LB12 Tape and Reel, 3000 RS3236-1.5 1.5V SOT23-5 RS3236-1.5YF5 LB15 Tape and Reel, 3000 RS3236-1.8 1.8V SOT23-5 RS3236-1.8YF5 LB18 Tape and Reel, 3000 RS3236-2.05 2.05V SOT23-5 RS3236-2.0YF5 LB20 Tape and Reel, 3000 RS3236-2.5 2.5V SOT23-5 RS3236-2.5YF5 LB25 Tape and Reel, 3000 RS3236-2.8 2.8V SOT23-5 RS3236-2.8YF5 LB28 Tape and Reel, 3000 RS3236-3.0 3.0V SOT23-5 RS3236-3.0YF5 LB30 Tape and Reel, 3000 RS3236-3.3 3.3V SOT23-5 RS3236-3.3YF5 LB33 Tape and Reel, 3000 RS3236-3.6 3.6V SOT23-5 RS3236-3.6YF5 LB36 Tape and Reel, 3000 RS3236-4.0 4.0V SOT23-5 RS3236-4.0YF5 LB40 Tape and Reel, 3000 RS3236-5.0 5.0V SOT23-5 RS3236-5.0YF5 LB50 Tape and Reel, 3000 RS3236-0.8 0.8V SOT353(SC70-5) RS3236-0.8YC5 LB08 Tape and Reel, 3000 RS3236-1.0 1.0V SOT353(SC70-5) RS3236-1.0YC5 LB10 Tape and Reel, 3000 RS3236-1.2 1.2V SOT353(SC70-5) RS3236-1.2YC5 LB12 Tape and Reel, 3000 RS3236-1.5 1.5V SOT353(SC70-5) RS3236-1.5YC5 LB15 Tape and Reel, 3000 RS3236-1.8 1.8V SOT353(SC70-5) RS3236-1.8YC5 LB18 Tape and Reel, 3000 RS3236-2.05 2.05V SOT353(SC70-5) RS3236-2.0YC5 LB20 Tape and Reel, 3000 RS3236-2.5 2.5V SOT353(SC70-5) RS3236-2.5YC5 LB25 Tape and Reel, 3000 RS3236-2.8 2.8V SOT353(SC70-5) RS3236-2.8YC5 LB28 Tape and Reel, 3000 RS3236-3.0 3.0V SOT353(SC70-5) RS3236-3.0YC5 LB30 Tape and Reel, 3000 RS3236-3.3 3.3V SOT353(SC70-5) RS3236-3.3YC5 LB33 Tape and Reel, 3000 RS3236-3.6 3.6V SOT353(SC70-5) RS3236-3.6YC5 LB36 Tape and Reel, 3000 RS3236-4.0 4.0V SOT353(SC70-5) RS3236-4.0YC5 LB40 Tape and Reel, 3000 RS3236-5.0 5.0V SOT353(SC70-5) RS3236-5.0YC5 LB50 Tape and Reel, 3000 3 www.run-ic.com RS3236 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1)(2) MIN MAX UNIT VIN Input voltage -0.3 8 V VEN Enable input voltage -0.3 VIN V TJ Junction temperature 150 °C PD Continuous power dissipation (3) Tstg Storage temperature (1) W Internally Limited -65 150 °C Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltages are with respect to the GND pin. Internal thermal shutdown circuitry protects the device from permanent damage. (2) (3) ESD Ratings V(ESD) Electrostatic discharge VALUE UNIT Human-body model (HBM) ±6000 V Machine model (MM) ±400 V MAX UNIT Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) (1) MIN VIN Input supply voltage 1.7 7.5 V VEN Enable input voltage 0 VIN V IOUT Output current 0 500 mA -40 +85 °C TJ Junction temperature (1) All voltages are with respect to the GND pin. Thermal Information RS3236 THERMAL METRIC (1) RS3236 RS3236 SOT353 (SC70-5) SOT23-5 4 PINS 5 PINS 5 PINS UTDFN-1x1-4 UNIT RθJA Junction-to-ambient thermal resistance 144.1 268 185.6 °C/W RθJC(top) Junction-to-case (top) thermal resistance 137.9 171.8 104.3 °C/W RθJB Junction-to-board thermal resistance 83.5 64.5 54.5 °C/W ψJT Junction-to-top characterization parameter 5.3 40.5 31.0 °C/W ψJB Junction-to-board characterization parameter 83.8 62.9 54.5 °C/W RJC(bot) Junction-to-case (bottom) thermal resistance 71.8 N/A N/A °C/W 4 www.run-ic.com RS3236 ELECTRICAL CHARACTERISTICS (VIN = VOUT (NOMINAL) + 0.5V (1), Full = -40°C to +85°C, unless otherwise noted.) PARAMETER SYMBOL Input Voltage VIN Output Voltage Accuracy (1) Maximum Output Current CONDITIONS IOUT = 0.1mA (1) Current Limit (1) ILIM Ground Pin Current IQ Dropout Voltage (2) VDROP IOUT = 300mA Line Regulation (1) ΔVLNR Load Regulation Output Voltage Noise Power Supply Rejection Ratio MIN MAX UNITS +25°C 1.7(1) TYP 7.5 V +25°C -2.5 2.5 % +25°C 500 +25°C 500 mA 800 mA +25°C 15 20 µA +25°C 450 550 mV VIN = (VOUT + 0.5V) to 7.5V, IOUT = 1mA +25°C 0.1 0.2 %/V ΔVOUT IOUT =0.1mA to 300mA, COUT = 1µF, +25°C 20 40 mV en f = 10Hz to 100kHz, CBP = 0.01µF, COUT = 10µF, IOUT=30mA +25°C 80 CBP = 0μF, ILOAD = 30mA, COUT = 1μF, VIN = VOUT+1V ΔVRIPPLE=0.2VP-P f = 217Hz +25°C CBP = 0.01μF, ILOAD = 30mA, COUT = 1μF, VIN = VOUT+1V ΔVRIPPLE=0.2VP-P f = 217Hz PSRR No load TEMP VOUT=3.3V 72 f = 1kHz f = 1kHz µ VRMS dB 70 74 +25°C dB 70 SHUTDOWN EN Input Threshold EN Input Threshold EN Input Bias Current Shutdown Supply Current Start-Up Time (4) VIH VIL VIH VIL EN = 7.5V IBL IQ(SHDN) 1.4 Full Full VIN = 7.5V IBH tSTR Full VIN = 1.7V V 0.4 2.3 Full 0.8 +25°C 0.01 EN = 0V Full 0.01 EN = 0V Full 0.01 +25°C 180 µs 140 °C COUT = 1μF, No Load 1 V 1 µA µA THERMAL PROTECTION Thermal Shutdown Temperature TSHDN NOTES: 1. VIN = VOUT (NOMINAL) + 0.5V or 1.7V, whichever is greater. 2. The dropout voltage is defined as VIN - VOUT, when VOUT is 100mV below the value of VOUT for VIN = VOUT + 0.5V. 3. Time needed for VOUT to reach 90% of final value. 5 www.run-ic.com RS3236 TYPICAL APPLICATION CIRCUIT Typical Circuit INPUT 1.7V to 7.5V 1 OUTPUT IN OUT 5 CIN 1uF COUT 1uF RS3236 ON OFF 3 BP EN 4 GND CBP 2 0.01uF 6 www.run-ic.com RS3236 TYPICAL PERFORMANCE CHARACTERISTICS VIN = VOUT (NOMINAL) + 0.5V, CIN = 1μF, COUT = 1μF, CBP = 0μF, TA = +25℃, unless otherwise noted. Turn On Speed with EN Pin Turn Off Speed with EN Pin 2V/div VOUT 1V/div 1V/div VEN VEN 2V/div VOUT VIN=4.3V,IOUT=0mA,VOUT=3.3V VIN=4.3V,IOUT=0mA,VOUT=3.3V Time(400us/div) Time(400us/div) Line Transient Response SHUTDOWN 2V 1V/div VIN 0V EN 3.3V 50mV/div VOUT 0V VOUT VIN=4V to 5V,IOUT=30mA Time(200us/div) Time(400us/div) Load Transient Response Load Transient Response 50mA/div 100mA/div IOUT IOUT 50mV/div 200mV/div VOUT VOUT IOUT=1mA to 300mA IOUT IOUT=50mA =50mAto to100mA 100mA Time(200us/div) Time(1ms/div) 7 www.run-ic.com RS3236 TYPICAL PERFORMANCE CHARACTERISTICS VIN = VOUT (NOMINAL) + 0.5V, CIN = 1μF, COUT = 1μF, CBP = 0.1μF, TA = +25℃, unless otherwise noted. CURRENT LIMIT vs TEMPERATURE 900 3 800 Output Voltage(V) Current Limit(mA) 850 2.5 750 700 2 1.5 650 600 1 0.5 550 500 0 -40 -15 10 35 Temperature(℃) 60 85 0 OUTPUT VOLTAGE ACCURACY vs TEMPERATURE 0.4 20 1 2 3 4 5 Input Votage(V) 6 7 GROUND CURRENT vs TEMPERATURE 0.3 Ground Current(uA) Output Voltage Accuracy(%) OUTPUT VOLTAGE vs INPUT VOLTAGE 3.5 0.2 0.1 0 -0.1 -0.2 -0.3 -0.4 18 16 14 12 10 -40 -15 10 35 Temperature(℃) 60 85 -40 -15 10 35 Temperature(℃) 60 85 GROUND CURRENT vs LOAD CURRENT 400 Ground Current(uA) 350 300 250 200 150 100 50 0 100 200 300 400 500 Load Current(mA) 8 www.run-ic.com RS3236 PACKAGE OUTLINE DIMENSIONS SOT23-5 D 1.90 b 2.59 E1 E 0.99 0.95 0.69 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 L A1 Symbol c θ Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950(BSC) 0.037(BSC) e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 9 www.run-ic.com RS3236 SOT353(SC70-5) D 1.30 b 1.9 E E1 0.75 Pin1 Index Area 0.65 0.4 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 c θ L A1 Symbol Dimensions In Millimeters L1 Dimensions In Inches Min Max Min Max A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 c 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e 0.650(BSC) 0.026(BSC) e1 1.300(BSC) 0.051(BSC) L 0.260 L1 θ 0.460 0.010 0.525 0° 0.018 0.021 8° 10 0° 8° www.run-ic.com RS3236 UTDFN-1x1-4 3 4 2 1 Dimensions In Millimeters Symbol MIN MOD MAX A 0.340 0.370 0.400 A1 0.000 0.020 0.050 A2 0.100REF D 0.950 1.000 1.050 D1 0.430 0.480 0.530 E 0.950 1.000 1.050 E1 0.430 0.480 0.530 b 0.170 0.220 0.270 e 0.600 0.650 0.700 f L 0.195REF 0.200 0.250 11 0.300 www.run-ic.com
