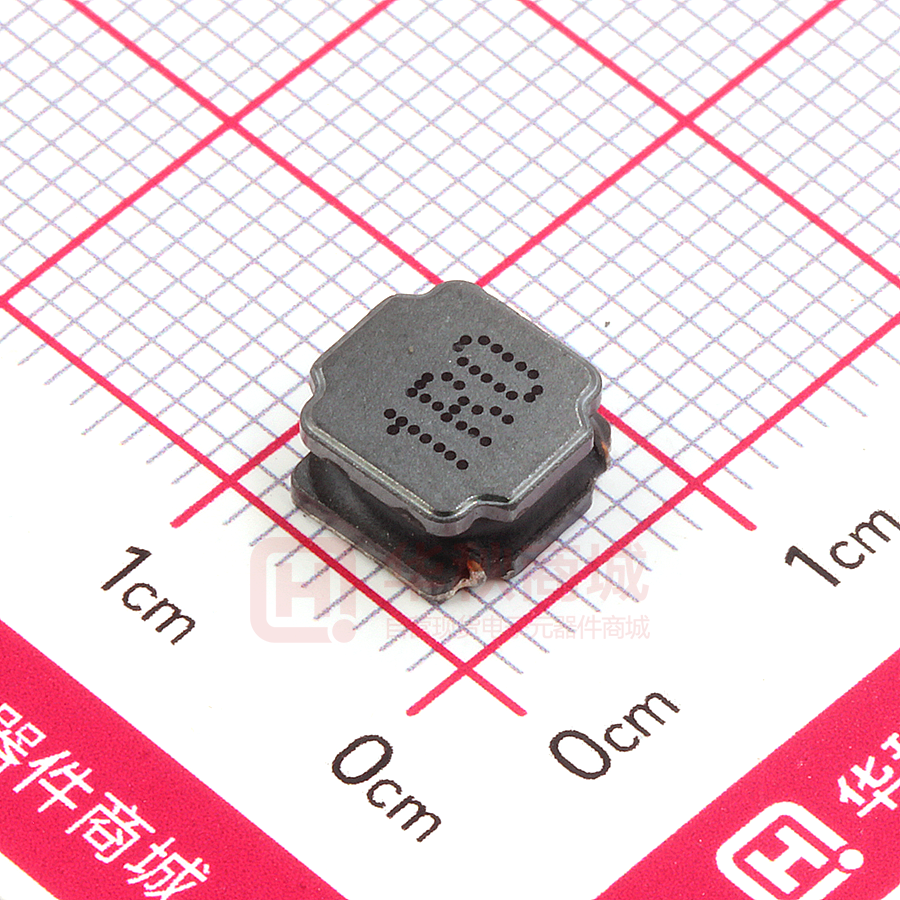

SLW8040S Series
Wire Wound SMD Power Inductor
Pb
◆ Features
1、Magnetic-resin shielded construction reduces
buzz noise to ultra-low levels;
2、Metallization on ferrite core results in excellent
shock resistance and damage-free durability;
3、Closed magnetic circuit design reduces leakage
flux and Electro Magnetic Interference (EMI);
4、30% higher current rating than conventional
inductors of equal size;
5、Take up less PCB real estate and save more
power。
◆ Applications
◆ Lead Free Part Numbering
1、LED Lighting;
2、Mobile devices with multifunction such as
adding color TV and camera;
3、Flat-screen TVs, blue-ray disc recorders,
set top boxes;
4、Notebooks, desktop computers, servers,
graphic cards;
5、Portable gaming devices, personal navigation
systems, personal multimedia devices;
6、Automotive systems
SLW 8040
(1)
(2)
(1)
(2)
(3)
(4)
S
100 M S
T
(3)
(4) (5) (6) (7)
Series Type
Dimension:L X H
Material Code
Inductance:2R2=2.2μH
;
100=10μH;101=100μH
(5) Inductance Tolerance:M= 20%, N= 30%
(6) Company Code
(7) Packaging Tape Carrier Package
±
±
:
7、Telecomm base stations
◆ Dimensions
Recommended Land Pattern
Unit:mm
Series
A
B
C
D
E
F
a Typ.
b Typ.
c Typ.
SLW8040S
8.0±0.3
8.0±0.3
4.2Max.
6.3±0.3
2.00±0.3
4.00±0.3
3.8
2.2
7.5
Rev03
Page 1 of 4
www.sunltech.com
SLW8040S Series
◆ Electrical Characteristics
℃
℃
1) Operating temperature range(Including self-heating):-40 ~ +125
2) Storage temperature range (packaging conditions): -10 ~+40 and RH 70% (Max.)
℃
℃
◆ Construction and material
◆ REFLOW-PROFILE
Rev03
Page 2 of 4
www.sunltech.com
SLW8040S Series
◆ Specification
Inductance
Part Number
@100KHz,1V
(μH)
Frequency(MHz)
Saturation
Current(A)
Heat Rating
Current (A)
DCR
S.R.F
Isat
Irms
DC Resistance
±30% (Ω)
Min.Self-resonant
SLW8040S Series
SLW8040SR82NST
0.82±30%
0.008
94
13.80
6.30
SLW8040S1R0MST
1.0±20%
0.008
89
9.85
6.30
SLW8040S1R5NST
1.5±30%
0.010
67
8.15
5.65
SLW8040S2R2MST
2.2±20%
0.012
41
7.10
5.15
SLW8040S3R3MST
3.3±20%
0.017
27
6.50
4.40
SLW8040S4R7MST
4.7±20%
0.019
24
5.90
4.10
SLW8040S5R6MST
5.6±20%
0.021
24
6.00
3.85
SLW8040S6R8MST
6.8±20%
0.024
20
4.55
3.60
SLW8040S8R2MST
8.2±20%
0.026
17
4.20
3.45
SLW8040S100MST
10±20%
0.029
15
3.60
3.30
SLW8040S120MST
12±20%
0.041
13
3.50
2.80
SLW8040S150MST
15±20%
0.047
12
2.95
2.60
SLW8040S220MST
22±20%
0.069
9.5
2.40
2.10
SLW8040S330MST
33±20%
0.097
7.8
2.05
1.80
CMLW8040S470MST
47±20%
0.136
6.4
1.75
1.55
SLW8040S560MST
56±20%
0.148
6.4
1.55
1.45
SLW8040S680MST
68±20%
0.196
4.9
1.45
1.25
SLW8040S101MST
100±20%
0.290
4.2
1.15
1.00
SLW8040S121MST
120±20%
0.334
3.5
1.05
0.95
SLW8040S151MST
150±20%
0.410
3.5
1.10
0.85
SLW8040S221MST
220±20%
0.599
3.5
0.85
0.80
SLW8040S331MST
330±20%
0.889
2.8
0.68
0.64
◆ Note
1
2
3
4
:All test data is referenced to 20°C ambient;
:Rated current: Isat or Irms, whichever is smaller;
:Isat: DC current at which the inductance drops approximate 30% from its value without current;
:Irms: DC current that causes the temperature rise (△ T =40°C) from 20°C ambient.
◆ Standard Packing Quantity:
:1000 pcs/reel
Rev03
Page 3 of 4
www.sunltech.com
SLW8040S Series
◆ TYPICAL ELECTRICAL CHARACTERISTICS
SLW8040S Series
Rev03
Page 4 of 4
www.sunltech.com
