SCT2650
技
Silicon Content Technology
Rev. 1.1
4.5V-60V Vin, 5A, High Efficiency Step-down DCDC Converter with
Programmable Frequency
FEATURES
DESCRIPTION
The SCT2650 is 5A buck converter with wide input
voltage, ranging from 4.5V to 60V, which integrates an
80mΩ high-side MOSFET. The SCT2650, adopting the
peak current mode control, supports the Pulse Skipping
Modulation (PSM) which assists the converter on
achieving high efficiency at light load or standby
condition.
Wide Input Range: 4.5V-60V
Up to 5A Continuous Output Current
0.8V ±1% Feedback Reference Voltage
Integrated 80mΩ High-Side MOSFET
Low Quiescent Current: 175uA
Pulse Skipping Mode (PSM) in light load
130ns Minimum On-time
4ms Internal Soft-start Time
Adjustable Frequency 100KHz to 1.2MHz
External Clock Synchronization
Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
Low Dropout Mode Operation
Derivable Inverting Voltage Regulator
Over-voltage and Over-Temperature Protection
Available in an ESOP-8 Package
APPLICATIONS
12-V, 24-V, 48-V Industry and Telecom Power
System
Industrial Automation and Motor Control
Vehicle Accessories
The SCT2650 features programmable switching
frequency from 100kHz to 1.2MHz with an external
resistor, which provides the flexibility to optimize either
efficiency or external component size. The converter
supports external clock synchronization with a
frequency band from 100kHz to 1.2MHz. The SCT2650
allows power conversion from high input voltage to low
output voltage with a minimum 130ns on-time of highside MOSFET.
The device offers fixed 4ms soft start to prevent inrush
current during the startup of output voltage ramping.
The SCT2650 features external loop compensation to
provide the flexibility to optimize either loop stability or
loop response.
The SCT2650 provides cycle-by-cycle current limit,
thermal shutdown protection, output over-voltage
protection and input voltage under-voltage protection.
The device is available in an 8-pin ESOP-8 package.
TYPICAL APPLICATION
100
90
BOOT
VIN
VIN
D1
FB
C5
R3
C4
80
VOUT
R1
COMP
RT/CLK
R4
SW
GND
EN
C1 C2
L1
R2
Efficiency(%)
C3
70
60
50
40
30
Vout=3.3V
20
Vout=5V
10
0
0.001
Vout=12V
0.01
0.1
1
Output Current(A)
Efficiency, Vin=24V, Fsw=500KHz
4.5V-60V, Asyncronous Buck Converter
For more information www.silicontent.com
© 2019 Silicon Content Technology Co., Ltd. All Rights Reserved
Product Folder Links: SCT2650
1
SCT2650
REVISION HISTORY
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Revision 1.0: Production
Revision 1.1: Update IEN_H in EC and system UVLO calculation formula by EN pin resistor divider
DEVICE ORDER INFORMATION
PART NUMBER
PACKAGE MARKING
PACKAGE DISCRIPTION

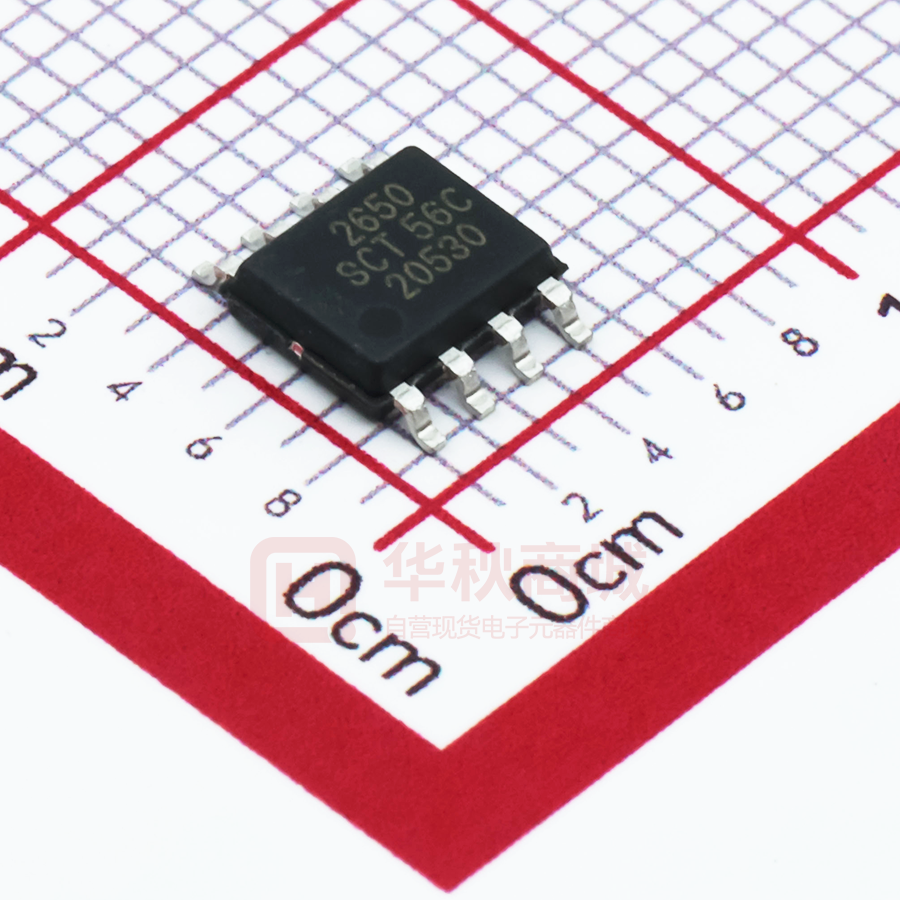

SCT2650STE
2650
ESOP-8
1)
For Tape & Reel, Add Suffix R (e.g. SCT2650STER)
ABSOLUTE MAXIMUM RATINGS
PIN CONFIGURATION
Over operating free-air temperature unless otherwise noted(1)
DESCRIPTION
MIN
MAX
UNIT
VIN, EN
-0.3
65
V
BOOT
-0.3
71
V
SW
-1
65
V
BOOT-SW
-0.3
6
V
COMP, FB, RT/CLK
-0.3
6
V
Operating junction temperature TJ(2)
-40
150
°C
Storage temperature TSTG
-65
150
°C
(1)
(2)
BOOT
1
VIN
2
EN
3
RT/CLK
4
Thermal
Pad
8
SW
7
GND
6
COMP
5
FB
Figure 1. 8-Lead Plastic ESOP
Stresses beyond those listed under Absolute Maximum Rating may cause device permanent damage. The device is not guaranteed to
function outside of its Recommended Operation Conditions.
The IC includes over temperature protection to protect the device during overload conditions. Junction temperature will exceed 150°C
when over temperature protection is active. Continuous operation above the specified maximum operating junction temperature will
reduce lifetime.
PIN FUNCTIONS
NAME
NO.
BOOT
1
VIN
2
EN
3
RT/CLK
4
FB
5
COMP
6
2
PIN FUNCTION
Power supply bias for high-side power MOSFET gate driver. Connect a 0.1uF capacitor
from BOOT pin to SW pin. Bootstrap capacitor is charged when SW voltage is low.
Input supply voltage. Connect a local bypass capacitor from VIN pin to GND pin. Path
from VIN pin to high frequency bypass capacitor and GND must be as short as possible.
Enable pin to the regulator with internal pull-up current source. Pull below 1.05V to
disable the converter. Float or connect to VIN to enable the converter. The tap of resistor
divider from VIN to GND connecting EN pin can adjust the input voltage lockout
threshold.
Set the internal oscillator clock frequency or synchronize to an external clock. Connect
a resistor from this pin to ground to set switching frequency. An external clock can be
input directly to the RT/CLK pin. The internal oscillator synchronizes to the external
clock frequency with PLL. If detected clocking edges stops, the operation mode
automatically returns to resistor programmed frequency.
Inverting input of the trans-conductance error amplifier. The tap of external feedback
resistor divider from the output to GND sets the output voltage. The device regulates
FB voltage to the internal reference value of 0.8V typical.
Error amplifier output. Connect to frequency loop compensation network.
For more information www.silicontent.com
© 2019 Silicon Content Technology Co., Ltd. All Rights Reserved
Product Folder Links: SCT2650
SCT2650
GND
7
Ground
SW
Thermal
Pad
8
Regulator switching output. Connect SW to an external power inductor
Heat dissipation path of die. Electrically connection to GND pin. Must be connected to
ground plane on PCB for proper operation and optimized thermal performance.
9
RECOMMENDED OPERATING CONDITIONS
Over operating free-air temperature range unless otherwise noted
PARAMETER
DEFINITION
VIN
VOUT
TJ
Input voltage range
Output voltage range
Operating junction temperature
MIN
MAX
UNIT
4.5
0.8
-40
60
57
150
V
V
°C
MIN
MAX
UNIT
-1
+1
kV
-0.5
+0.5
kV
ESD RATINGS
PARAMETER
DEFINITION
Human Body Model(HBM), per ANSI-JEDEC-JS-001-2014
specification, all pins(1)
Charged Device Model(CDM), per ANSI-JEDEC-JS-0022014 specification, all pins(2)
VESD
(1) JEDEC document JEP155 states that 500V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250V CDM allows safe manufacturing with a standard ESD control process.
THERMAL INFORMATION
PARAMETER
THERMAL METRIC
ESOP-8L
𝜃𝑗𝑎
Junction-to-ambient thermal resistance (standard board)
42
𝜓𝑗𝑡
Junction-to-top characterization parameter
5.9
UNIT
°C/W
ELECTRICAL CHARACTERISTICS
VIN=24V, TJ=-40°C~125°C, typical value is tested under 25°C.
SYMBOL
PARAMETER
TEST CONDITION
Power Supply
VIN
Operating input voltage
ISHDN
Input UVLO Threshold
Hysteresis
Shutdown current from VIN pin
IQ
Quiescent current from VIN pin
VIN_UVLO
MIN
TYP
4.5
VIN rising
4.2
320
2
EN=0, no load
EN floating, no load, nonswitching, BOOT-SW=5V
Power MOSFETs
RDSON_H
High-side MOSFET on-resistance
VBOOT-VSW=5V
Reference and Control Loop
VREF
Reference voltage of FB
0.792
MAX
UNIT
60
V
4.4
V
mV
μA
5
175
μA
80
mΩ
0.8
0.808
V
GEA
Error amplifier trans-conductance
-2μA
