SSL24

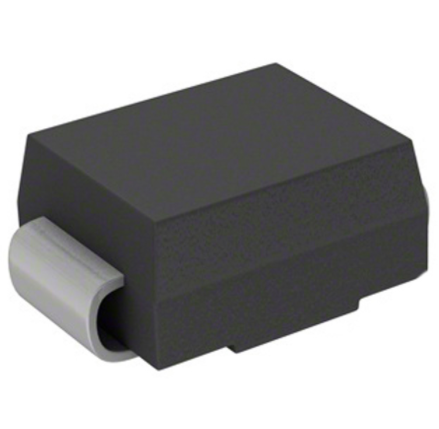

山东晶导微电子股份有限公司 SSL24 Jingdao Microelectronics co.LTD Surface Mount Schottky Barrier Rectifier Reverse Voltage - 40 V Forward Current - 2.0A PINNING PIN Features • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA • Case: SMA • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.055g / 0.002oz DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Marking Code: SSL24 Simplified outline SMA and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Parameter Symbols SSL24 Units Maximum Repetitive Peak Reverse Voltage V RRM 40 V Maximum RMS voltage V RMS 28 V Maximum DC Blocking Voltage V DC 40 V Maximum Average Forward Rectified Current at T c = 100 °C I F(AV) 2 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 50 A Maximum Instantaneous Forward Voltage at 2 A VF 0.45 V IR 0.5 100 mA Cj 290 pF RθJA 70 °C/W Operating Junction Temperature Range Tj -55 ~ +150 °C Storage Temperature Range T stg -55 ~ +150 °C Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =100 °C Typical Junction Capacitance （1） Typical Thermal Resistance （2） （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.12 SMA-S-SSL24-2A40V Page 1 of 3 山东晶导微电子股份有限公司 SSL24 Jingdao Microelectronics co.LTD Fig.2 Typical Reverse Characteristics Average Forward Current (A) 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve 10 4 T J =75°C 10 2 10 1 T J =25°C 10 0 0 Case Temperature (°C) 80 500 Junction Capacitance ( pF) 10 1 0.1 0.5 0 1.0 1.5 200 100 50 20 10 2.0 0.1 40 30 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 100 Transient Thermal Impedance（ °C /W） 50 1 1 10 100 Reverse Voltage (V) 60 10 100 T J =25°C 20 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 60 Fig.4 Typical Junction Capacitance Instaneous Forward Voltage (V) Fig.6- Typical Transient Thermal Impedance 100 Number of Cycles at 60Hz 2017.12 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Instaneous Forward Current (A) T J =100°C 10 3 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 SSL24 Jingdao Microelectronics co.LTD PACKAGE OUTLINE Plastic surface mounted package; 2 leads A A SMA c a VM e A HE g e E A D E HE c e g max 2.2 4.5 2.7 5.2 0.31 1.6 1.5 min 1.9 4.0 2.3 4.7 0.15 1.3 0.9 max 87 181 106 205 12 63 59 min 75 157 91 185 6 51 35 UNIT mm mil g e A D The recommended mounting pad size a 0.3 12 Marking Type number 2.4 (94) 1.8 (71) SSL24 Marking code SSL24 1.8 (71) 1.8 (71) mm Unit ： (mil) 2017.12 712146B0 Page 3 of 3
