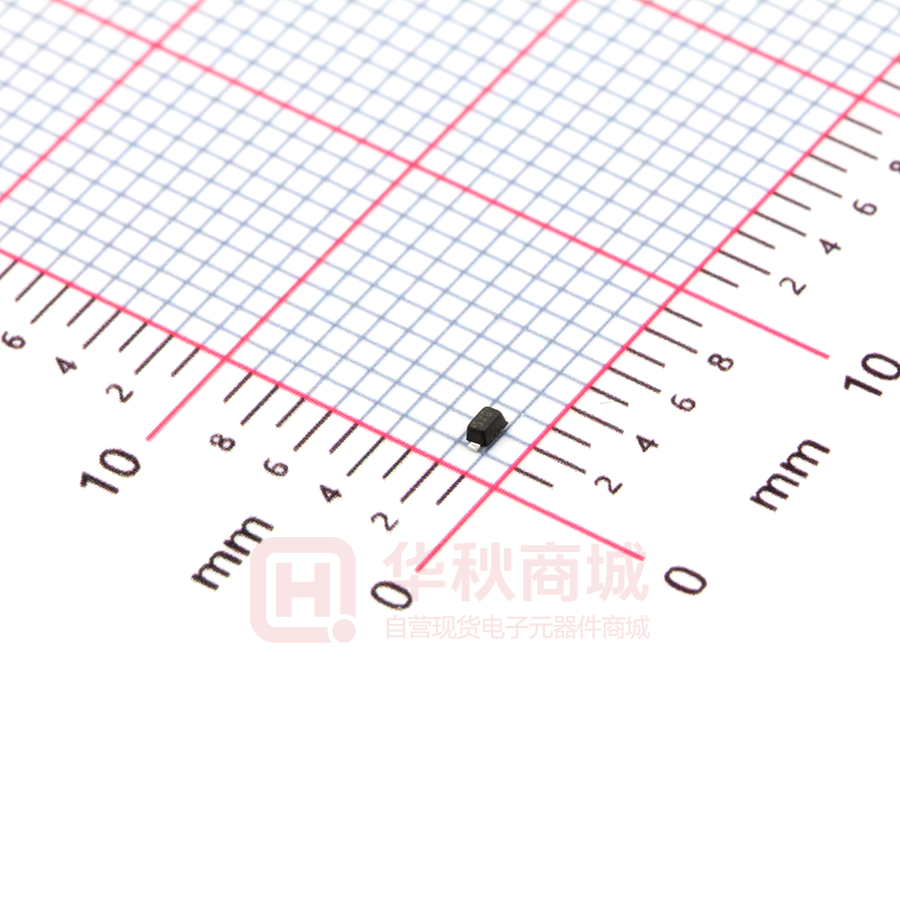

BSD5C051V

BSD5C051V Transient Voltage Suppressors ROHS Features Small Body Outline Dimensions: 0.063″ x 0.032″ (1.6x0.8 mm) Low Body Height: 0.024″ (0.6 mm) Nom 100 Watts peak pulse power (tp = 8/20μs) Protects one I/O or power line Replacement for MLV(0603) Low clamping voltage Working voltage: 5V Low leakage current Solid-state silicon-avalanche technology IEC COMPATIBILITY (EN61000-4) IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 5.5A (8/20μs) Mechanical Characteristics Applications JEDEC SOD-523 package Cellular Handsets & Accessories Molding compound flammability rating: Personal Digital Assistants (PDAs) UL 94V-0 Notebooks & Handhelds Marking : Marking Code Portable Instrumentation Packaging : Tape and Reel per EIA 481 Digital Cameras RoHS/WEEE Compliant MP3 players Schematic & PIN Configuration SOD-523 (Top View) 1/4 BSD5C051V Transient Voltage Suppressors ROHS Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp = 8/20μs ) PPP 100 Watts Maximum Peak Pulse Current ( tp = 8/20μs ) IPP 5.5 A Operating Temperature TJ -55 to + 125 °C TSTG -55 to +150 °C Storage Temperature Electrical Parameters (T=25℃) Symbol I Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR I PP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM VC VBR V RWM IT IR Breakdown Voltage @ IT IT Test Current IF Forward Current VF Forward Voltage @ IF IR IT VRWM VBR VC I PP Electrical Characteristics BSD5C051V Parameter Reverse Stand-Off Voltage Symbol Conditions Minimum Typical VRWM Maximum Units 5.0 V VBR IT=1mA Reverse Leakage Current IR VRWM=5V, T=25°C 1 μA Clamping Voltage VC IPP=5.5A, tp=8/20μs 15.5 V Junction Capacitance Cj VR = 0V, f = 1MHz Reverse Breakdown Voltage 6.0 V 10 pF 2/4 V BSD5C051V Transient Voltage Suppressors ROHS Typical Characteristics Figure 2: Power Derating Curve Time 10 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power Vs Pulse 1 100W 8/20µs Waveform 0.1 0.01 0.1 1 10 td – Pulse Duration - µs 100 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 150 Ambient Temperature - TA (℃) Figure 4: Normalized Junction Capacitance vs. Reverse Voltage 1.1 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1.0 F=1MHz 0.9 Cj(VR)/Cj(VR=0) Clamping Voltage -Vc(V) 100 1,000 Figure 3: Clamping Voltage vs. Peak Pulse Current 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 1 2 3 4 0 5 0 Peak Pulse Current -Ipp(A) 1 2 3 4 5 Reverse Voltage -VR(V) Figure 6: ESD Clamping( 8kV Contact per IEC 61000-4-2) Tek Run: 2.50GS/s Sample Figure 5: 8/20µs Pulse Waveform tr=8µs 110 Waveform Paramters tr=8µs td=20µs 100 90 Percent Ipp 110 80 70 60 50 40 Half Value Ipp/2 30 20 td=20µs 10 0 0 5 10 15 20 25 30 CH1 10.0 VΩ M 20.0ns Ch1 7.0V Time (µs) 3/4 BSD5C051V Transient Voltage Suppressors ROHS OutlineDrawing–SOD-523 PACKAGE OUTLINE D -X-Y2 1 SOD-523 E DIMENSIONS b 2x 0.08 (0.0032) X SYMBOL Y A b C D E HE L A C L HE 1.40 MILLIMETER MIN MAX 0.50 0.70 0.25 0.35 0.07 0.20 1.10 1.30 0.70 0.90 1.50 1.70 0.15 0.25 INCHES MIN MAX 0.020 0.028 0.010 0.014 0.0028 0.0079 0.043 0.051 0.028 0.035 0.059 0.067 0.006 0.010 Notes 1. Controlling Dimensions in Millimeters. 2. Dimensions are exclusive of mold flash and metal burrs. 0.40 0.40 DIMENSIONS: MILLIMETERS Marking Codes 5XB Package Information Qty：5k/Reel 4/4
