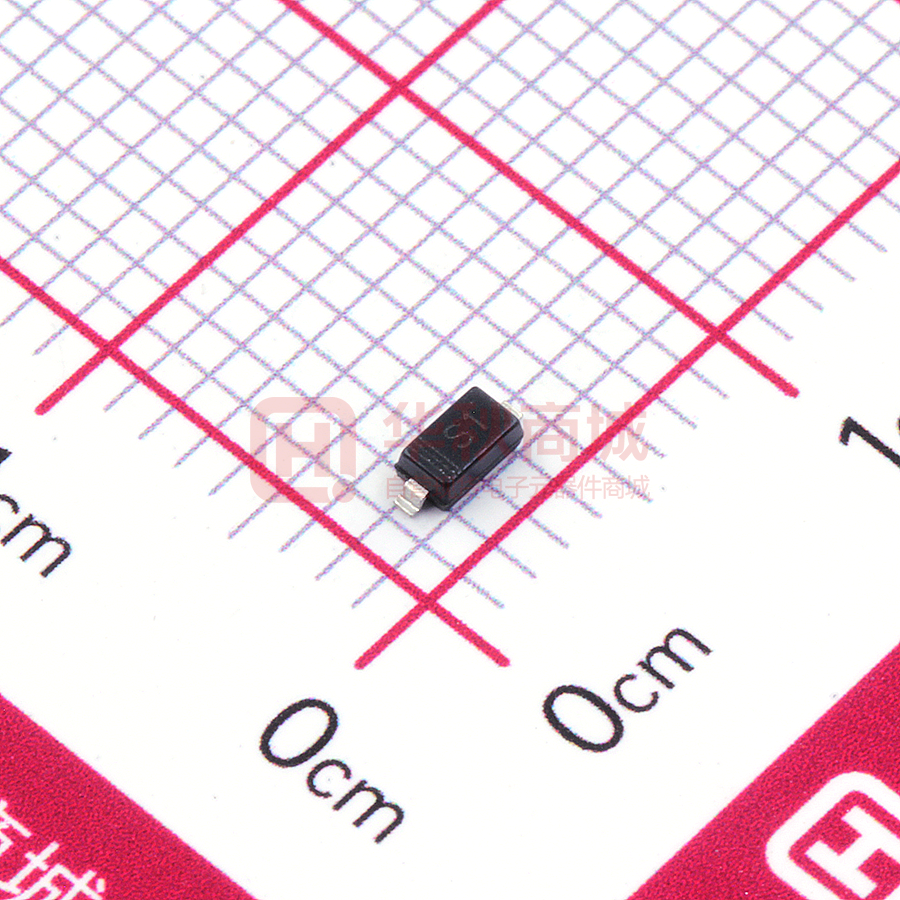

BAT54W

BAT54W SCHOTTKY BARRIER DIODE Features PINNING • Low forward voltage DESCRIPTION PIN Applications 1 Cathode 2 Anode 1 • Ultra high-speed switching • Voltage clamping • Protection circuits S1 2 Top View Marking Code: "S1" Simplified outline SOD-123 and symbol Absolute Maximum Ratings (Ta = 25 C) O Parameter Symbol Value Unit Reverse Voltage VR 30 V Forward Current IF 200 mA Repetitive Peak Forward Current IFRM 300 mA Peak Forward Surge Current (tp = 10 ms) IFSM 600 mA Power Dissipation PD 230 mW RthJA 500 K/W Junction Temperature TJ 125 O Storage Temperature Range Tstg - 65 to + 150 O Symbol Max. Thermal Resistance from Junction Ambient C C Characteristics at Ta = 25 C O Parameter Unit Forward Voltage at IF = 0.1 mA at IF = 1 mA at IF = 10 mA at IF = 30 mA at IF = 100 mA VF Reverse Current at VR = 25 V IR 2 µA Total Capacitance at VR = 1 V, f = 1 MHz CT 10 pF Reverse Recovery Time at IF = 10 mA, VR = 6 V, IR = 10 mA, RL = 100 Ω trr 6 ns Page 1 of 3 240 320 400 500 800 mV 6/2/2011 Page 2 of 3 6/2/2011 PACKAGE OUTLINE Plastic surface mounted package; 2 leads Page 3 of 3 SOD-123 6/2/2011
