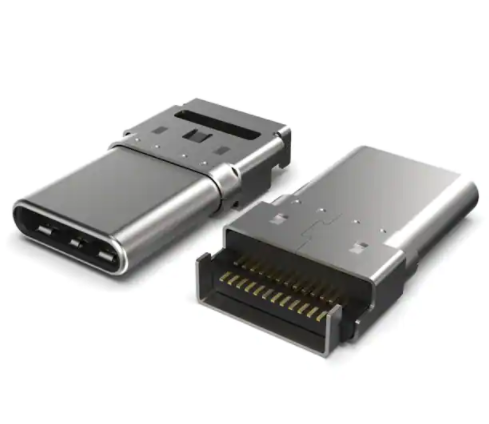

USB4155-03-C

15.50±0.30 H Specifications Material Insulator: LCP, UL 94V-0, Black Contact: Copper Alloy Shell: Stainless Steel Latch: Stainless Steel EMI Spring: Stainless Steel 8.00 G B1 0.84+0.25 -0.04 B12 A 12.50±0.20 1.00 7.40±0.20 8.80 2.50 8.25±0.03 0.81+0.15 -0.10 0.15 0.90 1.30 0.18 Min. D 1.30±0.05 2.90 A1 Plating Contact Contact Area: 3u" Au over Nickel Solder Tails: Matte Tin over Nickel Shell: Nickel Latch& EMI Spring: Cleaning 2.40±0.03 A12 E 6.83±0.05 2x 0.35 A 0.80±0.05 F C Electrical Current Rating: 5.00A collectively for VBUS pins 6.25A collectively for GND pins 1.25A for B5 pin 0.25A per pin for all other pins Voltage Rating: 20V DC Contact Resistance: 40mΩ max initial. 50mΩ max after test Dielectric Withstanding Voltage: 100V AC Insulation Resistance 100MΩ min Mechanical & Environmental Operating Temperature: -30°C to +85°C Mating Force: 5 to 20 N. Unmated Force: 6 to 20 N after test Durability: 10,000 cycles 0.10 Ordering Grid 2.64±0.10 USB4155 4.64±0.05 Section A-A B 03 Contact Plating 03 = 3u" Gold C Request Samples and Quotation Packing Options C = Tape & Reel with Cap (1000 per reel) A 0.50±0.05 0.20 Part Number Product Description USB4155 USB3.2 Gen2 Type C Plug, Horizontal, SMT Drawing Date 12th April 2021 5.50±0.05 By Detail 1 2 3 4 Revision Date 5 CC Drawing Release A1 27/05/21 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.25 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 1/4 H 7.40 5.50 1.075 0.25 2x 1.00 2x 0.50 A12 0.825 0.50 0.30 A1 5.05 4.60 4.27 0.5 ref. F 0.825 1.075 1.075 USB4155 (Plug) USB4115 (Receptacle) 1.70 2.50 B12 1.00 PCB Edge B1 0.20 2x 1.80 2x 1.30 2.30 G PCB Panel 6.55 min. PCB Plug and Receptacle Mating View E Recommended PCB Layout Thickness 0.8 to 1.0 mm Tolerance: ±0.05mm Pin C B A Component Outline Signal Description Pin Ground return Positive half of first SuperSpeed TX differential pair A1 GND A2 SSTXp1 A3 SSTXn1 A4 VBUS A5 CC1 Negative half of first SuperSpeed TX differential pair Bus Power Configuration Channel 9.85 Solder Area Signal Description B12 GND B11 SSRXp1 Ground return Positive half of first SuperSpeed RX differential pair B10 SSRXn1 B9 VBUS Negative half of first SuperSpeed RX differential pair B8 SBU2 B7 Dn2 Positive half of the USB 2.0 differential pair - Position 2 Dp2 Negative half of the USB 2.0 differential pair - Position 2 A6 Dp1 Positive half of the USB 2.0 differential pair - Position 1 A7 Dn1 Negative half of the USB 2.0 differential pair - Position 1 B6 A8 SBU1 Sideband Use (SBU) B5 CC2 Configuration Channel A9 VBUS B4 VBUS A10 SSRXn2 Bus Power Negative half of second SuperSpeed RX differential pair Bus Power Negative half of second SuperSpeed TX differential pair A11 SSRXp2 Positive half of second SuperSpeed RX differential pair A12 GND Ground return SHELL 1 GND B3 SSTXn2 B2 SSTXp2 Positive half of second SuperSpeed TX differential pair B1 GND Ground return SHELL 2 16.35 Bus Power Sideband Use (SBU) 2.40 D Cap Information Part Number Product Description USB4155 USB3.2 Gen2 Type C Plug, Horizontal, SMT Drawing Date 12th April 2021 By GND 3 Detail 4 Revision Date 5 CC Drawing Release A1 27/05/21 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.25 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 2/4 H 1.8 max. Weight 0.05 min. PCB G 5g min. force apply on the product Weight Tray PCB Tray F Proposal 1: Recommended Jig(Tray, Weight) be used in IR Reflow Process E 1.80 max. Weight D 0.05 min. PCB C Weight 5g min. force apply on the product PCB Tray Tray B Proposal 2: Recommended Jig(Tray, Weight) be used in IR Reflow Process Part Number Product Description USB4155 USB3.2 Gen2 Type C Plug, Horizontal, SMT Drawing Date A 12th April 2021 By Detail 1 2 3 4 Revision Date 5 CC Drawing Release A1 27/05/21 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.25 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 3/4 H Folder Paper Board Unloaded Section (20 Pockets) 1000 PCS Unloaded Section (20 Pockets) Paper Board G Vacuum Bag F Peeling Angle 165°~180° E Reel and Tape Direction of Unreeling Carton Ø330 Reel and Tape 325 D Ø13 W+0.5 Label 35 0 C 0 35 16.00±0.10 4.00 2.00 Ø1.50 Paper Board Pcs / Reel 1000 32.00±0.30 B Product Description USB4155 USB3.2 Gen2 Type C Plug, Horizontal, SMT 12th April 2021 Direction of Unreeling By Detail 1 2 Total Quantity 8,000 pcs Part Number Drawing Date A Reels / Carton 8 3 4 Revision Date 5 CC Drawing Release A1 27/05/21 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.25 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 4/4
