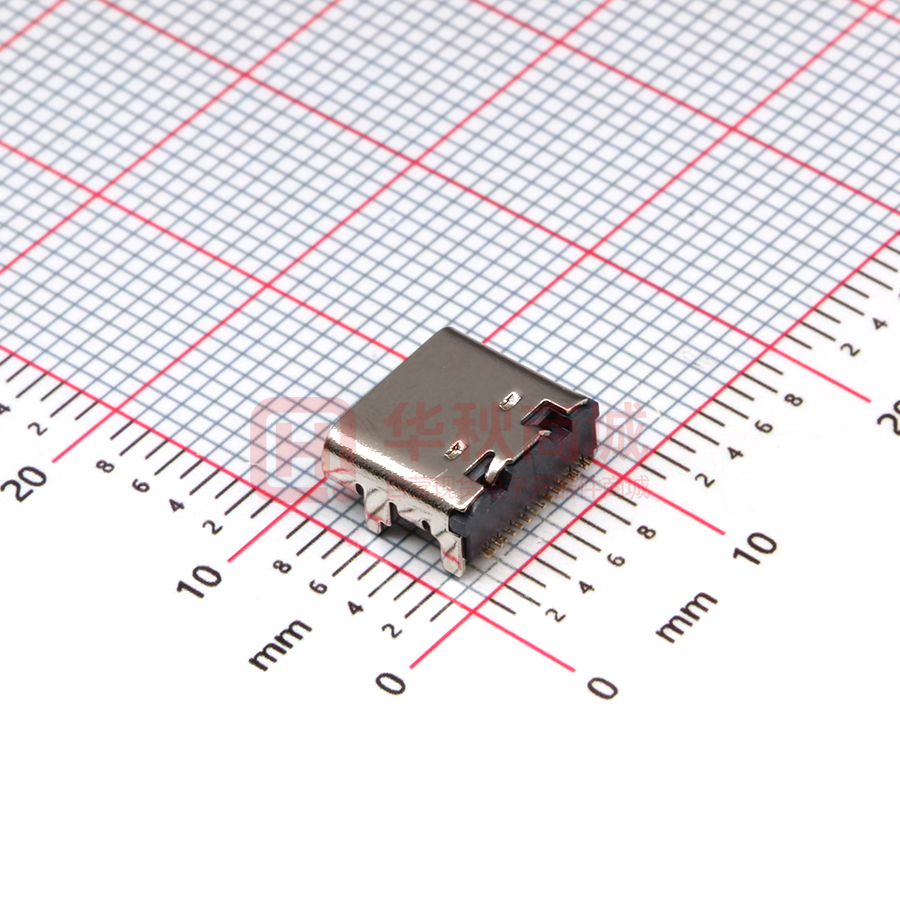

MC-311D

CONNECTORS C ONNECTORS Operation:Push-Pull LTEM NO.:MC-311D Unit:mm (2.0 TYPE-C-CONNECTORS) 表面貼裝 DIP/SMT 側向導入 LATERAL 精密部品 NICETY 可靠 STABILIZE 適合環保 RoHS sofng.com C ONNECTORS CIRCUIT BOARD SIZE (Vertical view) Assignment Material declaration No. NAME Type Description ① HOUSING 1 LCP(glass fiber filled)BK ② CONTACT 10 COPPER ALLOY /Au NI Plated(t=0.12mm) ③ CONTACT 4 COPPER ALLOY /Au NI Plated(t=0.12mm) ④ MD 1 HIGH TEMPERATURE PLASTIC(Black) ⑤ SHIELDING PLATE 1 STAINLESS STEEL(t=0.30mm) ⑥ SHIELD 1 STAINLESS STEEL(t=0.30mm) 本品不屬於危害性廢棄物,須丟棄時可以委託回收商予以回收再生處理。 Products do not belong to hazardous waste,When waste can recycling processing 運送時本產品不要直接與水、酸鹼性化學物質接觸,或放置於含有以上氣體環境中,並且需要注意會有滑落、側翻的危險 發生；運輸過程中不能有碰撞或者擠壓,須保證溫度與濕度適中[常溫 25℃,濕度在 50℃以內],不可導致材料變形或氧化。 PIN ASSIGNMENTS PIN Signal NAME Description PIN Signal NAME Description A1 GND Ground return B12 GND A4 V BUS Bus Power B9 V BUS Bus Power A5 CC1 Configuration Channel B8 SBU2 Sideband Use(SBU) A6 Dp1 Positive half of the USB 2.0 differential pair-Position 1 B7 Dn2 Negative half of the USB 2.0 differential pair-Position 2 A7 Dn1 Negative half of the USB 2.0 differential pair-Position 1 B6 Dp2 Positive half of the USB 2.0 differential pair-Position 2 A8 SBU1 Sideband Use(SBU) B5 CC2 Configuration Channel A9 V BUS Bus Power B4 V BUS Bus Power A12 GND Ground return B1 GND Ground return Technical parameter ╲ LEVEL ╲ PROJECT Electrical Properties Initial Contact Resistance Contact Resistance Withstand Voltage Durable Performance A[better product] B[average product] C[low product] 30mΩ max. 30mΩ max. no data! 100mΩ min.100V DC 300V AC for 1min Skey/PD：50mΩ min.100V DC 250 V AC for 1min There No Load 6,000 Cycles 5,000 Cycles no data! Rated Load 5,000 Cycles 50mΩ max. 4,000 Cycles 30mΩ max. no data! Insertion Force 4.0Kgf MAX (Springback: 注記 NOTICE 1.碩方電子公司擁有最終解釋權；The company reserves the right of final interpretation； 2.文件禁止外洩、轉載；Leaked and reproduced prohibited； 3.未經授權修改無效。Modify is invalid. SOFNG )
