ES5A - ES5J
SURFACE MOUNT SUPER FAST RECOVERY DIODES
VOLTAGE RANGE: 50 - 600V
CURRENT: 5.0 A
Features
!
Glass Passivated Die Construction
!
!
Ideally Suited for Automatic Assembly
Low Forward Voltage Drop, High Efficiency
! Low Power Loss
! Super-Fast Recovery Time
! Plastic Case Material has UL Flammability
Classification Rating 94V-O
B

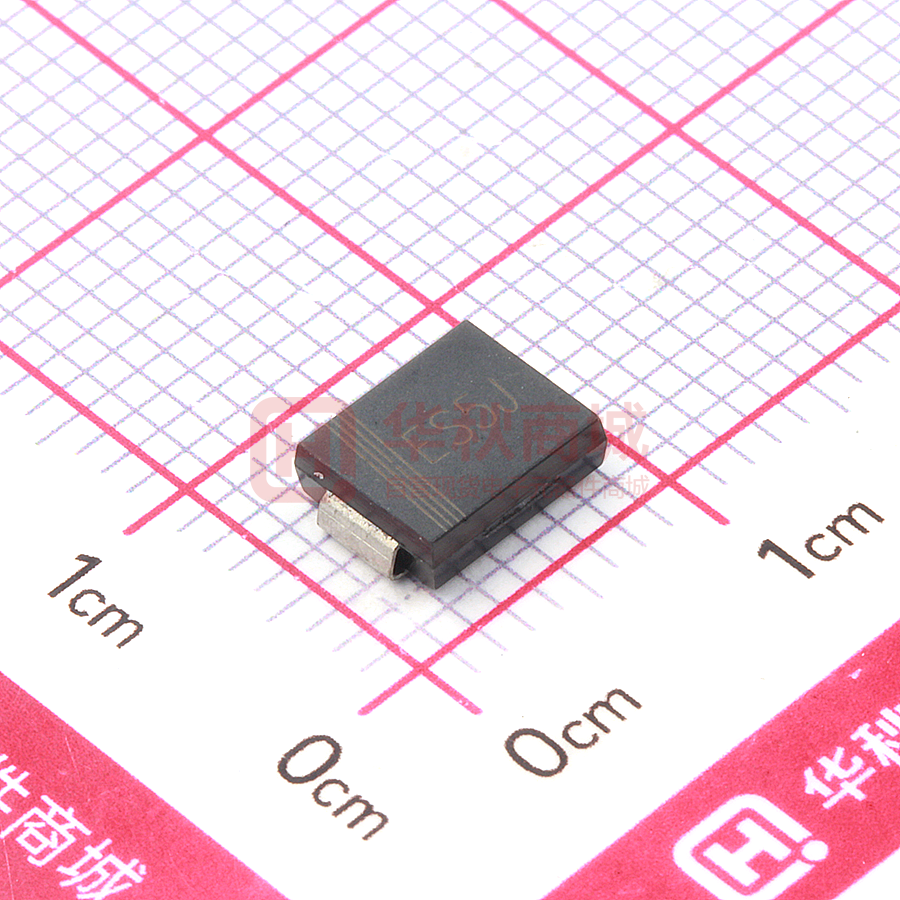

SMC/DO-214AB
Dim
Min
Max
A
5.59
6.22
B
6.60
7.11
C
2.75
3.18
D
0.15
0.31
E
7.75
8.13
G
0.10
0.20
H
0.76
1.52
J
2.00
2.62
Mechanical Data
!
!
A
Case: SMC/DO-214AB, Molded Plastic
Terminals: Solder Plated, Solderable
C
per MIL-STD-750, Method 2026
!
!
!
D
Polarity: Cathode Band or Cathode Notch
J
Marking: Type Number
Weight: 0.21 grams (approx.)
G
E
H
Maximum Ratings and Electrical Characteristics
All Dimensions in mm
TA = 25C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@TL = 75°C
Symbol
ES5 A
ES5 B
ES5 C
ES5 D
ES5 E
ES5 G
ES5 J
Unit
VRRM
VRWM
VR
50
100
150
200
300
400
600
V
VR(RMS)
35
70
105
140
210
280
420
V
IO
5.0
A
150
A
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
IFSM
Forward Voltage
@IF = 5.0A
V FM
@TA = 25°C
@TA = 100°C
IRM
5.0
50
µA
Reverse Recovery Time (Note 1)
trr
35
nS
Typical Junction Capacitance (Note 2)
Cj
180
pF
RJL
40
°C/W
Tj, TSTG
-65 to +150
°C
Peak Reverse Current
At Rated DC Blocking Voltage
Typical Thermal Resistance (Note 3)
Operating and Storage Temperature Range
0.95
1.25
1.7
V
Note: 1. Measured with IF = 0.5A, IR = 1.0A, Irr = 0.25A. See figure 5.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0 V DC.
3. Mounted on P.C. Board with 8.0mm2 land area.
1 of 2
www.sunmate.tw
