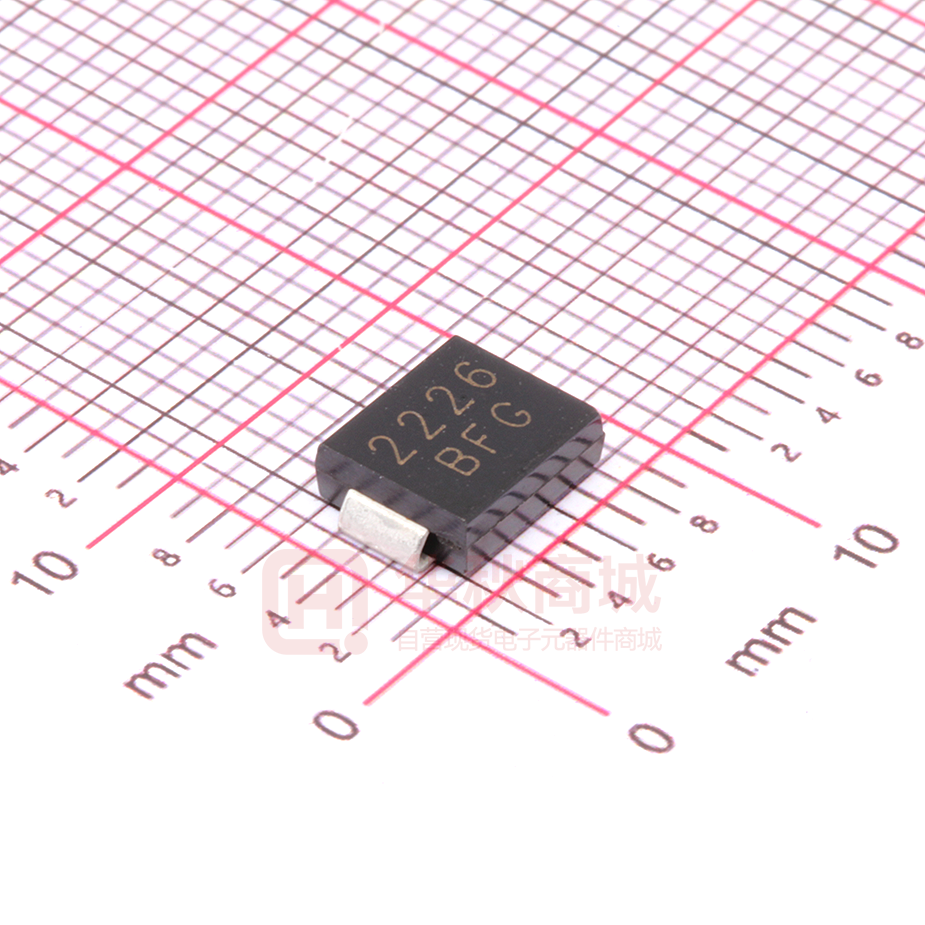

1.5SMC33CA

1.5SMC6.8A(CA) - 1.5SMC440A(CA) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE RANGE: 6.8 - 440 V POWER: 1500Wa t t s Features ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! ! Fast Response Time Plastic Case Material has UL Flammability Classification Rating 94V-O SMC/DO-214AB B Mechanical Data ! ! ! ! A Case :DO-214AB(SMC) Terminals : Solder plated , solderable per MIL-STD-750, method 2026 Marking: Date Code and Marking Code See Page 2 Weight: 0.21 grams (approximate) C D J H G E Dim Min Max A 5.59 6.22 B 6.60 7.11 C 2.75 3.18 D 0.15 0.31 E 7.75 8.13 G 0.10 0.20 H 0.76 1.52 J 2.00 2.62 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol Value Unit PPK 1500 W IFSM 200 A Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25°C) (Note 1) Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Notes 1, 2, & 3) Steady State Power Dissipation @ TL = 75°C PM(AV) 5.0 W Instantaneous Forward Voltage @ IPP = 100A (Notes 1 & 3) VF See Note 5 V Operating Temperature Range Tj -55 to +150 °C TSTG -55 to +175 °C Storage Temperature Range NOTES:1. Non-repetitive current pulse ,per Fig. 3 and derated above TA=25℃ per Fig. 1. 2. Thermal Resistance junction to Lead. 3. 8.3ms single half-wave duty cycle=4 pulses per minutes maximum (uni-directional units only). 1 of 4 www.sunmate.tw Reverse Breakdown Breakdown Voltage Voltage Stand-Off Voltage Min. @IT Max. @ IT TYPE (UNI) 1.5SMC6.8 1.5SMC6.8A 1.5SMC7.5 1.5SMC7.5A 1.5SMC8.2 1.5SMC8.2A 1.5SMC9.1 1.5SMC9.1A 1.5SMC10 1.5SMC10A 1.5SMC11 1.5SMC11A 1.5SMC12 1.5SMC12A 1.5SMC13 1.5SMC13A 1.5SMC15 1.5SMC15A 1.5SMC16 1.5SMC16A 1.5SMC18 1.5SMC18A 1.5SMC20 1.5SMC20A 1.5SMC22 1.5SMC22A 1.5SMC24 1.5SMC24A 1.5SMC27 1.5SMC27A 1.5SMC30 1.5SMC30A 1.5SMC33 1.5SMC33A 1.5SMC36 1.5SMC36A 1.5SMC39 1.5SMC39A 1.5SMC43 1.5SMC43A 1.5SMC47 1.5SMC47A 1.5SMC51 1.5SMC51A 1.5SMC56 1.5SMC56A (BI) 1.5SMC6.8C 1.5SMC6.8CA 1.5SMC7.5C 1.5SMC7.5CA 1.5SMC8.2C 1.5SMC8.2CA 1.5SMC9.1C 1.5SMC9.1CA 1.5SMC10C 1.5SMC10CA 1.5SMC11C 1.5SMC11CA 1.5SMC12C 1.5SMC12CA 1.5SMC13C 1.5SMC13CA 1.5SMC15C 1.5SMC15CA 1.5SMC16C 1.5SMC16CA 1.5SMC18C 1.5SMC18CA 1.5SMC20C 1.5SMC20CA 1.5SMC22C 1.5SMC22CA 1.5SMC24C 1.5SMC24CA 1.5SMC27C 1.5SMC27CA 1.5SMC30C 1.5SMC30CA 1.5SMC33C 1.5SMC33CA 1.5SMC36C 1.5SMC36CA 1.5SMC39C 1.5SMC39CA 1.5SMC43C 1.5SMC43CA 1.5SMC47C 1.5SMC47CA 1.5SMC51C 1.5SMC51CA 1.5SMC56C 1.5SMC56CA VRWM (V) 5.50 5.80 6.05 6.40 6.63 7.02 7.37 7.78 8.10 8.55 8.92 9.40 9.72 10.2 10.5 11.1 12.1 12.8 12.9 13.6 14.5 15.3 16.2 17.1 17.8 18.8 19.4 20.5 21.8 23.1 24.3 25.6 26.8 28.2 29.1 30.8 31.6 33.3 34.8 36.8 38.1 40.2 41.3 43.6 45.4 47.8 VBR MIN(V) 6.12 6.45 6.75 7.13 7.38 7.79 8.19 8.65 9.00 9.50 9.90 10.5 10.8 11.4 11.7 12.4 13.5 14.3 14.4 15.2 16.2 17.1 18.0 19.0 19.8 20.9 21.6 22.8 24.3 25.7 27.0 28.5 29.7 31.4 32.4 34.2 35.1 37.1 38.7 40.9 42.3 44.7 45.9 48.5 50.4 53.2 2 of 4 VBR MAX(V) 7.48 7.14 8.25 7.88 9.02 8.61 10.0 9.55 11.0 10.5 12.1 11.6 13.2 12.6 14.3 13.7 16.5 15.8 17.6 16.8 19.8 18.9 22.0 21.0 24.2 23.1 26.4 25.2 29.7 28.4 33.0 31.5 36.3 34.7 39.6 37.8 42.9 41.0 47.3 45.2 51.7 49.4 56.1 53.6 61.6 58.8 Test Current IT (mA) 10 10 10 10 10 10 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 Maximum Clamping Voltage @IPP VC(V) 10.8 10.5 11.7 11.3 12.5 12.1 13.8 13.4 15.0 14.5 16.2 15.6 17.3 16.7 19.0 18.2 22.0 21.2 23.5 22.5 26.5 25.2 29.1 27.7 31.9 30.6 34.7 33.2 39.1 37.5 43.5 41.4 47.7 45.7 52.0 49.9 56.4 53.9 61.9 59.3 67.8 64.8 73.5 70.1 80.5 77.0 Peak Pulse Current Reverse Leakage @VRWM IPP(A) 140.7 144.8 129.9 134.5 121.6 125.6 110.1 113.4 101.3 104.8 93.8 97.4 87.9 91.0 80.0 83.5 69.1 71.7 64.7 67.6 57.4 60.3 52.2 54.9 47.6 49.7 43.8 45.8 38.9 40.5 34.9 36.7 31.9 33.3 29.2 30.5 27.0 28.2 24.6 25.6 22.4 23.5 20.7 21.7 18.9 19.7 IR(uA) 1000.0 1000.0 500.0 500.0 200.0 200.0 50.0 50.0 10.0 10.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 www.sunmate.tw Reverse Stand-Off Voltage TYPE Breakdown Breakdown Test Voltage Voltage Min. @IT Max. @ IT Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM VC(V) IPP(A) IR(uA) (BI) VRWM (V) 1.5SMC62 1.5SMC62C 50.2 55.8 68.2 1.0 89.0 17.1 5.0 1.5SMC62A 1.5SMC68 1.5SMC62CA 1.5SMC68C 53.0 55.1 58.9 61.2 65.1 74.8 1.0 1.0 85.0 98.0 17.9 13.5 5.0 5.0 1.5SMC68A 1.5SMC75 1.5SMC68CA 1.5SMC75C 58.1 60.7 64.6 67.5 71.4 82.5 1.0 1.0 92.0 108 16.5 14.1 5.0 5.0 1.5SMC75A 1.5SMC75CA 64.1 71.3 78.8 1.0 103 14.8 5.0 1.5SMC82 1.5SMC82C 66.4 73.8 90.2 1.0 118 12.9 5.0 1.5SMC82A 1.5SMC82CA 70.1 77.9 86.1 1.0 113 13.5 5.0 1.5SMC91 1.5SMC91A 1.5SMC100 1.5SMC100A 1.5SMC110 1.5SMC110A 1.5SMC91C 1.5SMC91CA 1.5SMC100C 1.5SMC100CA 1.5SMC110C 1.5SMC110CA 73.7 77.8 81.0 85.5 89.2 94.0 81.9 86.5 90.0 95.0 99.0 105 100 95.5 110 105 121 116 1.0 1.0 1.0 1.0 1.0 1.0 131 125 144 137 158 152 11.6 12.2 10.6 11.1 9.6 10.0 5.0 5.0 5.0 5.0 5.0 5.0 1.5SMC120 1.5SMC120A 1.5SMC130 1.5SMC130A 1.5SMC150 1.5SMC150A 1.5SMC160 1.5SMC160A 1.5SMC170 1.5SMC170A 1.5SMC180 1.5SMC180A 1.5SMC200 1.5SMC200A 1.5SMC220 1.5SMC220A 1.5SMC250 1.5SMC250A 1.5SMC300 1.5SMC300A 1.5SMC350 1.5SMC350A 1.5SMC400 1.5SMC400A 1.5SMC440 1.5SMC440A 1.5SMC120C 1.5SMC120CA 1.5SMC130C 1.5SMC130CA 1.5SMC150C 1.5SMC150CA 1.5SMC160C 1.5SMC160CA 1.5SMC170C 1.5SMC170CA 1.5SMC180C 1.5SMC180CA 1.5SMC200C 1.5SMC200CA 1.5SMC220C 1.5SMC220CA 1.5SMC250C 1.5SMC250CA 1.5SMC300C 1.5SMC300CA 1.5SMC350C 1.5SMC350CA 1.5SMC400C 1.5SMC400CA 1.5SMC440C 1.5SMC440CA 97.2 102 105 111 121 128 130 136 138 145 146 154 162 171 175 185 202 214 243 256 284 300 324 342 356 376 108 114 117 124 135 143 144 152 153 162 162 171 180 190 198 209 225 237 270 285 315 333 360 380 396 418 132 126 143 137 165 158 176 168 187 179 198 189 220 210 242 231 275 263 330 315 385 368 440 420 484 462 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 173 165 187 179 215 207 230 219 244 234 258 246 287 274 344 328 360 344 430 414 504 482 574 548 631 600 8.7 9.2 8.1 8.5 7.1 7.3 6.6 6.9 6.2 6.5 5.9 6.2 5.3 5.5 4.4 4.6 4.2 4.4 3.5 3.7 3.0 3.2 2.6 2.8 2.4 2.5 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 (UNI) VBR MIN(V) 3 of 4 VBR MAX(V) IT (mA) www.sunmate.tw Ratings and Characteristic Curves TA=25°C unless otherwise noted 4 of 4 www.sunmate.tw
