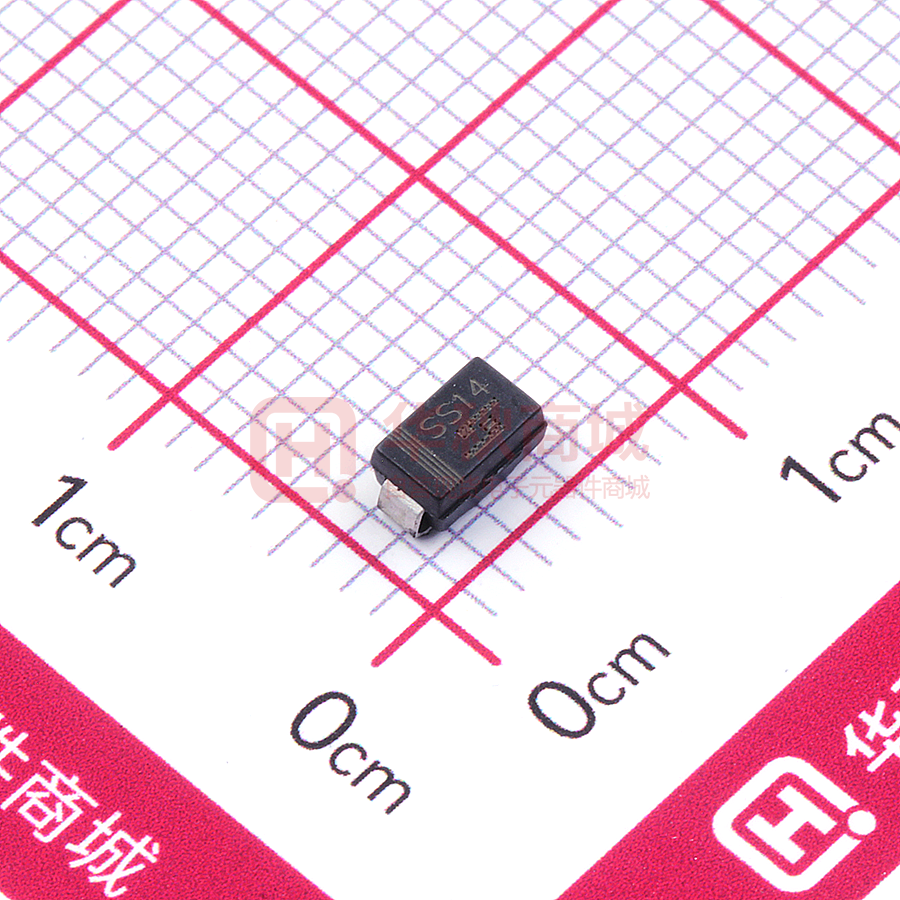

SS14

SS12 - SS110 SURFACE MOUNT SCHOTTKY BARRIER DIODES VOLTAGE RANGE: 20 - 100V CURRENT: 1.0 A Features ! Schottky Barrier Chip ! ! ! Ideally Suited for Automatic Assembly Low Power Loss, High Efficiency For Use in Low Voltage Application ! ! Guard Ring Die Construction Plastic Case Material has UL Flammability Classification Rating 94V-O B SMA(DO-214AC)
Mechanical












Data






































































Dim A ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx.) C D J G E H Maximum Ratings and Electrical Characteristics Min Max A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J 2.01 2.62 All Dimensions in mm TA = 25C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range Symbol SS12 SS13 SS14 SS15 VRRM VRMS 20 14 20 30 21 30 40 28 40 50 35 50 VDC SS16 SS18 SS110 60 42 60 80 56 80 100 70 100 Unit V V V I(AV) 1.0 A IFSM 40.0 A VF IR 0.45 0.55 0.85 0.70 0.5 6.0 5.0 CJ 110 90 TJ, TSTG -65 to +125 88.0 -65 to +150 -65 to +150 V mA pF °C/W °C °C Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas 1 of 2 www.sunmate.tw FIG. 1- FORWARD CURRENT DERATING CURVE FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 1.0 0.8 Single Phase Half Wave 60Hz Resistive or inductive Load 0.6 0.4 SS12-SS14 SS15-SS110 0.2 0 0 25 50 75 40 £PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CURVES SS12 THRU SS110 100 125 150 32 24 16 8 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 100 NUMBER OF CYCLES AT 60 Hz FIG. 4-TYPICAL REVERSE CHARACTERISTICS FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 50 1,000 INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES TJ=25 C INSTANTANEOUS FORWARD CURRENT,AMPERES 10.0 1 SS12-SS14 SS15-SS16 SS18-SS110 0.1 100 TJ=100 C 10 TJ=75 C 1 0.1 TJ=25 C 0.01 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 1.6 INSTANTANEOUS FORWARD VOLEAGE, VOLTS FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE TRANSIENT THERMAL IMPEDANCE, C/W FIG. 5-TYPICAL JUNCTION CAPACITANCE 400 JUNCTION CAPACITANCE, pF 200 TJ=25 C 20 SS12-SS14 SS15-SS110 100 10 1 0.1 0.01 0.1 1 10 100 2 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS t,PULSE DURATION,sec. 2 of 2 www.sunmate.tw
