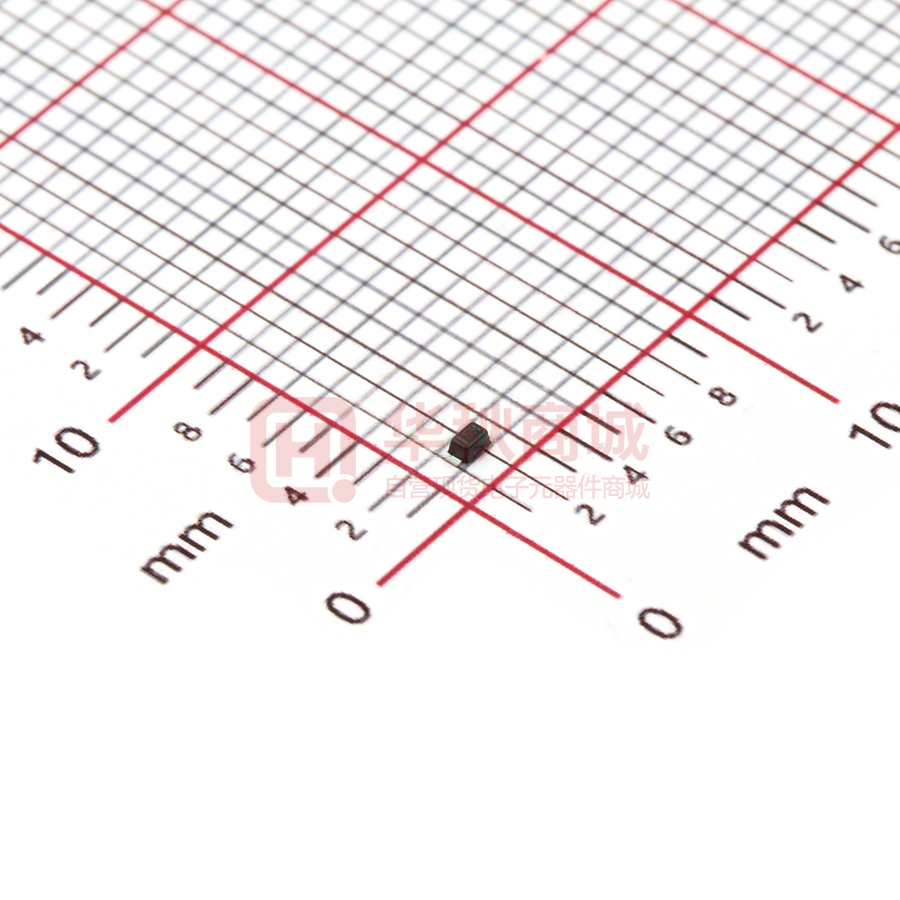

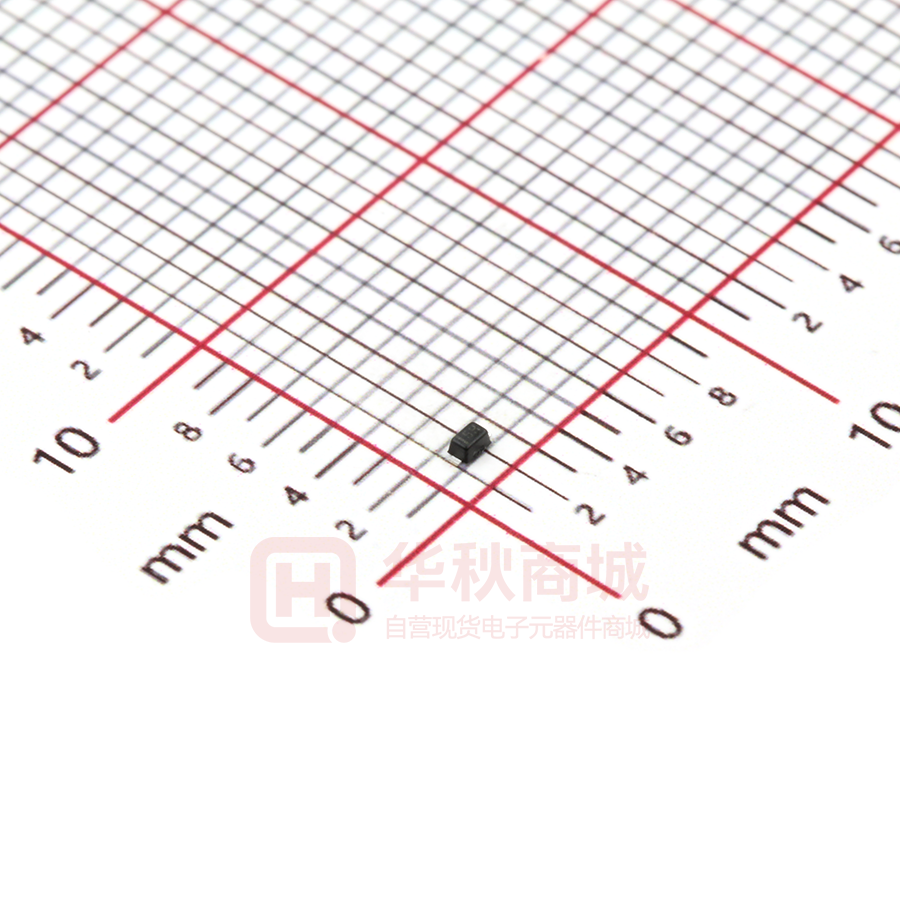

PESD5V0S1UB-N

PESD5V0S1UB-N ESD Protection Diode Array »Features ■ 250Watts peak pulse power (tp =8/20μs) ■ Unidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kVair ■ IEC 61000-4-4 (EFT) 40A(5/50ns) ■ IEC 61000-4-5 (Lightning) 15A(8/20μs) »Applications »Mechanical Data ■ Microprocessor based equipment ■ SOD523 package ■ Personal Digital Assistants (PDA’s) ■ Molding compound flammability rating: UL 94V-0 ■ Notebooks, Desktops, and Servers ■ Packaging: Tape and Reel ■ Portable Instrumentation ■ RoHS/WEEE Compliant ■ Pagers Peripherals »Schematic & PIN Configuration SOD-523 Revision 2018 www.born-tw.com 1/4 PESD5V0S1UB-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 250 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 15 A VESD 30 30 kV Lead SolderingTemperature TL 260(10seconds) ℃ JunctionTemperature TJ -55 to + 150 ℃ StorageTemperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2(Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-OffVoltage Reverse BreakdownVoltage Conditions Min Typical VRWM IT=1mA VBR Max Units 5.0 V 6.0 V Reverse LeakageCurrent IR VRWM=5.0V,T=25℃ Clamping Voltage VC IPP=15A,tp=8/20μs 12 Junction Capacitance Cj VR = 0V, f =1MHz 80 0.5 uA 18 V pF »Electrical Parameters (TA = 25°C unless otherwisenoted) Symbol Parameter I PP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ I PP V RW M IR V BR IT I IF Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RW M VC VBR VRWM IR VF IT Breakdown Voltage @ IT V Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD5V0S1UB-N »Typical Characteristics Figure 1: Peak Pulse Power vs. Pulse Time Figure 2: Power Derating Curve 110 100 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW ) 10 270w 8/20µs waveform 1 0.1 0.01 0.1 1 10 td – Pulse Duration - µs 100 Ipp 80 Percent 50 40 30 20 10 0 0 25 50 75 100 125 Ambient Temperature - TA (℃) 150 40 Clamping Voltage–VC (V) 90 e-1 50 40 td=Ipp/2 20 60 45 Waveform Paramters tr=8µs td=20µs 100 30 70 Figure 4: Clamping Voltage vs.Ipp 110 60 80 1,000 Figure3: Pulse Waveform 70 90 Test Waveform Paramters tr=8µs td=20µs 35 30 25 20 15 10 5 10 0 0 5 Revision 2018 10 15 Time (µs) 20 25 30 0 2 4 6 8 10 12 14 16 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 PESD5V0S1UB-N »Outline Drawing – SOD523 D -X-YE 1 DIMENSIONS 2 SYMBOL b 2x 0.08 (0.0032) X A b C D E HE L Y A C HE L MILLIMETER MIN 0.50 0.25 0.07 1.10 0.70 1.50 0.15 MAX 0.70 0.35 0.20 1.30 0.90 1.70 0.25 INCHES MIN 0.020 0.010 0.0028 0.043 0.028 0.059 0.006 MAX 0.028 0.014 0.0079 0.051 0.035 0.067 0.010 »Marking 1 5H 2 »Ordering information Order code PESD5V0S1UB-N Revision 2018 Package Base qty Delivery mode SOD523 5000 Tape and reel www.born-tw.com 4/4
