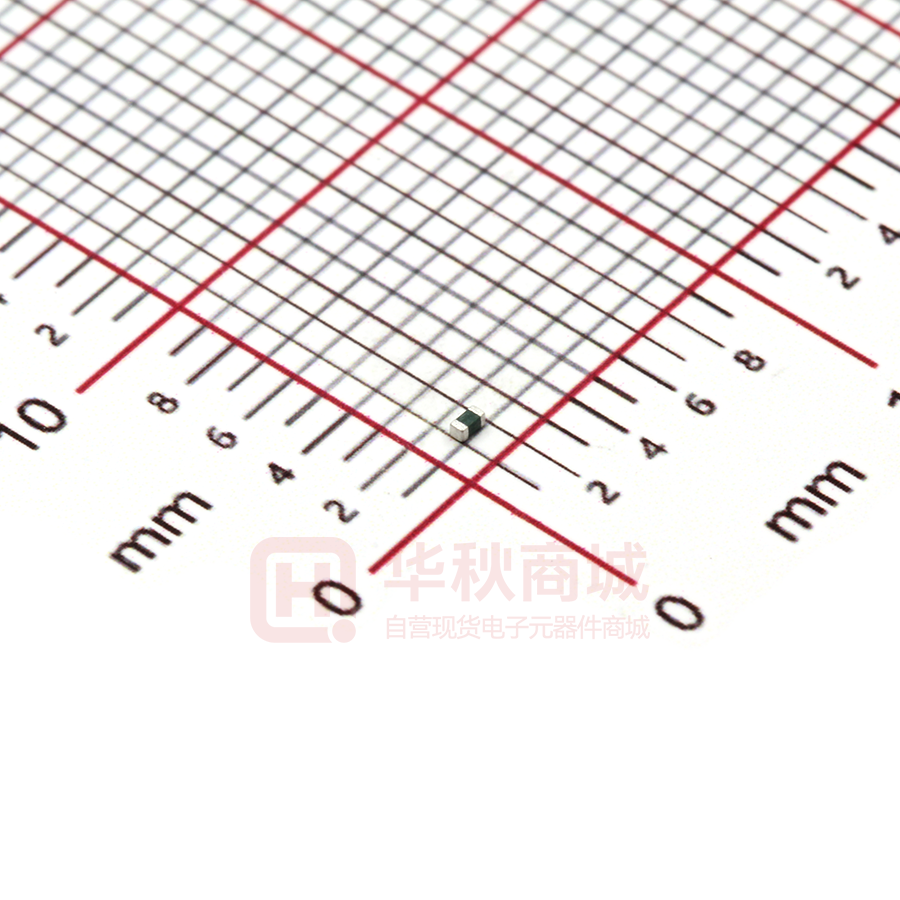

BESDU0402-14

BESDU0402-xx Polymer ESD Suppressors BESDU0402-xx Overview ROHS Features The Chip ESD-Suppressor is specially designed to  0402inch/ 1005mm foot print protect sensitive electronics from the threat of the  Ideal ESD protection for high frequency, low electrostatic discharge (ESD). The product reacts almost voltage applications. instantly to the transient voltage and effectively clamps it  Exceeds testing requirements outlined to the low voltage for the duration of the ESD transient. inIEC 61000-4-2 The product uses voltage variable polymers that  Ultra low capacitance (0.15pFtyp.) inherently produce low capacitance and very low leakage  Very low leakage current current. Thus the device is virtually invisible to the circuit  Fast response time during  Bi-directional normal operational mode. It is especially transparent to the high-speed digital circuits due to the  Surface mount high off-state impedance and low capacitance. Signals  RoHS compliant for global applications. are not distorted or disrupted as shown by extensive testing. Using the ESD-Suppressor ESD protection, devices maintain signal integrity of high- speed data signals while protecting the circuit from ESD. The nature of the material creates a bi- directional part, which means Applications  High Speed Data Ports ( USB 2.0, IEEE 1394 )  Computers & Peripherals ( Cell phone, PDA, HDTV, DVD players ) that only one device per surge path is required to provide complete ESD protection regardless of the surgepolarity. Electrical Parameters (Tamb=25℃) Trigger Voltage(Vv) Vv=±30% Clamping Voltage (Vc) Part Number Working Voltage (Vdc) BESDU0402-05 05V 100V 30V 0.15pF
