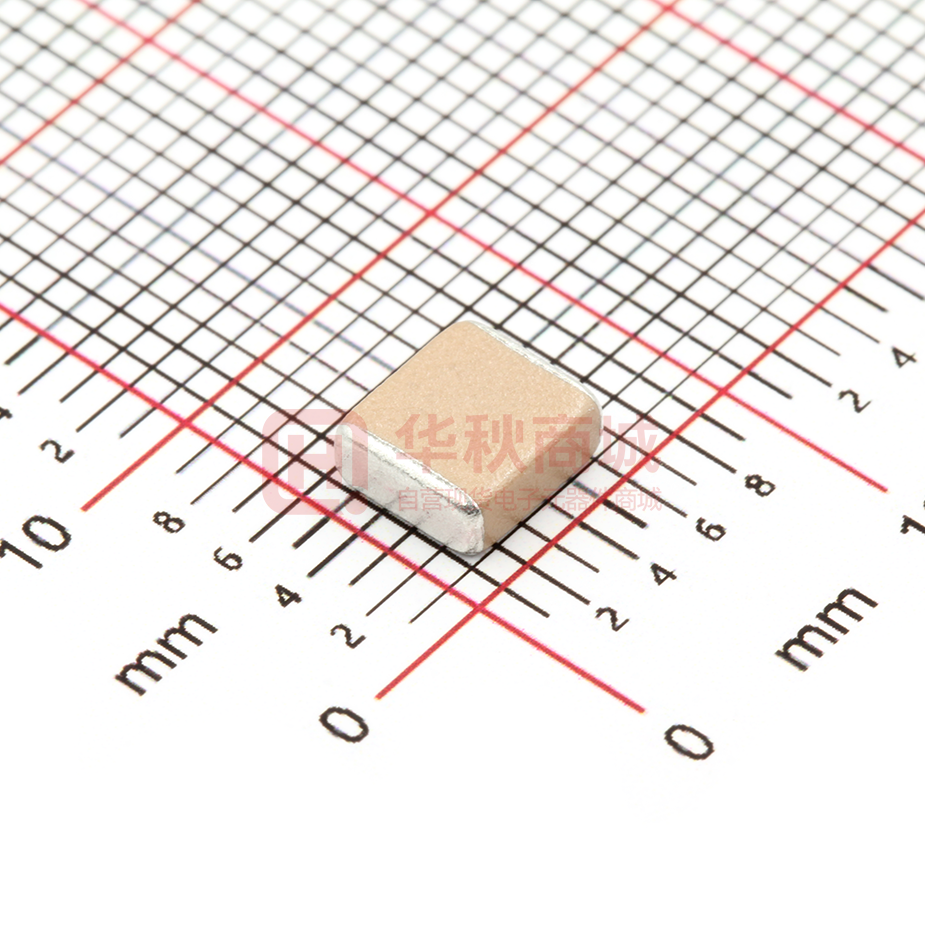

FV55X103K202EGG

信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Tel.：886-3-3224471 Fax：886-3-3212216 Messrs.： ： 一般共用 Date： ： APPROVAL SHEET Product Name ： High-Voltage Multilayer Ceramic Chip Capacitors Part No. ： FV Series Description ： Size 0805~2225, C0G/X7R, 1000Vdc to 4000Vdc PREPARED BY APPROVED BY 信昌電子陶瓷股份有限公司 PROSPERITY DIELECTRICS CO., LTD. 桃園縣蘆竹鄉南山路二段 220-1 號 Tel: 03-322-4471 ext: Contactor: http://www.pdc.com.tw Fax: 03-322-5231 / 03-321-2215 Mobile: 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Tel.：886-3-3224471 Fax：886-3-3212216 SPECIFICATION FOR Product Name ： High-Voltage Multilayer Ceramic Chip Capacitors Part No. ： FV Series Description ： Size 0805~2225, C0G/X7R, 1000Vdc to 4000Vdc SPEC. No. ：FV-000-001-06 DATE ： DRAWN BY CHECEKED BY APPROVED BY Yvens Chou Yvens Chou Ryan Chen 1. INTRODUCTION PDC FV Series green type capacitors are manufactured by using environmental friendly material without lead or cadmium. These capacitors feature series connection of multi-layer capacitor units in a MLCC to realize high voltage performance. This special design can distribute voltage gradients throughout the entire capacitor, so as to prevent short circuit failure. It is a safety design for LCD back-lighting inverter application. 2. FEATURES 3. APPLICATIONS a. Special interior design offers high voltage rating in a given case size. b. High reliability and stability. c. RoHS compliant. a. b. c. d. e. f. DC to DC converter. High voltage coupling/DC blocking. Back-lighting inverters. LAN/WLAN interface. Modem. Power supplies. 4. HOW TO ORDER FV PDC Family Table 1 31 X Size 103 K 102 Rated Voltage Table 6 Dielectric Capacitance Tolerance Table 2 Table 3 Table 4 Table 5 E C G Control Code Table 9 Packaging Thickness Table 7 Table 1 PDC Family Code Description Code Description Code Description Code Description FV High voltage application with ≥1KVdc 6R3 6.3VDC 201 200VDC 152 1500VDC 100 10VDC 251 250VDC 202 2000VDC 160 250 500 101 16VDC 25VDC 50VDC 100VDC 401 501 631 102 400VDC 500VDC 630VDC 1000VDC 302 402 502 602 3000VDC 4000VDC 5000VDC 6000VDC Table 2 Table 6 Table 8 Size Code Description Code Description Code Description 15 18 0402 (1005) 0603 (1608) 32 42 1210 (3225) 1808 (4520) 52 55 2211 (5728) 2220 (5750) 21 0805 (2012) 43 1812 (4532) 56 2225 (5763) 31 1206 (3216) 46 1825 (4563) Rated Voltage Table 7 Packaging Type Code Table 3 Dielectric Material Characteristics Code Description Code Description N B C0G X5R X F X7R Y5V Table 4 Description B E K L Capacitance Rule Code Code Bulk Tape and 7” Reel, Embossed Tape Tape and 10” Reel, Embossed Tape Tape and 13” Reel, Embossed Tape Table 8 T P D G Description Tray package Tape and 7” Reel, Paper Tape Tape and 10” Reel, Paper Tape Tape and 13” Reel, Paper Tape Thickness Description Code Description Code Description Code Description Code Description Code Description R47 0R5 100 0.47pF 0.5pF 100=10x100=10pF 102 104 106 102=10x102=1000pF 104=10x104=100nF 106=10x106=10µF A B C 0.60 ± 0.10 mm 1.25 ± 0.20 mm 1.25 ± 0.10 mm 0.50 ± 0.20 mm Q R S 0.50 +0.02/-0.05 mm 0.8 + 0.15/-0.10 mm I J K D 1.40 ± 0.15 mm L 0.30 ± 0.03 mm T 0.85 ± 0.10 mm E F G H 1.60 ± 0.20 mm M N O P 0.95 ± 0.10 mm U V X Z 0.50 ± 0.10 mm Table 5 Tolerance Code Description Code Description Code Description A B ±0.05 pF ±0.10 pF I J -10% ~ 0% ±5 % Q Z ±0.03 pF -20% ~ +80% C ±0.25 pF K ±10 % D F G H ±0.50 pF ±1 % ±2 % ±3 % L M N P 0% ~ +10% ±20 % -5% ~ +10% ±0.02 pF 2.00 ± 0.20 mm 2.50 ± 0.30 mm 2.80 ± 0.30 mm Table 9 of 17 3.50 ± 0.20 mm 1.60 +0.3/-0.10 mm Special Control Code Description G Q RoHS Compliant Surface Coating (size 1206~2225) No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. 1 0.50 ± 0.05 mm Code Prosperity Dielectrics Co., Ltd. Page 1.15 ± 0.15 mm http://www.pdc.com.tw SPEC. No.： ：FV-000-001-06 3.10 ± 0.30 mm 0.80 ± 0.07 mm 0.20 ± 0.02 mm 0.80 ± 0.10 mm 0.25 ± 0.03 mm 5. EXTERNAL DIMENSIONS Size Inch (mm) L (mm) W (mm) Code / T (mm) MB (mm) 0805(2012) 2.10±0.20 1.25±0.20 0.50±0.20 1206(3216) 3.30±0.30 1.60±0.20 0.60±0.20 1210(3225) 3.30±0.40 2.50±0.30 0.75±0.35 1808(4520) 4.50 +0.50/-0.30 2.00±0.25 0.75±0.35 1812(4532) 4.50 +0.50/-0.30 3.20±0.30 1825(4563) 4.50 +0.50/-0.30 6.30±0.40 2211(5728) 5.70±0.40 2.80±0.30 0.85±0.35 2220(5750) 5.70±0.40 5.00±0.40 0.85±0.35 2225(5763) 5.70±0.40 6.30±0.40 0.85±0.35 L T See No.4 Reference Table 8 0.75±0.35 W 0.75±0.35 MB MB Fig. 5.1 The outline of MLCC 6. GENERAL ELECTRICAL DATA Dielectric Size Rated voltage (WVDC) Capacitance range* Capacitance tolerance Tan δ Capacitance & Tan δ Test condition C0G 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225 X7R 0805, 1206, 1210, 1808, 1812, 1825, 2211, 2220, 2225 1000V, 1500V, 2000V, 3000V, 4000V 1000V, 1500V, 2000V, 3000V, 4000V 1.5pF ~ 12nF 100pF ~ 390nF Reference to Table 5 Reference to Table 5 Cap. Rang Cap.1000pF 1.0±0.2Vrms, 1.0KHz±10% Insulation resistance at Ur Operating temperature Capacitance characteristic Termination 1.0±0.2Vrms, 1.0kHz±10%, at 25°C ambient temperature ≥100GΩ or RxC≥500Ω-F, whichever is smaller ≥10GΩ or RxC≥100Ω-F, whichever is smaller -55°C to +125°C ±30ppm/°C ±15% Cu(or Ag)/Ni/Sn (lead-free termination) Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Page 2 of 17 http://www.pdc.com.tw SPEC. No.： ：FV-000-001-06 7. CAPACITANCE RANGE 7-1. C0G Dimension Cap.(pF) code 1.5 1R5 1.8 1R8 2.2 2R2 2.7 2R7 3.3 3R3 3.9 3R9 4.7 4R7 5.0 5R0 5.6 5R6 6.8 6R8 8.2 8R2 10 100 12 120 15 150 18 180 22 220 27 270 33 330 39 390 47 470 56 560 68 680 82 820 100 101 120 121 150 151 180 181 220 221 270 271 330 331 390 391 470 471 560 561 680 681 820 821 1000 102 1200 122 1500 152 1800 182 2200 222 2700 272 3300 332 3900 392 0805 1000V C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C 1206 1000V 1500V 2000V X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X M M X M M M M M M C C M C C C C C C C C C E E C E E E E E E E E E E E E E E E E E E E E E E E E E 3000V E E E E E E E E E E E E 1210 1000V 1500V 2000V 3000V M M M M M M M M M M M M C C C C E E E E E E E E E E F G G G G G Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Page 3 of 17 M M M M M M M M M C C C C C E E E E E E E E E E F F G G M M M M M M M M M C C C C C E E E E E E E E E E F F G G F F F F F F F F F F F F F F F F F G http://www.pdc.com.tw SPEC. No.： ：FV-000-001-06 7. CAPACITANCE RANGE(Con.) 7-1. C0G Dimension 1808 1812 1825 Cap.(pF) code 1000V 1500V 2000V 3000V 1000V 1500V 2000V 3000V 1000V 1500V 2000V 3000V 1.5 1R5 1.8 1R8 2.2 2R2 C C C C 2.7 2R7 C C C C 3.3 3R3 C C C C 3.9 3R9 C C C C 4.7 4R7 C C C C 5.0 5R0 C C C C 5.6 5R6 C C C C 6.8 6R8 C C C C 8.2 8R2 C C C C 10 100 C C C C C C C C F F F F 12 120 C C C C C C C C F F F F 15 150 C C C C C C C C F F F F 18 180 C C C C C C C C F F F F 22 220 C C C C C C C C F F F F 27 270 C C C C C C C C F F F F 33 330 C C C C C C C C F F F F 39 390 C C C C C C C C F F F F 47 470 C C C C C C C C F F F F 56 560 C C C C C C C C F F F F 68 680 C C C C C C C C F F F F 82 820 C C C C C C C C F F F F 100 101 C C C F C C C C F F F F 120 121 C C C F C C C C F F F F 150 151 C F F F C C C C F F F F 180 181 C F F F C C C F F F F F 220 221 C F F F C C C F F F F F 270 271 F F F F C F F F F F F F 330 331 F F F F C F F F F F F F 390 391 F F F F C F F F F F F F 470 471 F F F F F F F F F F F F 560 561 F F F F F F F F F F F F 680 681 F F F F F F F F F F G 820 821 F F F F F F G F F F G 1000 102 F F F F F F G F F F G 1200 122 F F F F F F F F F G 1500 152 F F F F F F F G G G 1800 182 F F F F F F F G G G 2200 222 F F F F F G G G 2700 272 F F G G F G G G 3300 332 F F G G F G G 3900 392 G G G G 4700 472 G G G G 5600 562 G G G G 6800 682 G G G 8200 822 G G G 10000 103 G 12000 123 G Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Page 4 of 17 http://www.pdc.com.tw SPEC. No.： ：FV-000-001-06 7. CAPACITANCE RANGE(Con.) 7-1. C0G Dimension 2220 2225 Cap.(pF) code 1000V 1500V 2000V 3000V 4000V 1000V 1500V 2000V 3000V 4000V 1.5 1R5 1.8 1R8 2.2 2R2 2.7 2R7 3.3 3R3 3.9 3R9 4.7 4R7 5.0 5R0 5.6 5R6 6.8 6R8 8.2 8R2 10 100 F F F F F F F F 12 120 F F F F F F F F 15 150 F F F F F F F F 18 180 F F F F F F F F 22 220 F F F F F F F F 27 270 F F F F F F F F F F 33 330 F F F F F F F F F F 39 390 F F F F F F F F F F 47 470 F F F F F F F F F F 56 560 F F F F F F F F F F 68 680 F F F F F F F F F F 82 820 F F F F F F F F F F 100 101 F F F F F F F F F F 120 121 F F F F F F F F F F 150 151 F F F F F F F F F F 180 181 F F F F F F F F F F 220 221 F F F F F F F F F F 270 271 F F F F G F F F F G 330 331 F F F G G F F F F 390 391 F F F G F F F F 470 471 F F F G F F F F 560 561 F F F G F F F F 680 681 F F F G F F F F 820 821 F F F G F G G G 1000 102 F F F G F G G G 1200 122 G G G G F G G G 1500 152 G G G G F G G G 1800 182 G G G G F G G G 2200 222 G G G G F G G G 2700 272 G G G G F G G G 3300 332 G G G F G G G 3900 392 G G G F G G 4700 472 G G G F G G 5600 562 G G G G G G 6800 682 G G G G G G 8200 822 G G G G G G 10000 103 G G G G 12000 123 G G Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Page 5 of 17 http://www.pdc.com.tw SPEC. No.： ：FV-000-001-06 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension Cap.(pF) code 100 101 120 121 150 151 180 181 220 221 270 271 330 331 390 391 470 471 560 561 680 681 820 821 1000 102 1200 122 1500 152 1800 182 2200 222 2700 272 3300 332 3900 392 4700 472 5600 562 6800 682 8200 822 10000 103 12000 123 15000 153 18000 183 22000 223 27000 273 33000 333 39000 393 47000 473 56000 563 68000 683 0805 1000V X X X X X X X X X X X X X X C C C C C C C C C C 1000V C C C C C C C C C C C C C C C C C C C C C C C C C E E E E 1206 1500V C C C C C C C C C C C C C E E E E E E E E 2000V C C C C C C C C C C C C C E E E E E E 1000V 1210 1500V C C C C C C C C C C C C C C C E E E E E E E E E E E E F G G G E E E E E E E E E F F F F G G G G G G G Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Page 6 of 17 2000V E E E E E E E E E F F F F G G G G G G G 1000V 1500V 1808 2000V C C C C C C C C C C C C C C C C C C C F F F F F F F F F F F F F C C C C C C C C C C C F F F F F F F F F F C C C C C C C C C C C F F F F F F F F F F http://www.pdc.com.tw SPEC. No.： ：FV-000-001-06 3000V 4000V C C C C F F F F F F F F F F F F F F F F F F F F F F 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension Cap.(pF) code 270 271 330 331 390 391 470 471 560 561 680 681 820 821 1000 102 1200 122 1500 152 1800 182 2200 222 2700 272 3300 332 3900 392 4700 472 5600 562 6800 682 8200 822 10000 103 12000 123 15000 153 18000 183 22000 223 27000 273 33000 333 39000 393 47000 473 56000 563 68000 683 82000 823 100000 104 120000 124 150000 154 180000 184 220000 224 270000 274 330000 334 1000V C C C C C C C C C C C C C C C C C C C E F F G G G G G G G G G G 1500V C C C C C C C C C C E E E F F F G G G G 1812 2000V C C C C C C C C C C E E E F F F G G G G 3000V E E E E E F F F F F G G G G G G 4000V F F F F F F F F G G G Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Page 7 of 17 1000V 1500V 1825 2000V F F F F F F F F F F F F F F F F F F F F F F F G G H H H H H H F F F F F F F F F F F F F G G G G H H H H H F F F F F F F F F F F F F G G G G H H H H H 3000V http://www.pdc.com.tw SPEC. No.： ：FV-000-001-06 F F F F F F F F F G G G G H H H 4000V F F F F F F F F G G G 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension Cap.(pF) code 270 271 330 331 390 391 470 471 560 561 680 681 820 821 1000 102 1200 122 1500 152 1800 182 2200 222 2700 272 3300 332 3900 392 4700 472 5600 562 6800 682 8200 822 10000 103 12000 123 15000 153 18000 183 22000 223 27000 273 33000 333 39000 393 47000 473 56000 563 68000 683 82000 823 100000 104 120000 124 150000 154 180000 184 220000 224 270000 274 330000 334 390000 394 2211 3000V 4000V F F F F F F F F F F F F F F F F G G G G G G G G G 1000V 1500V 2220 2000V F F F F F F F F F F F F F F F F F F F F F F G G G G H H H H H H F F F F F F F F F F F G G G G H H H H H H H F F F F F F F F F F F G G G G H H H H H H H 3000V F F F F F F F F F F G G G H H H Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Page 8 of 17 4000V F F F F F F F F G G G 1000V 1500V F F F F F F F F F F F F F F F F F F F F F F F F G H H H H H H H F F F F F F F F F F F F F G G G G G G G G G G G G 2225 2000V http://www.pdc.com.tw SPEC. No.： ：FV-000-001-06 F F F F F F F F F F F F F G G G G G G H H H 3000V F F F F F F F F F G G G G G G H 4000V F F F F F F F F G G G 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS No. 1. Item Visual and Dimensions Test Condition Requirements * No remarkable defect. * Dimensions to confirm to individual specification sheet. --- 2. Capacitance Q/D.F. 3. (Dissipation Factor) * Shall not exceed the limits given in the detailed spec. * Class I : C0G Cap.≤1000pF, 1.0±0.2Vrms, 1MHz±10%. Cap.>1000pF, 1.0±0.2Vrms, 1KHz±10%. * Class II : X7R 1.0±0.2Vrms, 1KHz±10%. Dielectric Rated Vol.(V) Class I (C0G) All Class II (X7R) All Q/D.F. Remark Q≥1000 Cap.≥30pF Q≥400+20C Cap.500 500Vdc 60 sec. Class I ≥100GΩ or RxC≥500Ω-F, whichever is smaller Class II ≥10GΩ or RxC≥100Ω-F, whichever is smaller * Solder temperature : 235±5°C for (0603~1210). Solderability * Solder temperature : 245±5°C for (1808~2225). * Dipping time : 2±0.5 sec. Dielectric Strength Within ±30ppm/°C Apply Voltage Rated Vol.(V) 7. Capacitance Change Rated Vol.(V) Insulation 5. Resistance 6. T.C. C0G * 75% min. coverage of all metalized area. Condition 630≤V≤3000V 1.2 times of UR 3000
